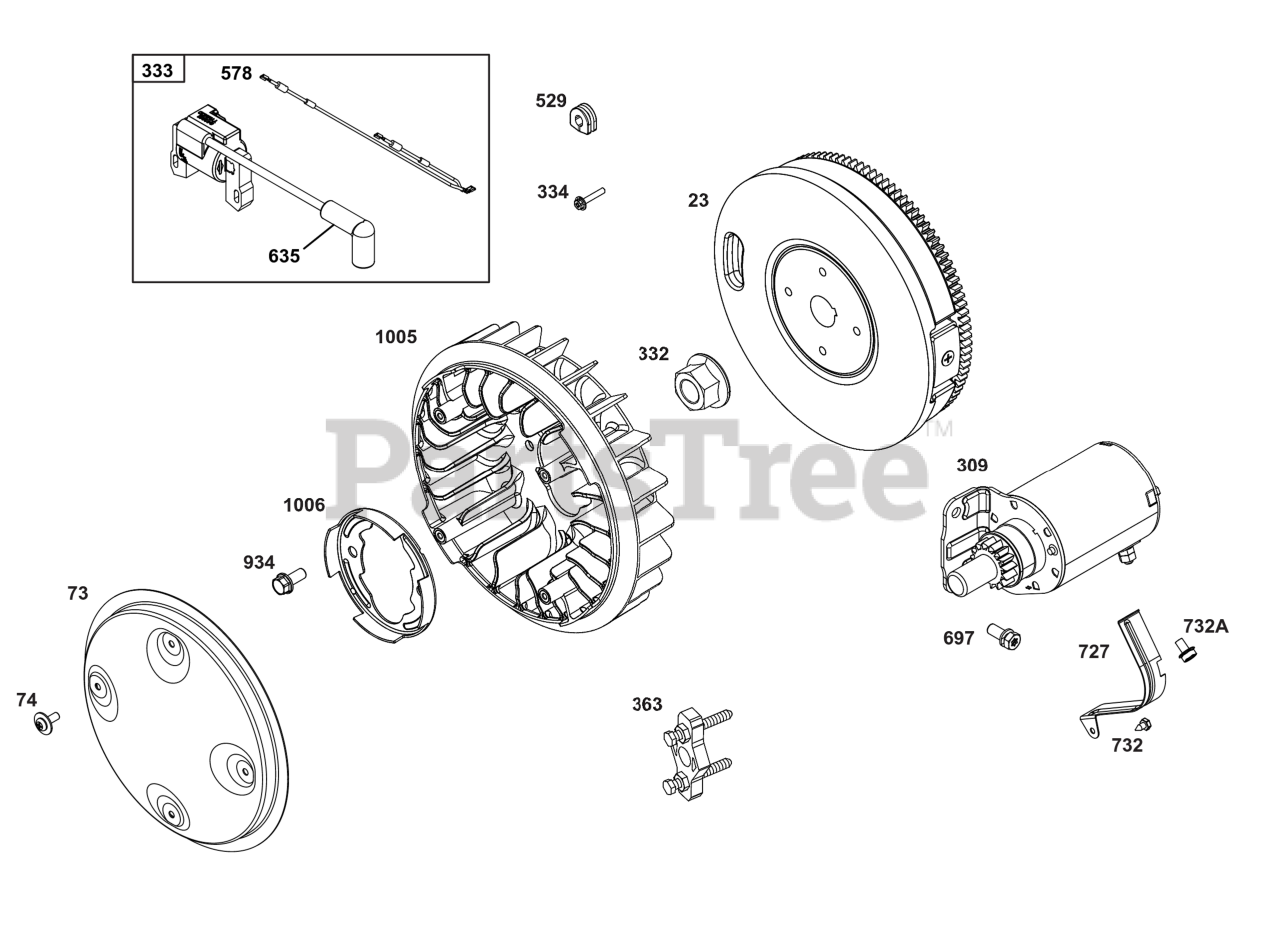

356447-0053-G1 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 841050

FLYWHEEL ASSY

$274.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841440

SCREEN, Rotating

$37.99

$

In Stock, only 1 left!

0

74

Briggs & Stratton 841441

SCREW
(Superseded to 84007750)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 844717

MOTOR, Starter

$90.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845606

ARMATURE, Magneto
(Superseded to 84003819)

$71.99

$

In Stock, Qty 12

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature) (M6x10mm)

$3.49

$

In Stock, Qty 11

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

529

Briggs & Stratton 690744

GROMMET

$7.49

$

Usually ships in 2-12 days

0

578

WIRE ASSEMBLY

$

$

Not available

697

Briggs & Stratton 691902

SCREW

Note: (Drive Cap)

$3.49

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 841313

COVER-STARTER DRIVE

$16.99

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 690688

SCREW

Note: (Starter Drive Cover)

$3.49

$

Usually ships in 2-12 days

0

732A

Briggs & Stratton 841233

SCREW

Note: (Starter Drive Cover)

$3.49

$

In Stock, only 2 left!

0

934

Briggs & Stratton 692062

SCREW

Note: (Fan Retainer)

$3.49

$

In Stock, only 1 left!

0

1005

Briggs & Stratton 841439

FAN, Flywheel

$34.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

RETAINER, Fan

$10.99

$

Usually ships in 2-12 days

0
