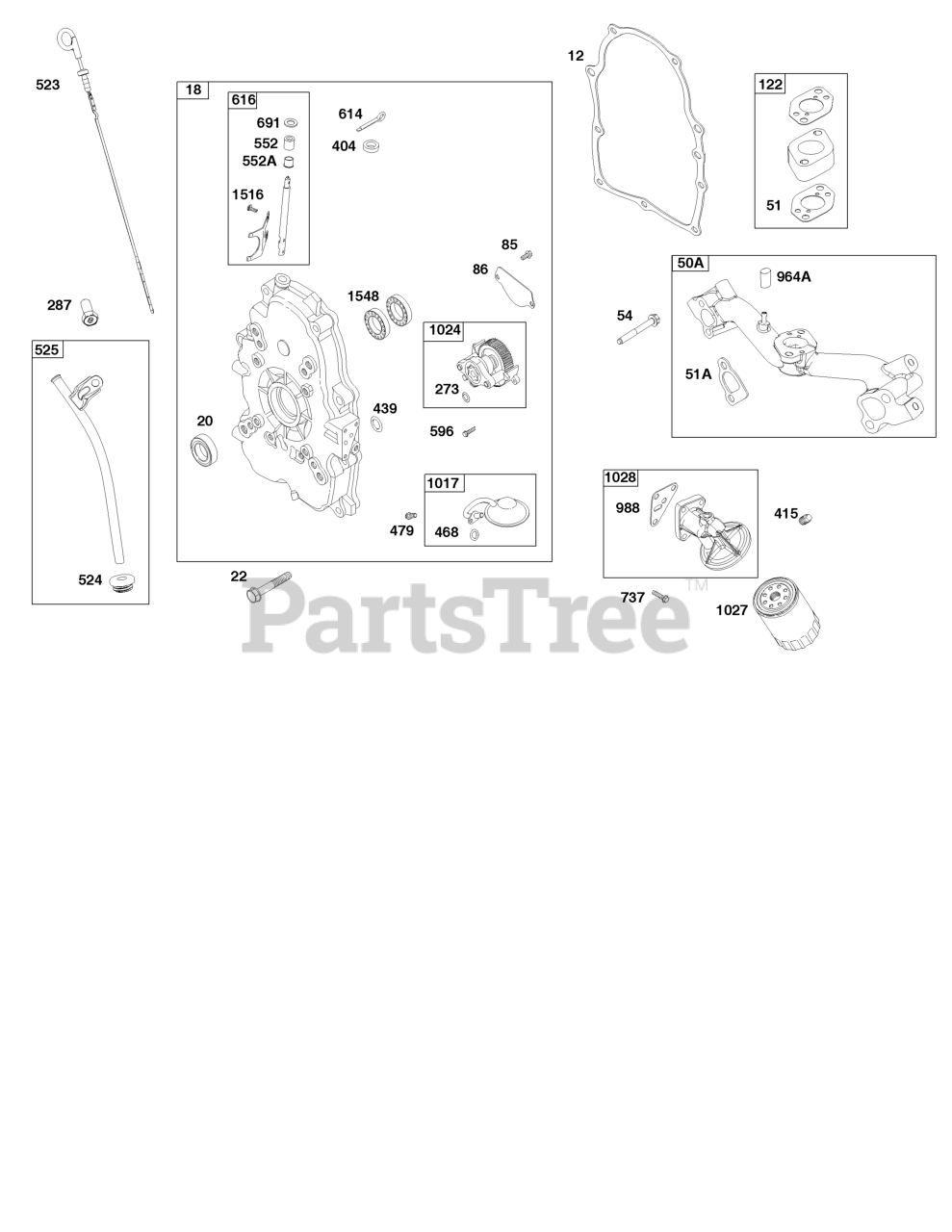

356447-0613-B1 - Briggs & Stratton Horizontal Engine Crankcase Cover, Intake Manifold Parts Diagram

Horizontal Engine

Crankcase Cover, Intake Manifold Parts Diagram

  • Title

12

Briggs & Stratton 846487

Gasket-Crankcase

$41.99

$

In Stock, Qty 9

0

18

Briggs & Stratton 844588

Cover-Crankcase

$247.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 18

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

In Stock, Qty 7

0

50A

Briggs & Stratton 844034

Manifold-Intake

$159.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 691694

Gasket-Intake

$2.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 692035

Gasket-Intake

$3.49

$

In Stock, Qty 20+

0

54

Briggs & Stratton 846604

Screw

Note: (Intake Manifold)

$5.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 841233

SCREW

Note: (Gear Cover)

$3.49

$

In Stock, Qty 6

0

86

Briggs & Stratton 690745

COVER, Gear

$6.49

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 846579

SPACER-CARBURETOR

$7.49

$

Usually ships in 2-12 days

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump Screen)

$5.99

$

In Stock, Qty 7

0

287

Briggs & Stratton 806660

Screw

Note: (Dipstick Tube)

$3.99

$

In Stock, only 1 left!

0

404

Briggs & Stratton 690704

Washer-Sealing

Note: (Governor Crank)

$5.99

$

In Stock, only 4 left!

0

415

Briggs & Stratton 794903

PLUG

$5.49

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$5.99

$

In Stock, only 1 left!

0

479

Briggs & Stratton 807084

SCREW

Note: (Oil Pump Screen)

$3.49

$

In Stock, Qty 17

0

523

Briggs & Stratton 693175

Dipstick

$26.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 693172

Seal-Dipstick Tube

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 5

0

525

Briggs & Stratton 693174

Tube-Dipstick

$21.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 690701

Bushing-Governor Crank

$7.99

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 806686

Bushing-Governor Crank

$8.49

$

Usually ships in 2-12 days

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump)

$3.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 691550

PIN, Cotter

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 806685

Crank-Governor

$30.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 842826

Seal-Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

737

Briggs & Stratton 690679

Screw

Note: (Oil Filter Adapter)

$3.49

$

Usually ships in 2-12 days

0

964A

Briggs & Stratton 807468

Cap-Carburetor

$9.99

$

Usually ships in 2-12 days

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, only 4 left!

0

1017

Briggs & Stratton 690900

Screen-Oil Pump

$29.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 843825

Pump-Oil

$108.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

Filter-Oil

$14.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 808235

Adapter-Oil Filter

$78.99

$

Usually ships in 2-12 days

0

1516

Briggs & Stratton 846459

SCREW

Note: (Governor Crank)

$3.49

$

Usually ships in 2-12 days

0

1548

Briggs & Stratton 843827

Bearing-Ball

Note: (Crankcase Cover/Sump)

$36.99

$

In Stock, only 1 left!

0
