356447-0613-B5 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

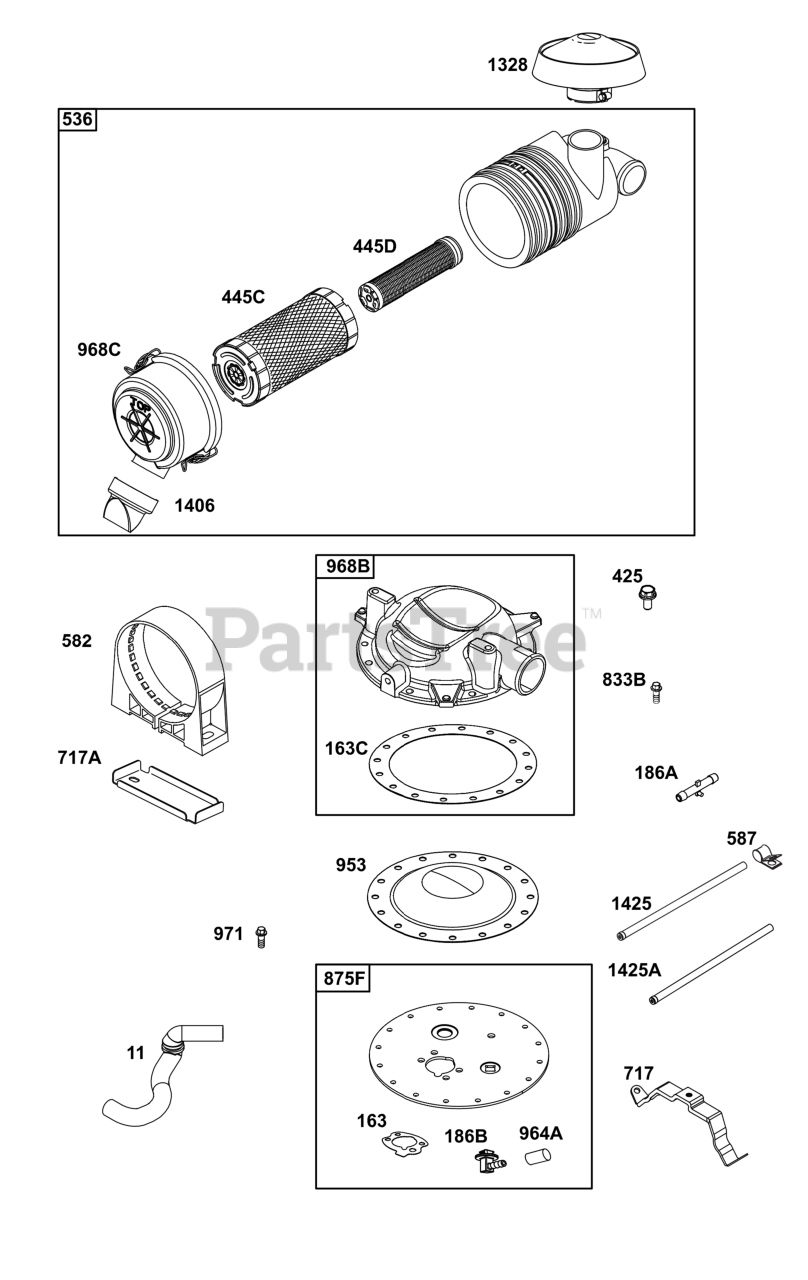

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 844976

TUBE, Breather

$28.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

$

$

Not available

163C

Briggs & Stratton 841823

GASKET, Air Cleaner

Note: (Air Cleaner)

$6.99

$

In Stock, only 1 left!

0

186A

Briggs & Stratton 845121

CONNECTOR, Hose

$6.99

$

Usually ships in 2-12 days

0

186B

Briggs & Stratton 845141

CONNECTOR, Hose

$11.99

$

In Stock, only 2 left!

0

425

Briggs & Stratton 847281

SCREW
(Superseded to 691593)

$3.99

$

In Stock, Qty 5

0

445C

Briggs & Stratton 841497

FILTER, A/C Cartridge

$34.99

$

In Stock, Qty 20+

0

445D

Briggs & Stratton 821136

FILTER, A/C Cartridge

$35.99

$

In Stock, Qty 14

0

536

Briggs & Stratton 809670

CLEANER, Air

$241.99

$

Usually ships in 2-12 days

0

582

Briggs & Stratton 809878

CLAMP, Air Cleaner

$69.99

$

In Stock, Qty 6

0

587

Briggs & Stratton 807116

CLAMP, Cable

$5.49

$

In Stock, only 1 left!

0

717

Briggs & Stratton 692153

BRACKET, Air Cleaner

$9.49

$

In Stock, only 2 left!

0

717A

Briggs & Stratton 841886

BRACKET, Air Cleaner

$18.99

$

In Stock, only 1 left!

0

833B

Briggs & Stratton 847281

SCREW
(Superseded to 691593)

Note: (Air Cleaner Mounting Strap/Stud) (M6x14mm)

$3.99

$

In Stock, Qty 5

0

875F

Briggs & Stratton 844996

BASE, Air Cleaner
(Superseded to 847245)

$69.99

$

Usually ships in 2-12 days

0

953

Briggs & Stratton 845030

SCREEN, Air Cleaner

$86.99

$

Usually ships in 2-12 days

0

964A

Briggs & Stratton 807468

CAP, Carburetor

$9.99

$

In Stock, only 1 left!

0

968B

Briggs & Stratton 841822

COVER, Air Cleaner

$54.99

$

Usually ships in 2-12 days

0

968C

Briggs & Stratton 842621

COVER, Air Cleaner

$89.99

$

In Stock, only 1 left!

0

971

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body) (M6x14mm)

$3.99

$

In Stock, only 2 left!

0

1328

Briggs & Stratton 809907

CAP, A/C Rain

$63.99

$

In Stock, only 2 left!

0

1406

Briggs & Stratton 842623

VALVE, Debris

$22.99

$

In Stock, only 2 left!

0

1425

Briggs & Stratton 844712

HOSE, Purge Line

$32.99

$

Usually ships in 2-12 days

0

1425A

Briggs & Stratton 845717

HOSE, Purge Line

$32.99

$

Usually ships in 2-12 days

0
