356447-0665-G1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

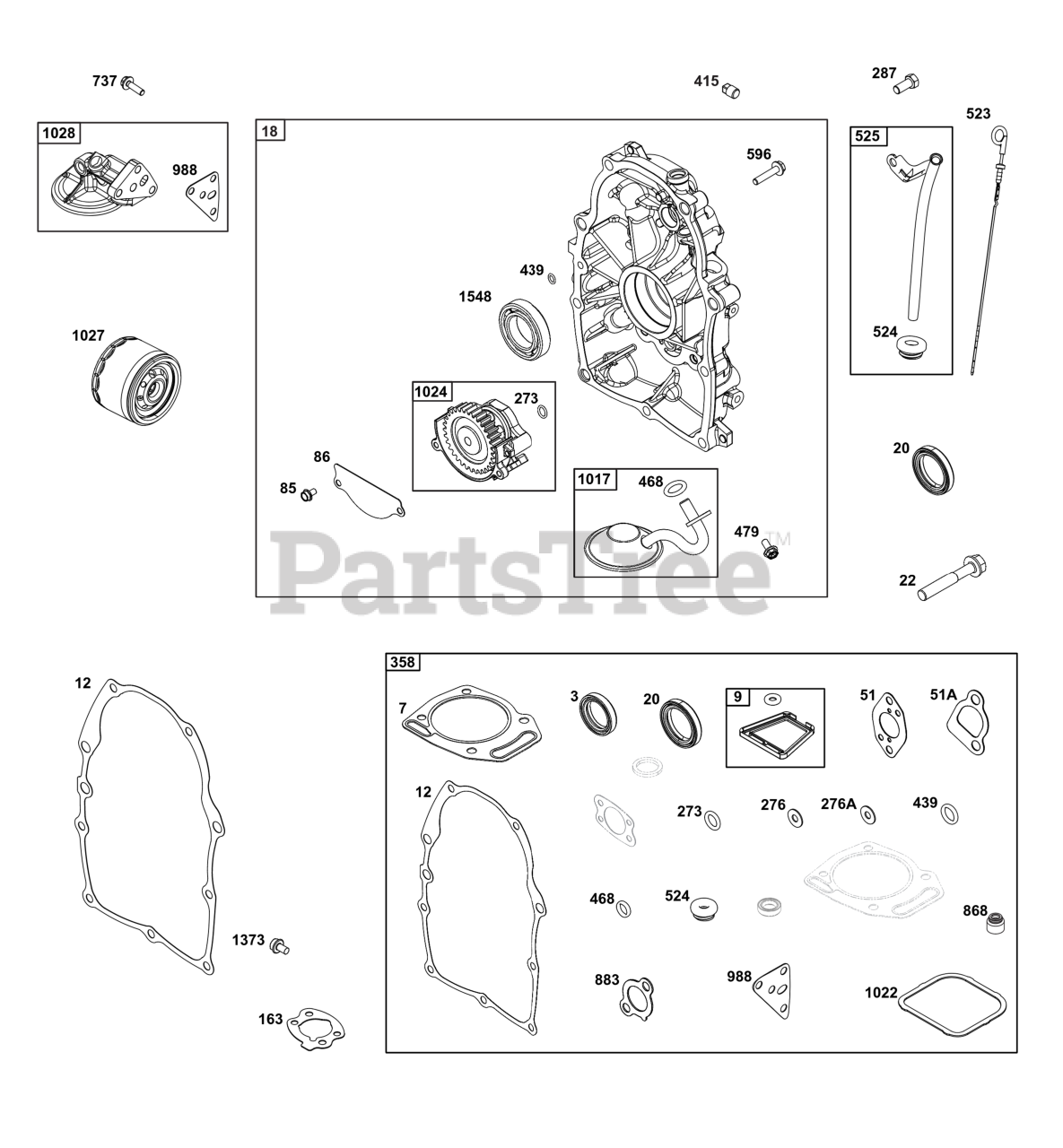

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

9

GASKET, Breather

Note: (Part information located in Cylinder Group.)

$

$

Not available

12

Briggs & Stratton 846487

GASKET, Crankcase

$43.99

$

In Stock, only 4 left!

0

18

Briggs & Stratton 84002117

COVER, Crankcase

$358.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049S

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

85

Briggs & Stratton 841233

SCREW

Note: (Gear Cover)

$3.99

$

In Stock, Qty 14

0

86

Briggs & Stratton 690745

COVER, Gear

$6.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

273

Briggs & Stratton 690681

SEAL, O-Ring

Note: (Oil Pump)

$6.49

$

In Stock, only 2 left!

0

276

WASHER, Sealing

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

276A

WASHER, Sealing

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

287

Briggs & Stratton 692062

SCREW

Note: (Dipstick Tube)

$3.99

$

In Stock, Qty 8

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

415

Briggs & Stratton 794903

PLUG

$5.99

$

In Stock, Qty 8

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$6.49

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 807084

SCREW

Note: (Oil Pump Screen)

$3.99

$

In Stock, only 3 left!

0

523

Briggs & Stratton 693175

DIPSTICK

$25.99

$

In Stock, Qty 7

0

524

Briggs & Stratton 693172

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

In Stock, Qty 16

0

525

Briggs & Stratton 693174

TUBE, Dipstick

$23.99

$

In Stock, only 2 left!

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump)

$4.49

$

In Stock, Qty 12

0

737

Briggs & Stratton 84006523

SCREW

Note: (Oil Filter Adapter)

$3.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

988

Briggs & Stratton 692063

GASKET, Oil Adapter

$4.49

$

In Stock, Qty 15

0

1017

Briggs & Stratton 690900

SCREEN, Oil Pump

$32.99

$

Usually ships in 2-12 days

0

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1024

Briggs & Stratton 843825

PUMP, Oil

$119.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

FILTER, Oil

$14.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 808033

ADAPTER, Oil Filter

$115.99

$

Usually ships in 2-12 days

0

1373

Briggs & Stratton 841233

SCREW

Note: (Oil Cooler Bracket)

$3.99

$

In Stock, Qty 14

0

1548

Briggs & Stratton 843827

BEARING, Ball

Note: (Crankcase Cover/Sump)

$38.99

$

In Stock, only 2 left!

0
