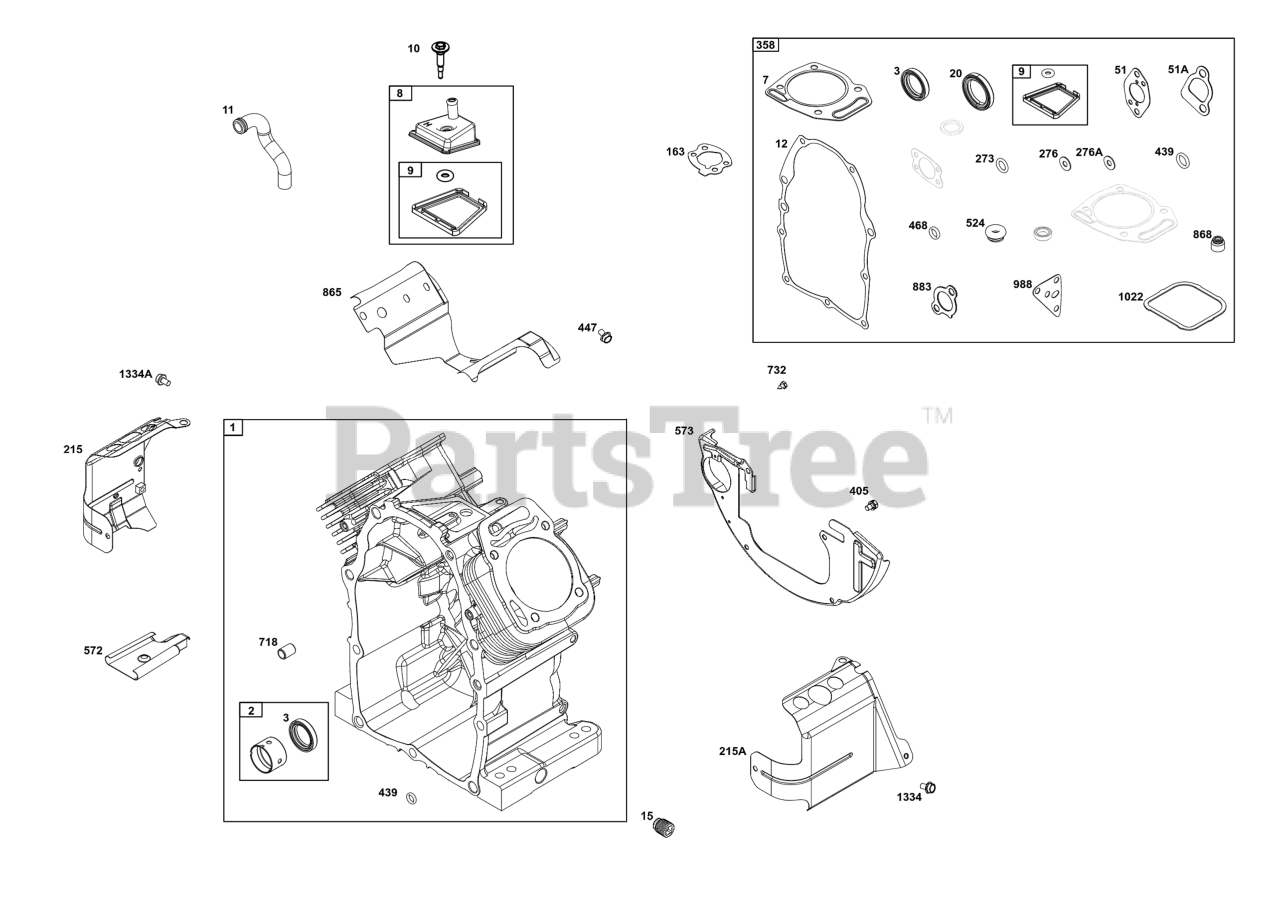

356447-0665-G1 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 84003975

CYLINDER ASSEMBLY

$571.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

KIT, Bushing/Seal

Note: (Magneto Side)

$20.99

$

In Stock, only 4 left!

0

3

Briggs & Stratton 805101S

SEAL, Oil

Note: (Magneto Side)

$5.99

$

In Stock, Qty 9

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

8

Briggs & Stratton 808984

BREATHER ASSEMBLY

$53.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 844986

GASKET, Breather

$8.49

$

In Stock, Qty 9

0

10

Briggs & Stratton 690751

SCREW

Note: (Breather Assembly)

$7.49

$

Usually ships in 2-12 days

0

11

TUBE, Breather

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

15

Briggs & Stratton 691680

PLUG-OIL DRAIN

$5.99

$

In Stock, only 4 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

215

Briggs & Stratton 841183

GUIDE-AIR

$40.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 841182

GUIDE-AIR

$35.99

$

Usually ships in 2-12 days

0

273

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

276

WASHER, Sealing

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

276A

WASHER, Sealing

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

358

Briggs & Stratton 841188

GASKET SET, Engine

Note: (Service Kits may include extra parts not specific to this engine.)

$122.99

$

In Stock, only 1 left!

0

405

Briggs & Stratton 807163

SCREW

Note: (Back Plate)

$3.99

$

In Stock, only 2 left!

0

439

O-RING, Oil Gallery

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

447

Briggs & Stratton 841233

SCREW

Note: (Air Guide Cover)

$3.49

$

In Stock, Qty 6

0

468

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

524

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

572

Briggs & Stratton 690686

BAFFLE-BREATHER

$14.99

$

In Stock, only 1 left!

0

573

Briggs & Stratton 841310

PLATE-BACK

$24.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 806469

PIN-LOCATING

$5.99

$

In Stock, only 2 left!

0

732

Briggs & Stratton 690688

SCREW

$3.49

$

Usually ships in 2-12 days

0

865

Briggs & Stratton 843768

COVER-AIR GUIDE

$39.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

988

GASKET, Oil Adapter

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1334

Briggs & Stratton 841233

SCREW

Note: (Air Guide)

$3.49

$

In Stock, Qty 6

0

1334A

Briggs & Stratton 807084

SCREW

Note: (Air Guide)

$3.49

$

In Stock, Qty 17

0
