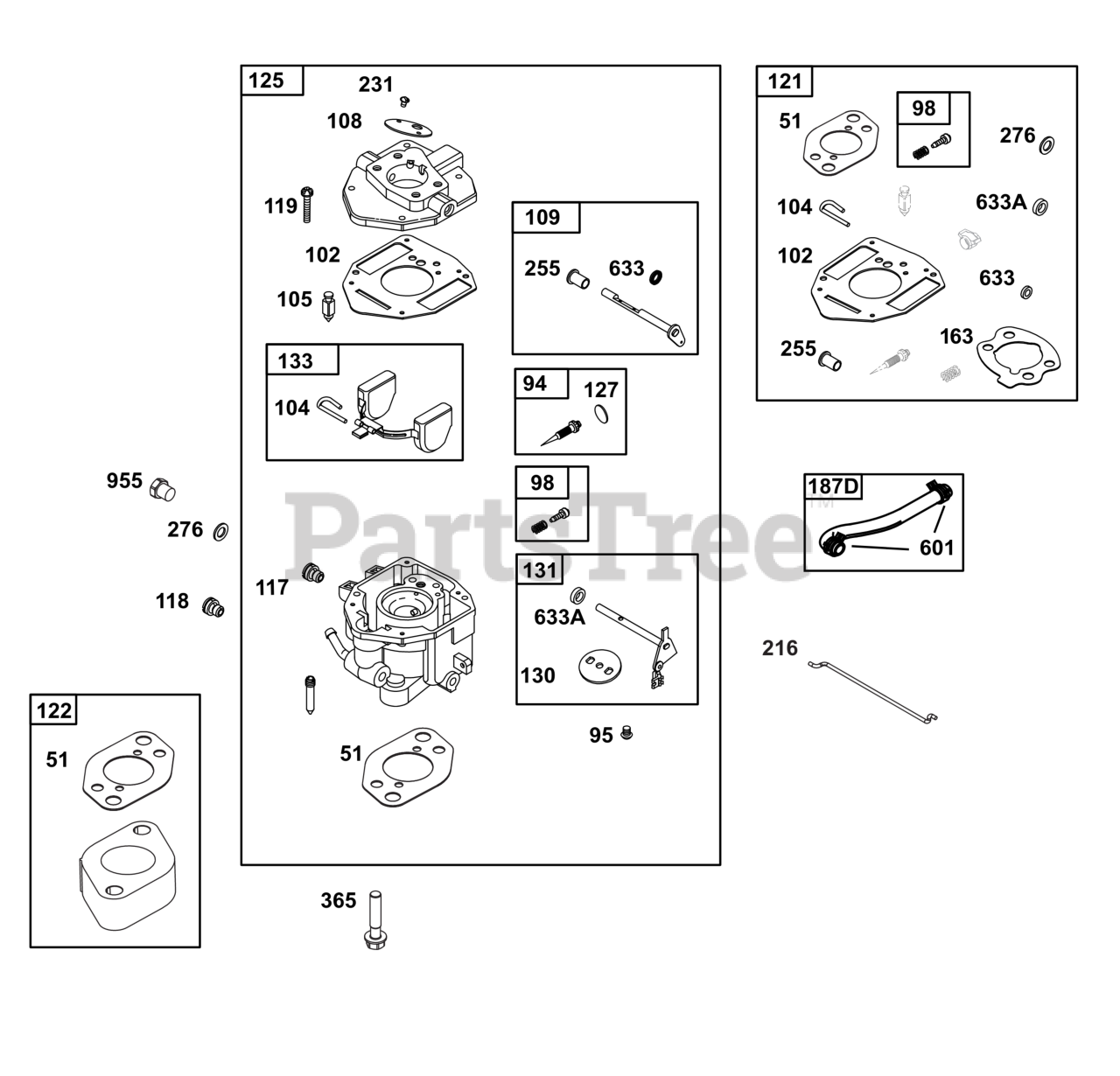

356447-0694-H5 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

94

Briggs & Stratton 847026

KIT, Idle Mixture

$18.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808177

KIT, Idle Speed

$14.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 692077

GASKET, Carburetor Body

$25.99

$

In Stock, Qty 6

0

104

Briggs & Stratton 690723

PIN, Float Hinge

$10.99

$

In Stock, only 2 left!

0

105

Briggs & Stratton 797410

VALVE, Float Needle

$16.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 844989

VALVE, Choke

$9.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 843321

SHAFT, Choke

$52.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 806373

JET, Main

Note: (Standard)

$

$

Not available

118

Briggs & Stratton 842439

JET, Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 690720

SCREW

Note: (Upper Carburetor Body To Lower Carburetor Body)

$3.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 845146

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$138.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 846579

SPACER, Carburetor

$8.49

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 845023

CARBURETOR

$337.99

$

In Stock, only 1 left!

0

127

Briggs & Stratton 847028

PLUG, Welch

$6.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 84003952

VALVE, Throttle

$17.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 845022

KIT, Throttle Shaft

$

$

Not available

133

Briggs & Stratton 843320

FLOAT, Carburetor

$33.99

$

In Stock, only 1 left!

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

187D

LINE, Fuel

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

216

LINK, Choke

$

$

Not available

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

255

Briggs & Stratton 690721

BUSHING, Choke Shaft

$8.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 690724

WASHER, Sealing

$8.49

$

In Stock, Qty 8

0

365

Briggs & Stratton 690711

SCREW

Note: (Carburetor/Throttle Body)

$7.49

$

Usually ships in 2-12 days

0

601

CLAMP, Hose

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$16.99

$

In Stock, only 3 left!

0

633A

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

$6.49

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 690718

SCREW

$5.99

$

Usually ships in 2-12 days
