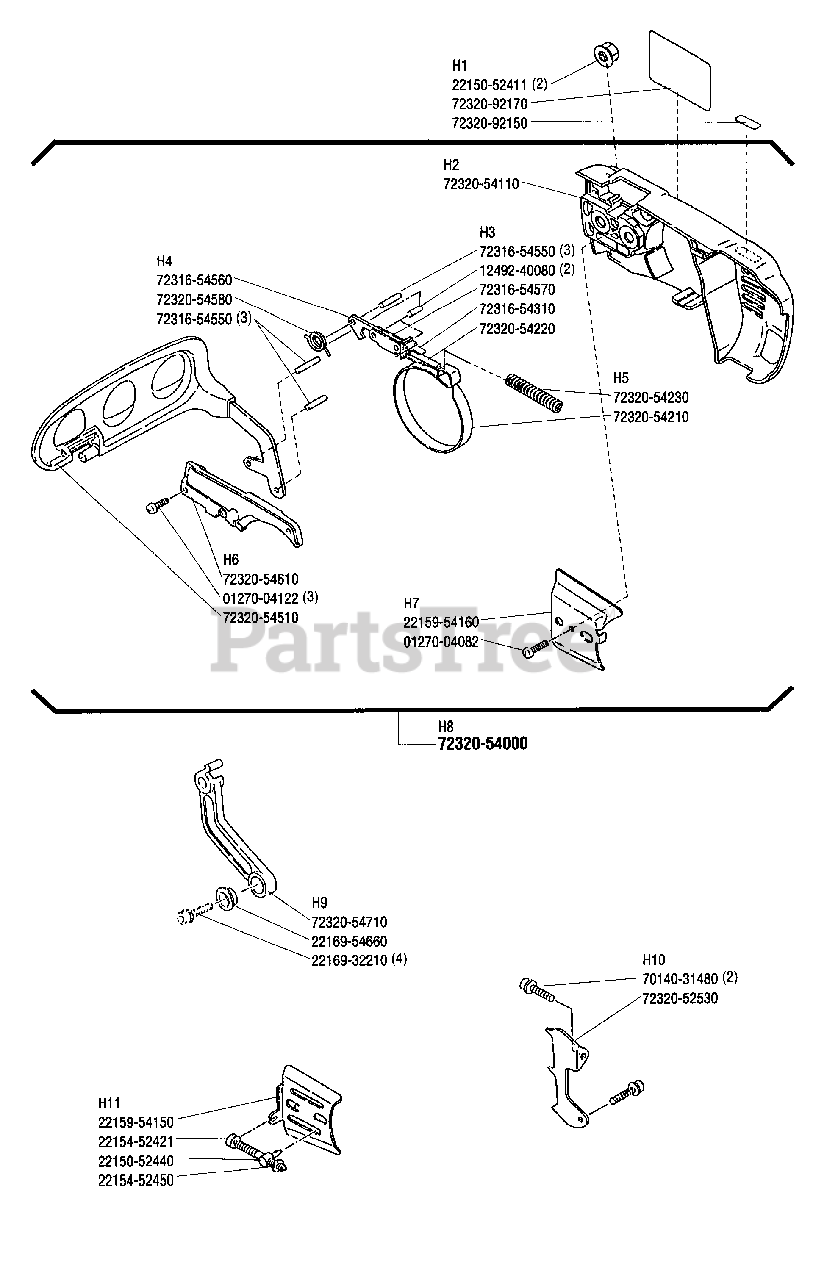

357 - Shindaiwa Chainsaw Clutch Cover Parts Diagram

Chainsaw

Clutch Cover Parts Diagram

  • Title

H1-22150-52411

Echo 22150-52411

NUT
(Superseded to V265000230)

$4.99

$

Usually ships in 2-4 days

0

H1-72320-92150

Echo 72320-92150

LABEL, CAUTION PLATE

$0.99

$

Usually ships in 2-4 days

0

H1-72320-92170

Echo 72320-92170

NAME PLATE C, USE 72320-92171
(Superseded to 72320-92171)

$

$

Not available

H8-72320-54000

Echo 72320-54000

BRAKE ASSY
(Superseded to 72320-54001)

$

$

Not available

H2-72320-54110

Echo 72320-54110

COVER, CLUTCH, USE 72320-54111
(Superseded to 72320-54111)

$21.99

$

Usually ships in 2-4 days

0

H3-12492-40080

Echo 12492-40080

ROLLER
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

H3-72316-54310

Echo 72316-54310

ADJUST PLATE

$0.99

$

In Stock, Qty 8

0

H3-72316-54550

Echo 72316-54550

PIN
(Superseded to 12492-40140)

$1.49

$

Usually ships in 2-4 days

0

H3-72316-54570

Echo 72316-54570

TIE STRAP
(Superseded to C334000150)

$3.99

$

In Stock, only 1 left!

0

H3-72320-54220

Echo 72320-54220

ROD

$6.49

$

Usually ships in 2-4 days

0

H4-72316-54550

Echo 72316-54550

PIN
(Superseded to 12492-40140)

$1.49

$

Usually ships in 2-4 days

0

H4-72316-54560

Echo 72316-54560

LEVER, INNER, USE 22173-54561
(Superseded to 22173-54561)

$2.99

$

Usually ships in 2-4 days

0

H4-72320-54580

Echo 72320-54580

SPRING LEVER

$1.99

$

Usually ships in 2-4 days

0

H5-72320-54210

Echo 72320-54210

BRAKE BAND
(Superseded to C328000150)

$

$

Not available

H5-72320-54230

Echo 72320-54230

SPRING, BRAKE
(Superseded to V450001090)

$3.99

$

Usually ships in 2-4 days

0

H6-01270-04122

Echo 01270-04122

SCREW
(Superseded to 9137404012)

$0.99

$

Usually ships in 2-4 days

0

H6-72320-54510

Echo 72320-54510

LEVER, BRAKE
(Superseded to C320000220)

$42.99

$

Usually ships in 2-4 days

0

H6-72320-54610

Echo 72320-54610

PLATE

$6.99

$

Usually ships in 2-4 days

0

H7-01270-04082

Echo 01270-04082

SCREW

$0.99

$

In Stock, only 1 left!

0

H7-22159-54160

Echo 22159-54160

GUIDE PLATE B
(Superseded to C305000130)

$7.99

$

Usually ships in 2-4 days

0

H9-22169-32210

Echo 22169-32210

BOLT PC
(Superseded to V204000670)

$1.99

$

Usually ships in 2-4 days

0

H9-22169-54660

Echo 22169-54660

SPACER
(Superseded to V356000590)

$4.49

$

Usually ships in 2-4 days

0

H9-72320-54710

Echo 72320-54710

STAY
(Superseded to C519002410)

$4.99

$

Usually ships in 2-4 days

0

H10-70140-31480

Echo 70140-31480

BOLT PC
(Superseded to V203000450)

$1.99

$

In Stock, Qty 6

0

H10-72320-52530

Echo 72320-52530

SPIKE
(Superseded to C304000110)

$5.49

$

Usually ships in 2-4 days

0

H11-22150-52440

Echo 22150-52440

ADJUSTING STUD
(Superseded to C309000110)

$2.49

$

In Stock, Qty 18

0

H11-22154-52421

Echo 22154-52421

SCREW, SLIDE
(Superseded to V253000590)

$1.99

$

In Stock, Qty 9

0

H11-22154-52450

Echo 22154-52450

NUT, PUSH
(Superseded to V260000020)

$0.99

$

Usually ships in 2-4 days

0

H11-22159-54150

Echo 22159-54150

GUIDE PLATE A
(Superseded to C305000170)

$6.99

$

Usually ships in 2-4 days

0
