357 XP - Husqvarna Chainsaw (2011-05) CRANKCASE Parts Diagram

Chainsaw

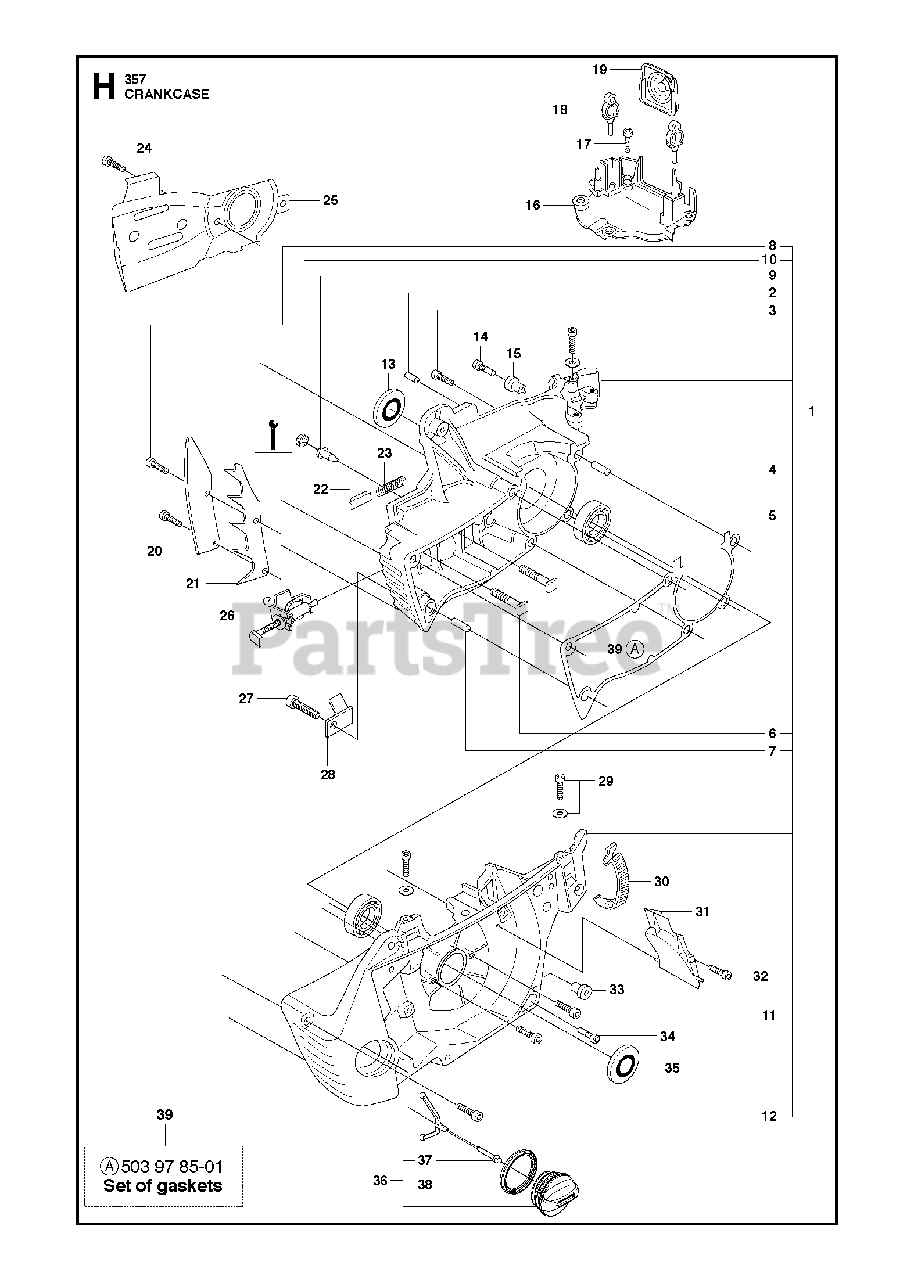

CRANKCASE Parts Diagram

  • Title

1

Husqvarna 503925305

CRANKCASE ASSY

$261.99

$

Usually ships in 3-10 days

0

2

Husqvarna 721120730

PIN

Note: . 1

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 503200832

SCREW

Note: . 1

$5.99

$

In Stock, only 2 left!

0

4

Husqvarna 503905601

SLEEVE

Note: . 1

$

$

Not available

5

Husqvarna 738220225

BALL BEARING-6202-C3 SKF

Note: . 1

$31.99

$

In Stock, only 1 left!

0

6

Husqvarna 503875401

BOLT

Note: . 1

$9.99

$

In Stock, Qty 14

0

7

Husqvarna 503905601

SLEEVE

Note: . 1

$

$

Not available

8

Husqvarna 503200776

SCREW

Note: . 1

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

Note: . 1

$4.49

$

In Stock, Qty 14

0

10

Husqvarna 537403501

PLUG
(Superseded to 537403502)

Note: . 1

$3.99

$

In Stock, only 4 left!

0

11

Husqvarna 503202516

SCREW

Note: . 1

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 503200220

SCREW

Note: . 1

$6.49

$

In Stock, Qty 20+

0

13

Husqvarna 505275719

SEAL RING

$17.99

$

In Stock, Qty 20+

0

14

Husqvarna 503215101

SCREW

$7.49

$

In Stock, Qty 11

0

15

Husqvarna 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, Qty 16

0

16

Husqvarna 503927903

BASE

$

$

Not available

17

Husqvarna 503217512

SCREW

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

19

Husqvarna 537146501

BELLOWS

$24.99

$

In Stock, Qty 7

0

20

Husqvarna 537021801

BUMPER

$

$

Not available

21

Husqvarna 503973801

FELLING DOG

$31.99

$

In Stock, only 3 left!

0

22

Husqvarna 503892401

CATCH

$9.99

$

In Stock, Qty 5

0

23

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 14

0

24

Husqvarna 503217412

SCREW

$6.49

$

In Stock, Qty 10

0

25

Husqvarna 503935401

PLATE

$15.99

$

In Stock, Qty 8

0

26

Husqvarna 537071201

CHAIN TENSIONER

$47.99

$

In Stock, Qty 5

0

27

Husqvarna 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 537377901

CHAIN CATCHER

$9.99

$

In Stock, Qty 12

0

29

Husqvarna 503213901

SCREW

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 503894701

BUCKLE ORANGE

$14.99

$

In Stock, Qty 18

0

31

Husqvarna 503929001

JET

$7.99

$

In Stock, only 3 left!

0

32

Husqvarna 503217412

SCREW

$6.49

$

In Stock, Qty 10

0

33

Husqvarna 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, Qty 16

0

34

Husqvarna 503215101

SCREW

$7.49

$

In Stock, Qty 11

0

35

Husqvarna 505275719

SEAL RING

$17.99

$

In Stock, Qty 20+

0

36

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

$10.99

$

In Stock, Qty 20+

0

37

Husqvarna 503578901

TANK LOCK

Note: . 36

$9.99

$

In Stock, Qty 15

0

38

Husqvarna 537215001

SEALING

Note: . 36

$8.99

$

In Stock, Qty 19

0

39

Husqvarna 503978501

GASKET SET

Note: A Set of gaskets

$22.99

$

Usually ships in 3-10 days

0
