35713 (5200) - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start

Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start

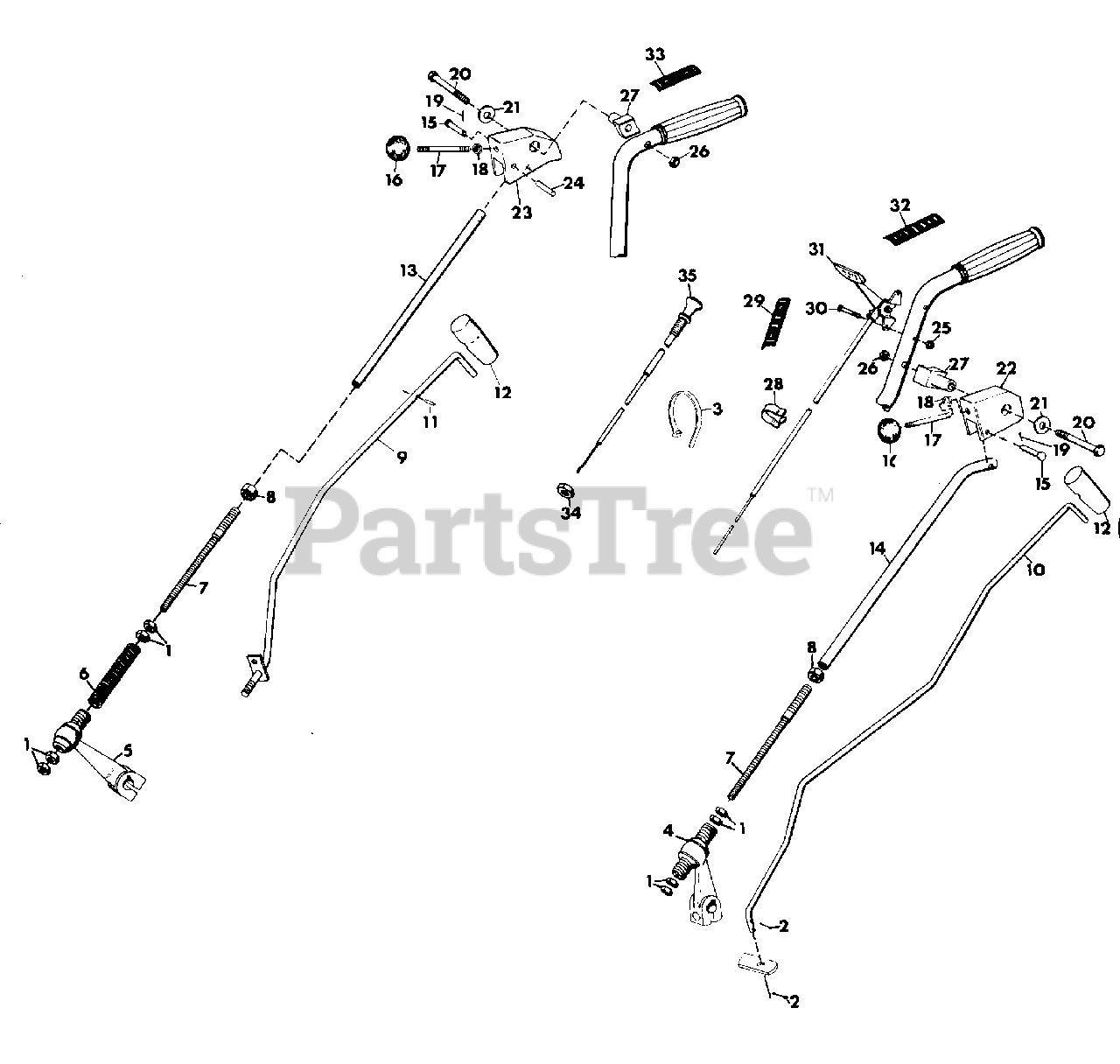

35713 (5200) - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start > Parts Diagrams (7) > CONTROLS

  • Title
124829

1

JAM, HEX 3/8-16

Part# 124829 (Superseded to 06500100)

OEM Warranty Repair Part for Gravely

Not available

121224

2

PIN, COTTER .094X1.000

Part# 121224 (Superseded to 06707000)

OEM Warranty Repair Part for Gravely

Not available

010629

3

TIE, CABLE

Part# 010629 (Superseded to 07517300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

021383

4

ASSEMBLY, HI-LO LEVER

Part# 021383 (Superseded to 21139000)

OEM Warranty Repair Part for Gravely

Not available

021384

5

ASSEMBLY, FWD-REV LEVER

Part# 021384 (Superseded to 08902500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $186.23

021506

6

SPRING, FWD-REV NEUTRAL RETURN

Part# 021506 (Superseded to 08329600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

020269

7

ROD, CONTROL EXTENSION

Part# 020269 (Superseded to 58501400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $181.39

120238

8

NUT, JAM 1/2-13

Part# 120238 (Superseded to 06529300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

010677

9

ROD, 2-SPEED CONTROL(MODEL 5240,5260,5665,5645)

Part# 010677 (Superseded to 21333400)

Note: (MODEL 5240,5260,5665,5645)

OEM Warranty Repair Part for Gravely

Not available

010932

10

ROD, ATTACHMENT(MODEL 5240,5260,5665,5645)

Part# 010932 (Superseded to 21334951)

Note: (MODEL 5240,5260,5665,5645)

OEM Warranty Repair Part for Gravely

Not available

423664

11

PIN, SPRING .094X.688(MODEL 5240,5260,5665,5645)

Part# 423664 (Superseded to 21069100)

Note: (MODEL 5240,5260,5665,5645)

OEM Warranty Repair Part for Gravely

Not available

010683

12

HANDLE, RUBBER SHIFTER(MODEL 5200)

Part# 010683 (Superseded to 07537700)

Note: (MODEL 5200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

010683

12

HANDLE, RUBBER SHIFTER(MODEL 5240,5260,5665,5645)

Part# 010683 (Superseded to 07537700)

Note: (MODEL 5240,5260,5665,5645)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

020267

13

ROD, FWD-REV CONTROL

Part# 020267 (Superseded to 58501400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $181.39

020268

14

ROD, HI-LO CONTROL

Part# 020268 (Superseded to 20008900)

OEM Warranty Repair Part for Gravely

Not available

010672

15

PIN, CLEVIS .375X1.250

Part# 010672 (Superseded to 06809100)

OEM Warranty Repair Part for Gravely

Not available

010670

16

KNOB, CONTROL

Part# 010670 (Superseded to 07537600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

010669

17

ROD, SHIFTER

Part# 010669 (Superseded to 20046000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

272123

18

NUT, JAM 7/16-20 HEX

Part# 272123 (Superseded to 06524400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

177923

19

PIN, COTTER .125X.750

Part# 177923 (Superseded to 06707300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

180192

20

BOLT, HEX 1/2-13X3.50

Part# 180192 (Superseded to 05965800)

OEM Warranty Repair Part for Gravely

Not available

120396

21

WASHER, FLAT .531X1.062X.095

Part# 120396 (Superseded to 06441900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

010666

22

SUPPORT, HI-LO SHIFTER ROD

Part# 010666 (Superseded to 21333300)

OEM Warranty Repair Part for Gravely

Not available

011985

23

SUPPORT, FWD-REV SHIFTER ROD

Part# 011985 (Superseded to 21343400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $86.03

453670

24

PIN, SPRING .25X.125

Part# 453670 (Superseded to 05808900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

190254

25

NUT, LOCK 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

020541

26

NUT

Part# 020541 (Superseded to 06527200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

010667

27

PIVOT, HANDLE LEVER

Part# 010667 (Superseded to 20045800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

008260

28

CLIP, CONDUIT

Part# 008260 (Superseded to 06901200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

021091

29

DECAL, GEAR SHIFT

Part# 021091 (Superseded to 05201100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

436738

30

SCREW, MACH 10-24X1.50 PAN HD

Part# 436738 (Superseded to 06118300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

021103

31

LEVER, THROTTLE CONTROL 8 H.P.

Part# 021103 (Superseded to 06921900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

021196

31

LEVER, THROTTLE CONTROL 12 H.P.

Part# 021196 (Superseded to 20321000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

021092

32

DECAL, THROTTLE

Part# 021092 (Superseded to 05201200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

021090

33

DECAL, FWD-REV

Part# 021090 (Superseded to 05201000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

124925

34

NUT, JAM 3/8-24 HEX(MODEL 5260,5665)

Part# 124925 (Superseded to 06534700)

Note: (MODEL 5260,5665)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

010696

35

CONTROL, CHOKE(MODEL 5260,5665)

Part# 010696 (Superseded to 20046600)

Note: (MODEL 5260,5665)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48
