35713 (5200) - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start

Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start

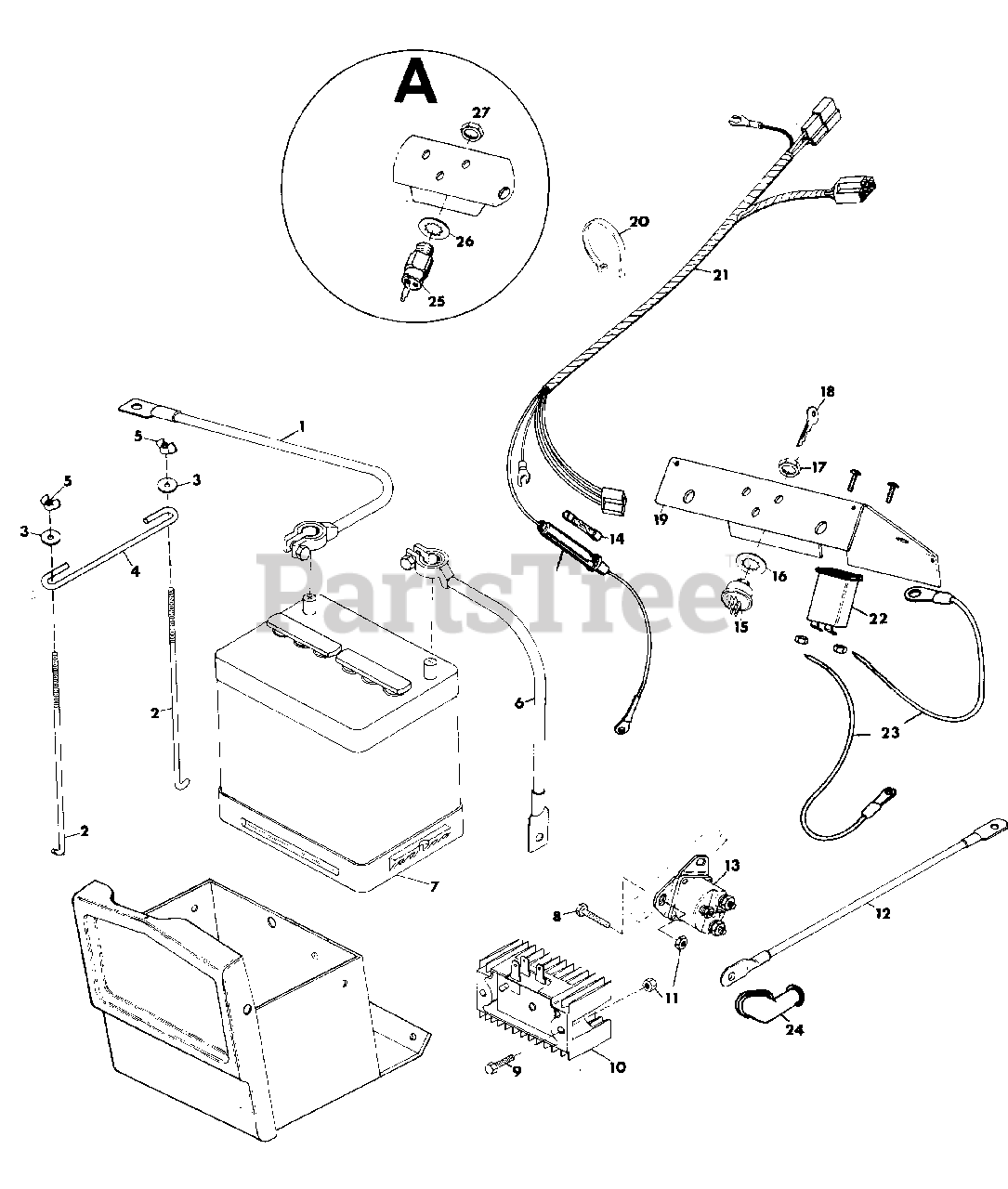

35713 (5200) - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start > Parts Diagrams (7) > ELECTRICAL

  • Title
021368

1

CABLE, POSITIVE BATTERY

Part# 021368 (Superseded to 08516500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

012894

2

BOLT, HOLD-DOWN

Part# 012894 (Superseded to 21370600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

446354

3

WASHER, FLAT .313X.875X.065

Part# 446354 (Superseded to 06430700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

037743

4

HOLD-DOWN, BATTERY

Part# 037743 (Superseded to 20636600)

OEM Warranty Repair Part for Gravely

Not available

010413

5

NUT, WING 1/4-20

Part# 010413 (Superseded to 06537500)

OEM Warranty Repair Part for Gravely

Not available

006980

6

CABLE, NEGATIVE BATTERY

Part# 006980 (Superseded to 21327300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

037764

7

BATTERY, 12 VOLT MAINTENANCE-FREE

Part# 037764

OEM Warranty Repair Part for Gravely

Not available

180042

8

BOLT, HEX 1/4-20X1.75

Part# 180042 (Superseded to 05964700)

OEM Warranty Repair Part for Gravely

Not available

180020

9

BOLT, HEX 1/4-20X.75(MODEL 5665)

Part# 180020 (Superseded to 05946800)

Note: (MODEL 5665)

OEM Warranty Repair Part for Gravely

Not available

018009

10

REGULATOR, RECTIFIER(MODEL 5665)

Part# 018009 (Superseded to 08505600)

Note: (MODEL 5665)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $118.34

120375

11

NUT, HEX 1/4-20(MODEL 5260)

Part# 120375 (Superseded to 06533200)

Note: (MODEL 5260)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

120375

11

NUT, HEX 1/4-20(MODEL 5665)

Part# 120375 (Superseded to 06533200)

Note: (MODEL 5665)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

006981

12

CABLE, MAGNETIC SWITCH TO STARTER

Part# 006981 (Superseded to 08547300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

007277

13

SWITCH, MAGNETIC

Part# 007277 (Superseded to 20031900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $29.01

014893

14

FUSE, 30 AMP ACC-30

Part# 014893 (Superseded to 20176100)

OEM Warranty Repair Part for Gravely

Not available

019223

15

SWITCH, IGNITION

Part# 019223 (Superseded to 59211800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $27.89

019667

16

WASHER, LOCK(MODEL 5260, 5665)

Part# 019667 (Superseded to 06310900)

Note: (MODEL 5260, 5665)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

019666

17

NUT, JAM 9/16-24(MODEL 5260, 5665)

Part# 019666 (Superseded to 20287700)

Note: (MODEL 5260, 5665)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

018570

18

KEY, IGNITION SWITCH

Part# 018570 (Superseded to 02460700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $7.77

024751

19

PANEL, INSTRUMENT(MODEL 5200, 5240, 5645)

Part# 024751 (Superseded to 58501800)

Note: (MODEL 5200, 5240, 5645)

OEM Warranty Repair Part for Gravely

Not available

024744

19

PANEL, INSTRUMENT(MODEL 5260,5665)

Part# 024744 (Superseded to 58502000)

Note: (MODEL 5260,5665)

OEM Warranty Repair Part for Gravely

Not available

037758

19

PANEL, INSTRUMENT(MODEL 5665)

Part# 037758 (Superseded to 58502000)

Note: (MODEL 5665)

OEM Warranty Repair Part for Gravely

Not available

010629

20

TIE, CABLE

Part# 010629 (Superseded to 07517300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

024759

21

HARNESS, WIRING 3 AMP(MODEL 5260,5665)

Part# 024759 (Superseded to 20418401)

Note: (MODEL 5260,5665)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.08

019222

21

HARNESS, WIRING 15 AMP(MODEL 5665)

Part# 019222 (Superseded to 20275500)

Note: (MODEL 5665)

OEM Warranty Repair Part for Gravely

Not available

038256

22

HOURMETER(MODEL 5665)

Part# 038256 (Superseded to 03966800)

Note: (MODEL 5665)

OEM Warranty Repair Part for Gravely

Not available

021425

23

WIRE, INSTRUMENT PANEL(MODEL 5665)

Part# 021425 (Superseded to 08801600)

Note: (MODEL 5665)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

033847

24

BOOT, BATTERY CABLE(MODEL 5260, 5665)

Part# 033847 (Superseded to 03384700)

Note: (MODEL 5260, 5665)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

021104

25

SWITCH, IGNITION

Part# 021104 (Superseded to 53204700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $55.29

018586

26

WASHER, LOCK(MODEL 5200, 5240, 5645)

Part# 018586 (Superseded to 06306900)

Note: (MODEL 5200, 5240, 5645)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

018585

27

NUT, JAM 5/8-32(MODEL 5200, 5240, 5645)

Part# 018585 (Superseded to 21119800)

Note: (MODEL 5200, 5240, 5645)

OEM Warranty Repair Part for Gravely

Not available
