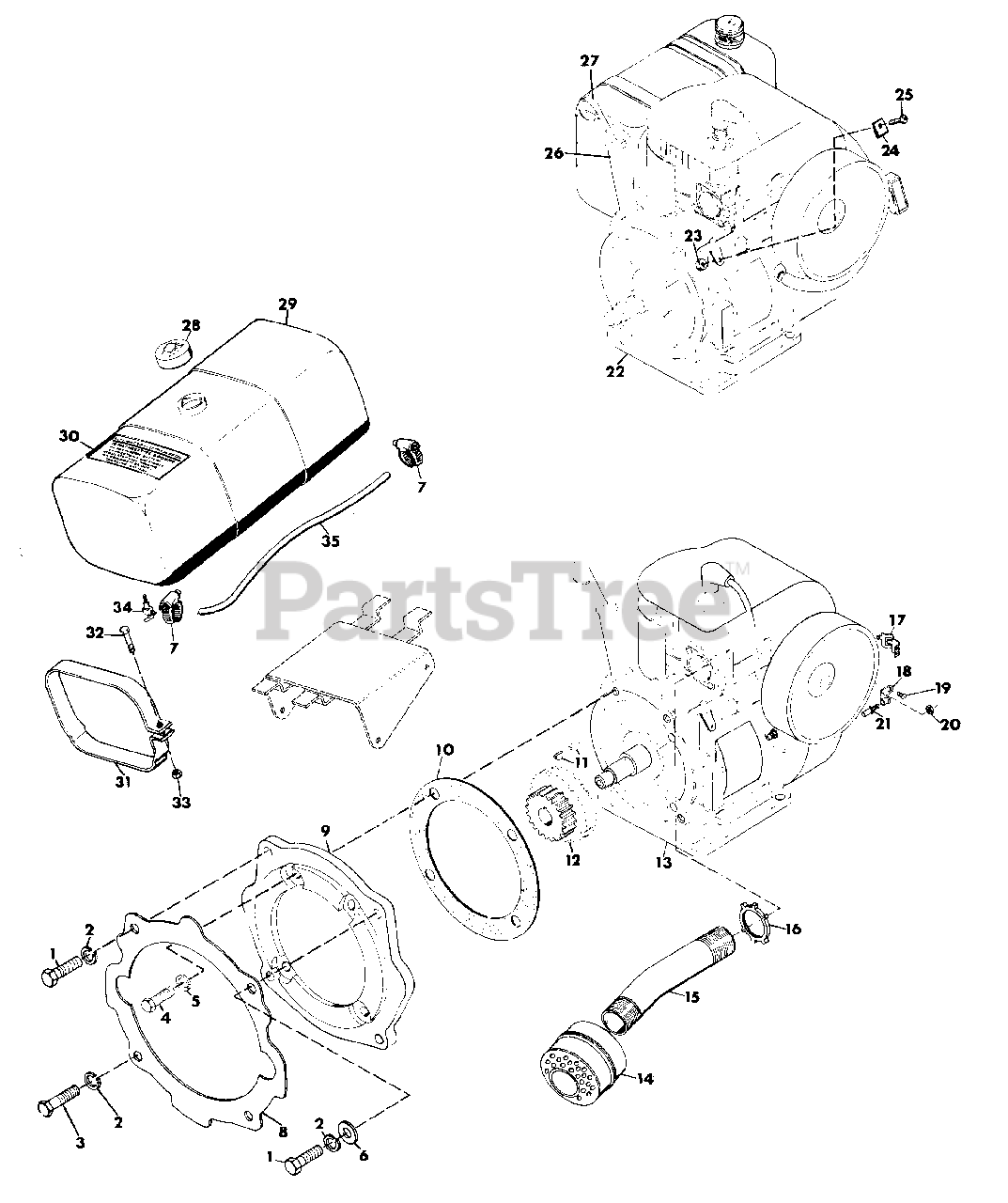

35713 (5200) - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start > Parts Diagrams (7) > FUEL SYSTEM AND EXHAUST

  • Title
180149

1

BOLT, HEX 7/16-14X1.50

Part# 180149 (Superseded to 05962800)

OEM Warranty Repair Part for Gravely

Not available

131100

2

WASHER, LOCK 7/16 SP HEAVY

Part# 131100 (Superseded to 06310700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

180147

3

BOLT, HEX 7/16-14X1.25, 8 H.P.

Part# 180147 (Superseded to 05964800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

180146

3

BOLT, HEX 7/16-14X1.125, 12 H.P.

Part# 180146 (Superseded to 05963800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

180121

4

BOLT, HEX 3/8-16X.875, 8 H.P.

Part# 180121 (Superseded to 05932600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180122

4

BOLT, HEX 3/8-16X1, 12 H.P.

Part# 180122 (Superseded to 05948700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

131099

5

WASHER, LOCK 3/8 SP HEAVY

Part# 131099 (Superseded to 06306500)

OEM Warranty Repair Part for Gravely

Not available

120395

6

WASHER, FLAT .469X.938X.065

Part# 120395 (Superseded to 06429400)

OEM Warranty Repair Part for Gravely

Not available

032045

7

CLAMP, HOSE(MODEL 5260, 5665, 5645)

Part# 032045 (Superseded to 06924300)

Note: (MODEL 5260, 5665, 5645)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

010635

8

GASKET, CHASSIS TO ADAPTOR

Part# 010635 (Superseded to 08602800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

014938

9

ADAPTOR, ENGINE 8 H.P.

Part# 014938 (Superseded to 08503200)

OEM Warranty Repair Part for Gravely

Not available

010731

9

ADAPTOR, ENGINE 12 H.P.

Part# 010731 (Superseded to 09022100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $205.26

010732

10

GASKET, ENGINE TO ADAPTOR 12 H.P.

Part# 010732 (Superseded to 08602700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

015718

10

GASKET, ENGINE TO ADAPTOR 8 H.P.

Part# 015718 (Superseded to 08500400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

124546

11

KEY, WOODRUFF 5/32X5/8 HARD

Part# 124546 (Superseded to 06608500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

017838

12

GEAR, 10/12 DP 21/30 TEETH

Part# 017838 (Superseded to 08505300)

OEM Warranty Repair Part for Gravely

Not available

038264

13

ENGINE, 12 H.P. 2-WHEEL ELECTRIC

Part# 038264

OEM Warranty Repair Part for Gravely

Not available

038266

13

ENGINE, 12 H.P. 2-WHEEL MANUAL

Part# 038266 (Superseded to 20651500)

OEM Warranty Repair Part for Gravely

Not available

008227

14

MUFFLER, 12 H.P.

Part# 008227 (Superseded to 20033200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

010865

15

TUBE, MUFFLER 12 H.P.

Part# 010865 (Superseded to 21333900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

010866

16

NUT, CONDUIT 1 PIPE

Part# 010866

OEM Warranty Repair Part for Gravely

Not available

007331

17

CLIP, SPEED

Part# 007331 (Superseded to 06931500)

OEM Warranty Repair Part for Gravely

Not available

018522

18

BRACKET

Part# 018522 (Superseded to 20259500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

160515

19

SCREW, MACH. 1/4-20X.50 PAN HD

Part# 160515 (Superseded to 06110900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

120375

20

NUT, HEX 1/4-20

Part# 120375 (Superseded to 06533200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

018521

21

ADAPTOR, CONDUIT

Part# 018521 (Superseded to 06921000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

021042

22

ENGINE, 8 H.P. 2-WHEEL MANUAL

Part# 021042

OEM Warranty Repair Part for Gravely

Not available

024639

22

ENGINE, 8 H.P. 2-WHEEL ELECTRIC

Part# 024639

OEM Warranty Repair Part for Gravely

Not available

190254

23

NUT, LOCK 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

015453

24

CLIP

Part# 015453 (Superseded to 20195700)

OEM Warranty Repair Part for Gravely

Not available

159920

25

SCREW, MACH. 10-24X.50 PAN HD

Part# 159920 (Superseded to 06113000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

021174

26

TUBE, OIL FILL(MODEL 5260)

Part# 021174 (Superseded to 20319500)

Note: (MODEL 5260)

OEM Warranty Repair Part for Gravely

Not available

021173

27

DIPSTICK(MODEL 5260)

Part# 021173 (Superseded to 20319400)

Note: (MODEL 5260)

OEM Warranty Repair Part for Gravely

Not available

010756

28

CAP, GAS TANK(MODEL 5260, 5665, 5645)

Part# 010756 (Superseded to 08582100)

Note: (MODEL 5260, 5665, 5645)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.23

010636

29

ASSEMBLY, FUEL TANK

Part# 010636 (Superseded to 08575100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $278.16

011989

30

DECAL, E. S. WARNING MODELS 5260 AND 5665

Part# 011989 (Superseded to 05216700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

010640

31

STRAP, FUEL TANK(MODEL 5260, 5665, 5645)

Part# 010640 (Superseded to 08581800)

Note: (MODEL 5260, 5665, 5645)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

180024

32

BOLT, HEX 1/4-20X1.25(MODEL 5260, 5665,5645)

Part# 180024 (Superseded to 05947400)

Note: (MODEL 5260, 5665,5645)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

419454

33

NUT, LOCK 1/4-20(MODEL 5260, 5665, 5645)

Part# 419454 (Superseded to 06531000)

Note: (MODEL 5260, 5665, 5645)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

007354

34

VALVE AND STRAINER(MODEL 5260, 5665, 5645)

Part# 007354 (Superseded to 08860200)

Note: (MODEL 5260, 5665, 5645)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

021134

35

LINE, FUEL(MODEL 5260, 5665, 5645)

Part# 021134 (Superseded to 03278100)

Note: (MODEL 5260, 5665, 5645)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30
