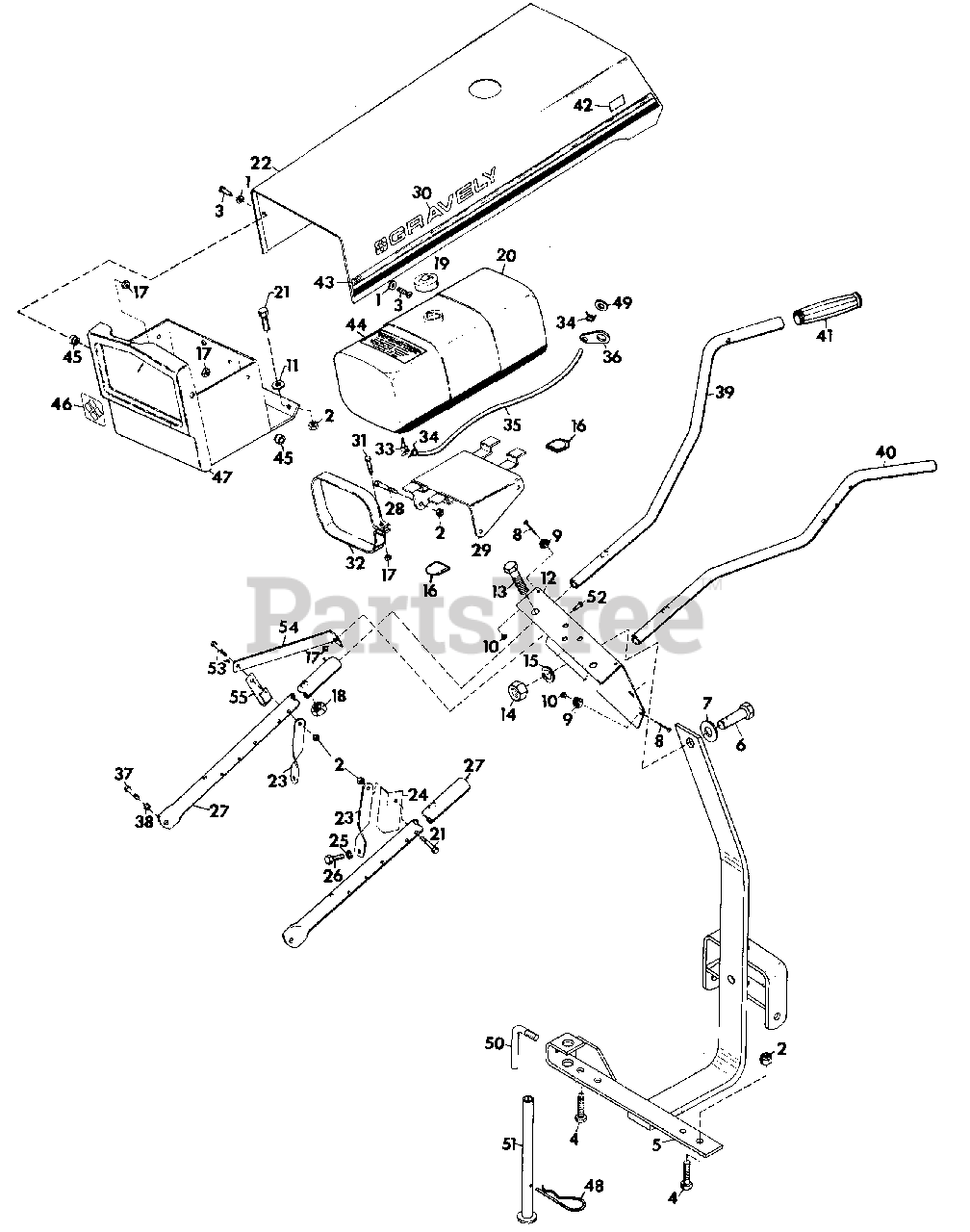

35716 (5645) - Gravely Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Manual Start > Parts Diagrams (6) > FRAME

  • Title
120392

1

WASHER, FLAT; .281 X .625 X .065

Part# 120392 (Superseded to 06437300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

456004

2

NUT, LOCK; 3/8-16 WASHER INSERT HEX

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

160556

3

SCREW, MACH; 1/4-20 X 1 PAN HD

Part# 160556 (Superseded to 06113600)

OEM Warranty Repair Part for Gravely

Not available

180126

4

BOLT, HEX; 3/8-16 X 1-1/2

Part# 180126 (Superseded to 05957900)

OEM Warranty Repair Part for Gravely

Not available

024844

5

HITCH, WELDMENT; 8 H.P.

Part# 024844 (Superseded to 08544400)

OEM Warranty Repair Part for Gravely

Not available

024843

5

HITCH, WELDMENT; 12 H.P.

Part# 024843 (Superseded to 08544200)

OEM Warranty Repair Part for Gravely

Not available

271547

6

BOLT, HEX; 5/8-11 X 1-1/2

Part# 271547 (Superseded to 05968700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

421879

7

WASHER, FLAT; .656 X 1.250 X .100

Part# 421879 (Superseded to 06430300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

159341

8

SCREW, MACH; 6-32 X 5/8 PAN HD C-RECESS

Part# 159341 (Superseded to 06110700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

018183

9

BUMPER

Part# 018183 (Superseded to 07017400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

427254

10

NUT, MACH LOCK; 6-32 WASHER INSERT

Part# 427254 (Superseded to 06538900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

120394

11

WASHER, FLAT; .406 X .812 X .065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

024744

12

INSTRUMENT PANEL ELECTRIC START

Part# 024744 (Superseded to 58502000)

OEM Warranty Repair Part for Gravely

Not available

024751

12

INSTRUMENT PANEL MANUAL START

Part# 024751 (Superseded to 58501800)

OEM Warranty Repair Part for Gravely

Not available

181705

13

BOLT, HEX; 1/2-20 X 2

Part# 181705 (Superseded to 21060300)

OEM Warranty Repair Part for Gravely

Not available

124589

14

NUT, HEX; 5/8-11

Part# 124589 (Superseded to 06535600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

121574

15

WASHER, LOCK; 5/8 SP

Part# 121574 (Superseded to 06309500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

031620

16

COVER 1.0 X .125 X 1.0

Part# 031620 (Superseded to 20557000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

419454

17

NUT, LOCK; 1/4-20 WASHER INSERT

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

120371

18

NUT, HEX; 1/2-20

Part# 120371 (Superseded to 21050100)

OEM Warranty Repair Part for Gravely

Not available

010756

19

CAP, GAS TANK

Part# 010756 (Superseded to 08582100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.23

010636

20

ASSEMBLY, FUEL TANK

Part# 010636 (Superseded to 08575100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $278.16

180132

21

BOLT, HEX; 3/8-16 X 2-1/4

Part# 180132 (Superseded to 05962900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

010650

22

HOOD

Part# 010650 (Superseded to 21333000)

OEM Warranty Repair Part for Gravely

Not available

010655

23

BRACE, HANDLE

Part# 010655 (Superseded to 21333100)

OEM Warranty Repair Part for Gravely

Not available

010933

24

STOP, ROD

Part# 010933 (Superseded to 21335000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

131100

25

WASHER, LOCK; 7/16 SP HEAVY

Part# 131100 (Superseded to 06310700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

180149

26

BOLT, HEX; 7/16 X 1-1/2

Part# 180149 (Superseded to 05962800)

OEM Warranty Repair Part for Gravely

Not available

010643

27

SUPPORT, TUBE

Part# 010643 (Superseded to 21332600)

OEM Warranty Repair Part for Gravely

Not available

180129

28

BOLT, HEX; 3/8-16 X 1-7/8

Part# 180129 (Superseded to 05935100)

OEM Warranty Repair Part for Gravely

Not available

010637

29

WELDMENT, FUEL TANK BRACKET

Part# 010637 (Superseded to 21332300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $61.43

024588

30

DECAL, GRAVELY LOGO

Part# 024588 (Superseded to 05201500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

180024

31

BOLT, HEX; 1/4-20 X 1-1/4

Part# 180024 (Superseded to 05947400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

010640

32

STRAP, FUEL TANK

Part# 010640 (Superseded to 08581800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

007354

33

VALVE AND STRAINER

Part# 007354 (Superseded to 08860200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

007216

34

CLAMP, FUEL HOSE

Part# 007216

OEM Warranty Repair Part for Gravely

Not available

021134

35

LINE, FUEL .50 OD X .25 ID X BULK LENGTH

Part# 021134 (Superseded to 03278100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.45

021489

36

BRACKET, FUEL LINE

Part# 021489 (Superseded to 21140000)

OEM Warranty Repair Part for Gravely

Not available

180122

37

BOLT, HEX; 3/8-16 X 1

Part# 180122 (Superseded to 05948700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

120382

38

WASHER, LOCK; 3/8 SP

Part# 120382 (Superseded to 06308800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

011982

39

BAR, RIGHT HANDLE

Part# 011982 (Superseded to 21366300)

OEM Warranty Repair Part for Gravely

Not available

010658

40

BAR, LEFT HANDLE

Part# 010658 (Superseded to 20045500)

OEM Warranty Repair Part for Gravely

Not available

010671

41

GRIP, HAND

Part# 010671 (Superseded to 20046100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

034141

42

DECAL, MODEL 5665

Part# 034141 (Superseded to 20593800)

OEM Warranty Repair Part for Gravely

Not available

024583

42

DECAL, MODEL 5260

Part# 024583 (Superseded to 20413400)

OEM Warranty Repair Part for Gravely

Not available

034140

42

DECAL, MODEL 5645

Part# 034140 (Superseded to 20593700)

OEM Warranty Repair Part for Gravely

Not available

031831

43

DECAL, SIDE STRIPES

Part# 031831 (Superseded to 69201900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $114.20

011989

44

DECAL, ELECTRICAL SYSTEM WARNING

Part# 011989 (Superseded to 05216700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

012117

45

PIVOT, HOOD

Part# 012117 (Superseded to 21344100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

010697

46

DECAL

Part# 010697 (Superseded to 05216500)

OEM Warranty Repair Part for Gravely

Not available

010644

47

WELDMENT, GRILLE

Part# 010644 (Superseded to 21332700)

OEM Warranty Repair Part for Gravely

Not available

010405

48

COTTER, HAIR PIN

Part# 010405 (Superseded to 06714000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

120395

49

WASHER, FLAT; .469 X .938 X .065

Part# 120395 (Superseded to 06429400)

OEM Warranty Repair Part for Gravely

Not available

013457

50

HANDLE, ADJUSTING

Part# 013457 (Superseded to 08597900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $57.24

034062

51

KICK STAND

Part# 034062 (Superseded to 08536500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

180018

52

BOLT, HEX; 1/4-20 X .625

Part# 180018 (Superseded to 05932000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

180134

53

BOLT, HEX; 3/8-16 X 2-1/2

Part# 180134 (Superseded to 05958400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

010996

54

BRACE, INSTRUMENT PANEL

Part# 010996 (Superseded to 21335500)

OEM Warranty Repair Part for Gravely

Not available

010684

55

RETAINER, 2-SPEED CONTROL

Part# 010684 (Superseded to 21333600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24
