35789 - Gravely 36" Snow Blower for 1100 & 1200 Series Tractor GEARCASE ASSEMBLY Parts Diagram

36" Snow Blower for 1100 & 1200 Series Tractor

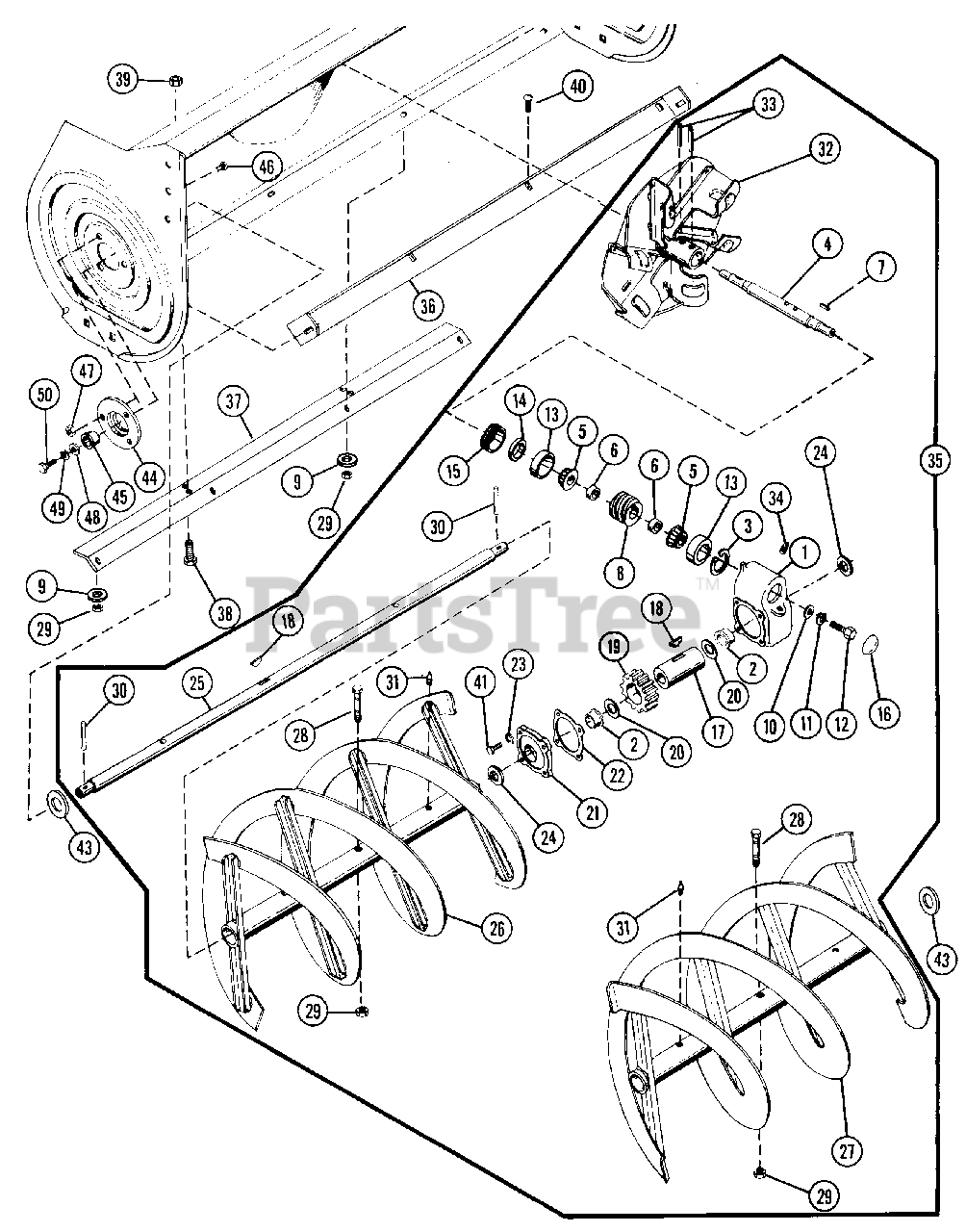

GEARCASE ASSEMBLY Parts Diagram

  • Title

1

Gravely 036920

GEAR CASE - CAST IRON
(Superseded to 02400200)

$

$

Not available

2

Gravely 036860

BSHG-FLG .683X1.87X1.68X2.250
(Superseded to 05505900)

$15.99

$

In Stock, only 2 left!

0

3

Gravely 036921

RG-RTNG-INT 1.781X.062
(Superseded to 05707500)

$9.99

$

In Stock, Qty 7

0

4

Gravely 036851

WORM SHAFT
(Superseded to 03519400)

$218.99

$

Usually ships in 4-12 days

0

5

Gravely 035982

BRG-CONE .750X.61
(Superseded to 05404500)

$29.99

$

In Stock, Qty 20+

0

6

Gravely 036852

BSHG, SPCR .755X1.12X.50 PM
(Superseded to 00200500)

$7.49

$

In Stock, Qty 7

0

7

Gravely 036230

KEY-SQ .188X1.0X.188 SAE 8630
(Superseded to 06601300)

$1.99

$

In Stock, only 1 left!

0

8

Gravely 036853

WORM & GEAR SERVICE ASSEMBLY
(Superseded to 52400900)

$180.99

$

In Stock, only 1 left!

0

9

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 131099

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

12

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 035983

BRG-CUP 1.781X.475
(Superseded to 05404400)

$11.99

$

In Stock, Qty 17

0

14

Gravely 036854

SEAL 1.000X1.312X.150
(Superseded to 05606100)

$13.99

$

In Stock, only 2 left!

0

15

Gravely 036855

ADJUSTMENT PLUG - 1" SHAFT
(Superseded to 02401500)

$94.99

$

Usually ships in 4-12 days

0

16

Gravely 036856

DUST CAP
(Superseded to 00403700)

$18.99

$

In Stock, only 2 left!

0

17

Gravely 036857

GEAR CASE SHAFT
(Superseded to 02406400)

$184.99

$

Usually ships in 4-12 days

0

18

Gravely 124551

KEY-WDRF .25X.875 HRD #A
(Superseded to 06608800)

$3.99

$

In Stock, Qty 12

0

19

Gravely 036858

WORM & GEAR SERVICE ASSEMBLY
(Superseded to 52400900)

$180.99

$

In Stock, only 1 left!

0

20

Gravely 036859

WSHR-FL-STL 1.625X2.500X.012
(Superseded to 06408700)

$11.99

$

In Stock, only 2 left!

0

21

Gravely 036861

GEAR CASE COVER
(Superseded to 02401300)

$139.99

$

Usually ships in 4-12 days

0

22

Gravely 036862

GASKET
(Superseded to 00200800)

$3.99

$

In Stock, Qty 8

0

23

Gravely 121753

WSHR,LOCK 1/4 EXT TH TYA
(Superseded to 21051100)

$

$

Not available

24

Gravely 036863

SEAL 1.625X2.125X.250
(Superseded to 05607000)

$10.99

$

In Stock, only 2 left!

0

25

Gravely 036864

SHAFT, 36" RAKE - 1.00 DIA.
(Superseded to 03519500)

$

$

Not available

26

Gravely 036865

RAKE, RIGHT-36"(1ID X 15.75OD)
(Superseded to 52412600)

$

$

Not available

27

Gravely 036866

RAKE, LEFT-36"(1"ID X 15.75OD)
(Superseded to 52412500)

$

$

Not available

28

Gravely 036867

SHEAR BOLT SERVICE ASSEMBLY
(Superseded to 51001500)

$5.99

$

In Stock, Qty 20+

0

29

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 456542

PIN-ROLL .187X1.500
(Superseded to 05809400)

$

$

Not available

31

Gravely 036160

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07012600)

$

$

Not available

32

Gravely 036868

FAN - 14", BLACK
(Superseded to 02437651)

$287.99

$

Usually ships in 4-12 days

0

33

Gravely 036869

PIN-ROLL .313X1.75
(Superseded to 05801500)

$2.99

$

In Stock, only 2 left!

0

34

Gravely 035945

PIPE PLUG
(Superseded to 00113800)

$6.49

$

Usually ships in 4-12 days

0

35

Gravely 036919

GEAR CASE - 40" - CAST IRON
(Superseded to 53502200)

$

$

Not available

36

Gravely 036881

BLADE, SCRAPPER - 36"

$

$

Not available

37

Gravely 036882

BLADE BRACE - 36"
(Superseded to 03519343)

$

$

Not available

38

Gravely 180120

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

39

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 126227

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

41

Gravely 180021

BLT-HEX .25-20X.875
(Superseded to 05934000)

$2.49

$

Usually ships in 4-12 days

0

43

Gravely 036870

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

44

Gravely 036871

BEARING SUPPORT
(Superseded to 05063300)

$30.99

$

In Stock, only 2 left!

0

45

Gravely 036872

BSHG-FLG 1.000X1.12X.62X1.50BR
(Superseded to 05503500)

$13.99

$

In Stock, Qty 14

0

46

Gravely 036873

BLT-SERNK SL .25-20X.50 YWZC
(Superseded to 07028600)

$3.99

$

In Stock, only 4 left!

0

47

Gravely 424215

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

48

Gravely 120386

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 131101

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$2.99

$

In Stock, only 2 left!

0

50

Gravely 180173

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0
