358 Ts - Shindaiwa Chainsaw (SN: C85115001001 - C85115999999) CHAIN BRAKE Parts Diagram

Chainsaw

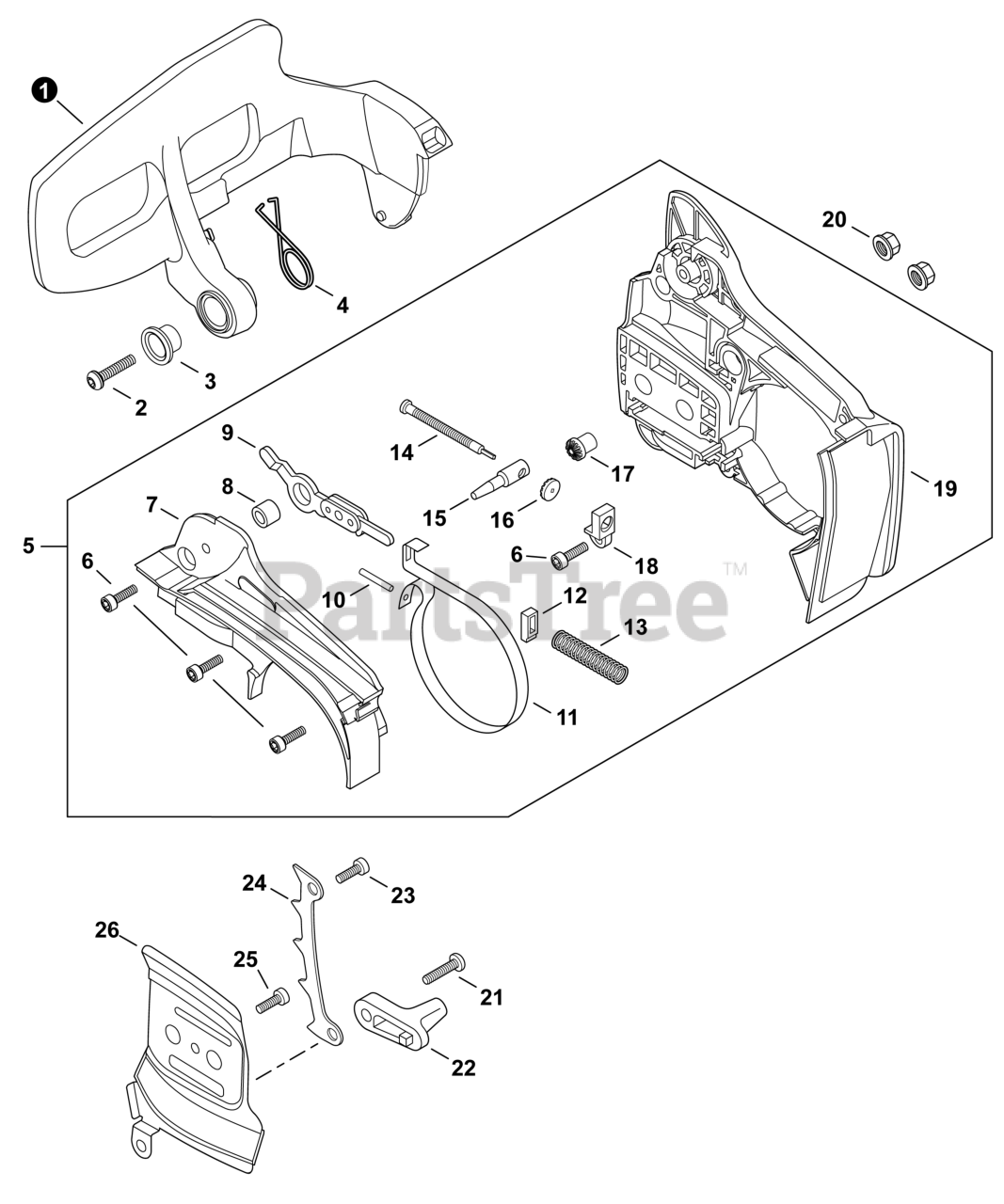

CHAIN BRAKE Parts Diagram

  • Title

1

Echo C320000501

LEVER, BRAKE

$34.99

$

In Stock, only 2 left!

0

2

Echo V805000240

BOLT, TORX 5x12

$0.99

$

In Stock, Qty 20+

0

3

Echo V356000430

COLLAR 10

$2.49

$

In Stock, only 2 left!

0

4

Echo V452001380

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0

5

Echo P021050001

SPROCKET GUARD ASSY

Note: Includes Items 6-19

$94.99

$

Usually ships in 2-4 days

0

6

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 19

0

7

Echo C345000590

COVER, BRAKE

$8.49

$

Usually ships in 2-4 days

0

8

Echo 43311635430

SPACER 8x12x9

$5.99

$

In Stock, only 1 left!

0

9

Echo C334000290

CONNECTOR, BRAKE

$13.99

$

Usually ships in 2-4 days

0

10

Echo 9305030098

PIN, SPRING 3x9.8

$0.99

$

In Stock, Qty 20+

0

11

Echo C328000310

BAND, BRAKE

$12.99

$

In Stock, Qty 5

0

12

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 16

0

13

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, Qty 11

0

14

Echo V203000041

BOLT 5

$6.49

$

In Stock, Qty 20+

0

15

Echo C309000030

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

16

Echo V651000011

GEAR, BEVEL

$8.99

$

In Stock, Qty 20+

0

17

Echo V651000001

GEAR, BEVEL

$8.99

$

In Stock, Qty 20+

0

18

Echo V355000140

COLLAR 8

$1.49

$

In Stock, Qty 20+

0

19

Echo C300001021

GUARD, SPROCKET

$46.99

$

Usually ships in 2-4 days

0

20

Echo V265000200

NUT, FLANGE M8x1.25

$1.99

$

In Stock, Qty 20+

0

21

Echo V805000010

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 20+

0

22

Echo 43302635430

CATCHER, CHAIN

$2.49

$

In Stock, Qty 20+

0

23

Echo V805000010

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 20+

0

24

Echo C304000000

SPIKE, BUMPER

$4.99

$

In Stock, only 1 left!

0

25

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 19

0

26

Echo C305000430

PLATE, GUIDE - INNER

$10.99

$

In Stock, Qty 20+

0
