358447-0110-01 - Briggs & Stratton Horizontal Engine Crankshaft Group Parts Diagram

Horizontal Engine

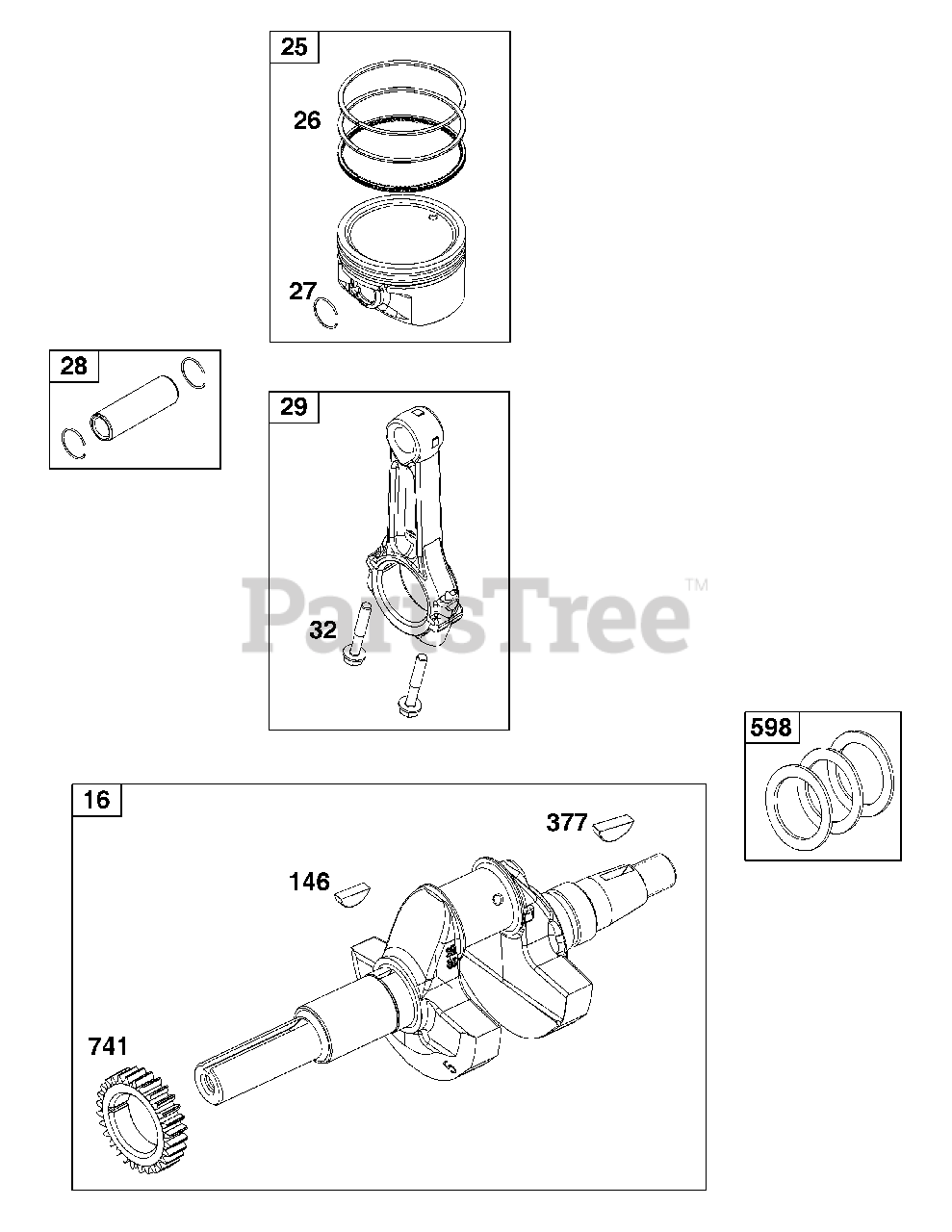

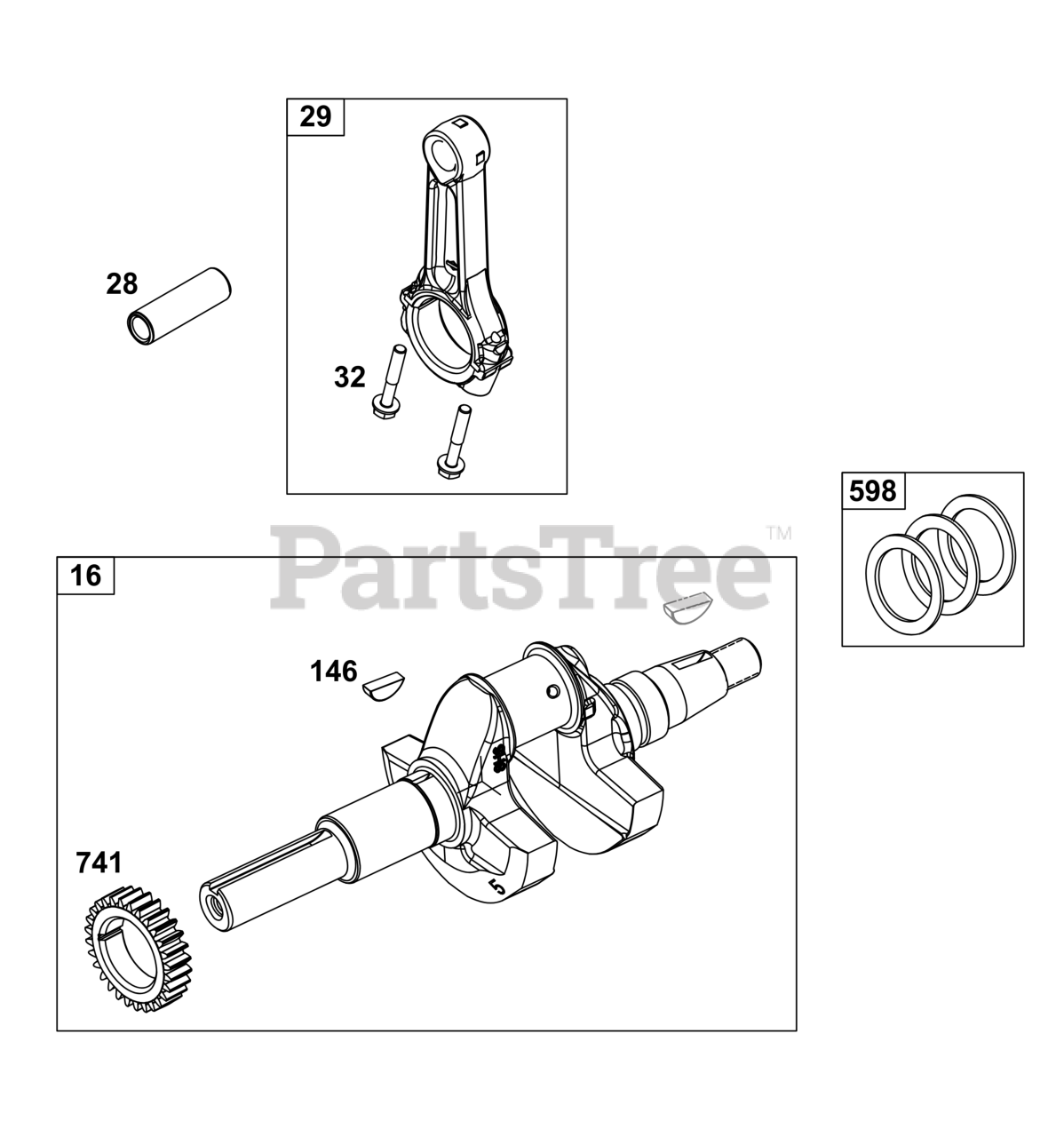

Crankshaft Group Parts Diagram

  • Title

16

Briggs & Stratton 843794

Crankshaft
(Superseded to 84004523)

$496.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 843792

Piston Assembly-STD

$115.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 843793

Ring Set-STD

$57.99

$

In Stock, Qty 10

0

25

Briggs & Stratton 843821

Piston Assembly-STD

Note: (.020 Oversize)

$146.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 843822

Ring Set-STD

Note: (.020 Oversize)

$59.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690683

Lock-Piston Pin

$5.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 844541

Pin-Piston

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900S

Rod-Connecting

$61.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.99

$

In Stock, only 3 left!

0

146

Briggs & Stratton 691639

KEY, Woodruff

$4.99

$

Usually ships in 2-12 days

0

377

Briggs & Stratton 808095

Key-Woodruff

$14.99

$

Usually ships in 2-12 days

0

598

Briggs & Stratton 807625

Shim-End Play

Note: (Crankshaft or Camshaft Bearing)

$21.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 846085

Gear-Timing

$20.99

$

Usually ships in 2-12 days

0
