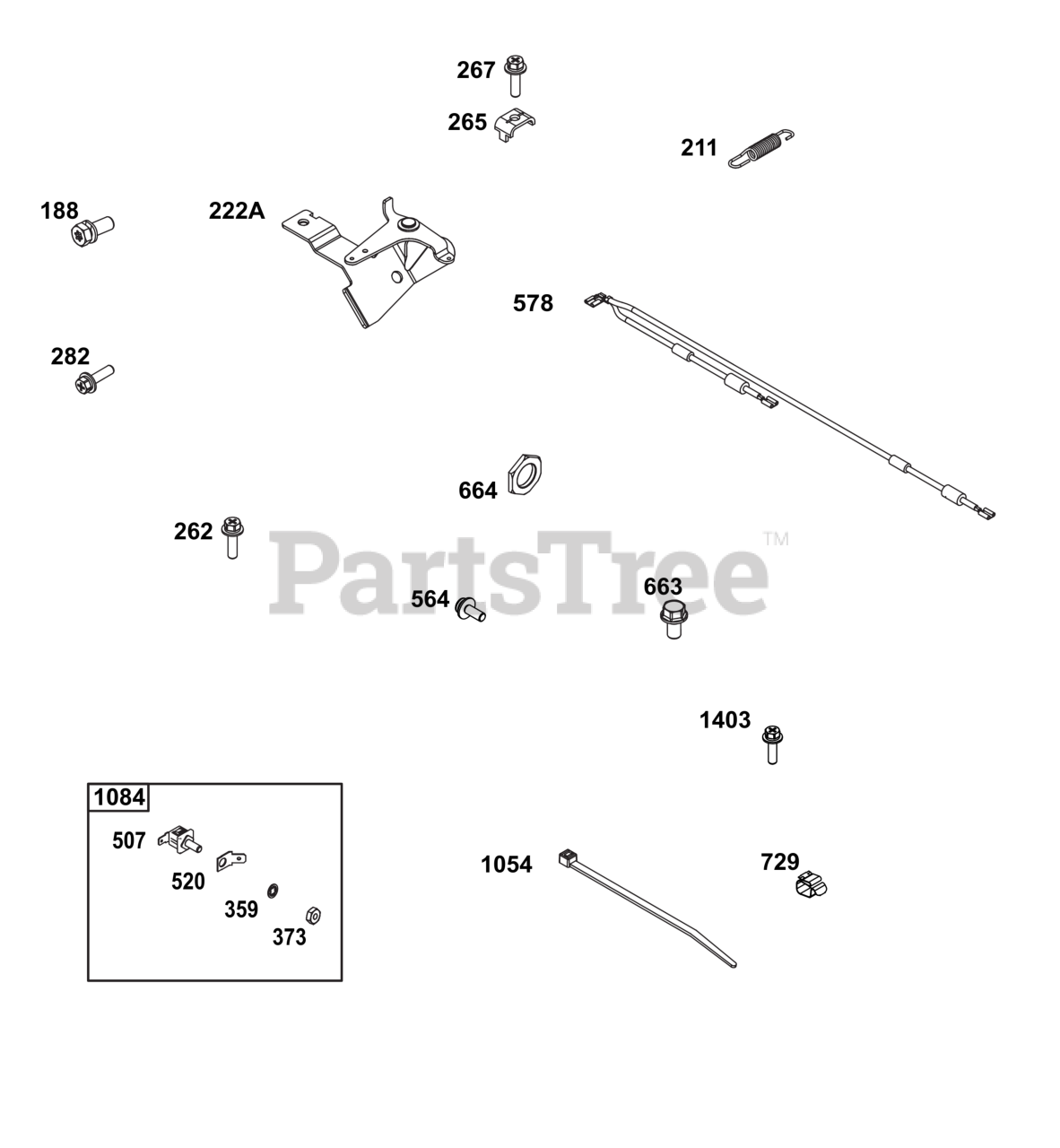

358447-0112-01 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 691902

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 15

0

211

Briggs & Stratton 692069

SPRING, Governed Idle

$6.99

$

In Stock, Qty 16

0

222A

Briggs & Stratton 690923

CRANK, Bell

$16.99

$

Usually ships in 2-12 days

0

262

Briggs & Stratton 841552

SCREW

Note: (Rod Bracket)

$3.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 9

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 1 left!

0

282

Briggs & Stratton 841552

SCREW

Note: (Control Lever)

$3.99

$

In Stock, only 1 left!

0

359

Briggs & Stratton 691077

WASHER

Note: (Ground Terminal)

$3.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 845823

NUT
(Superseded to 703460)

Note: (Ground Terminal)

$3.99

$

In Stock, Qty 7

0

507

Briggs & Stratton 691972

INSULATOR

$9.49

$

In Stock, only 4 left!

0

520

Briggs & Stratton 691084

TERMINAL, Ground

$6.99

$

Usually ships in 2-12 days

0

564

Briggs & Stratton 690677

SCREW

Note: (Control Cover)

$4.49

$

In Stock, only 2 left!

0

578

Briggs & Stratton 844547

HARNESS, Wiring

$19.99

$

In Stock, Qty 18

0

663

Briggs & Stratton 692056

SCREW

Note: (Control Panel)

$5.99

$

In Stock, only 4 left!

0

664

Briggs & Stratton 691087

NUT

Note: (Key Switch)

$4.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 593826

CLIP, Wire

$5.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1084

Briggs & Stratton 848341

CONNECTOR, Terminal

$10.99

$

Usually ships in 2-12 days

0

1403

Briggs & Stratton 841552

SCREW

Note: (Wire Assembly)

$3.99

$

In Stock, only 1 left!

0
