359447-0110-E1 - Briggs & Stratton Horizontal Engine Alternator, Starter Solenoid, Armature Parts Diagram

Horizontal Engine

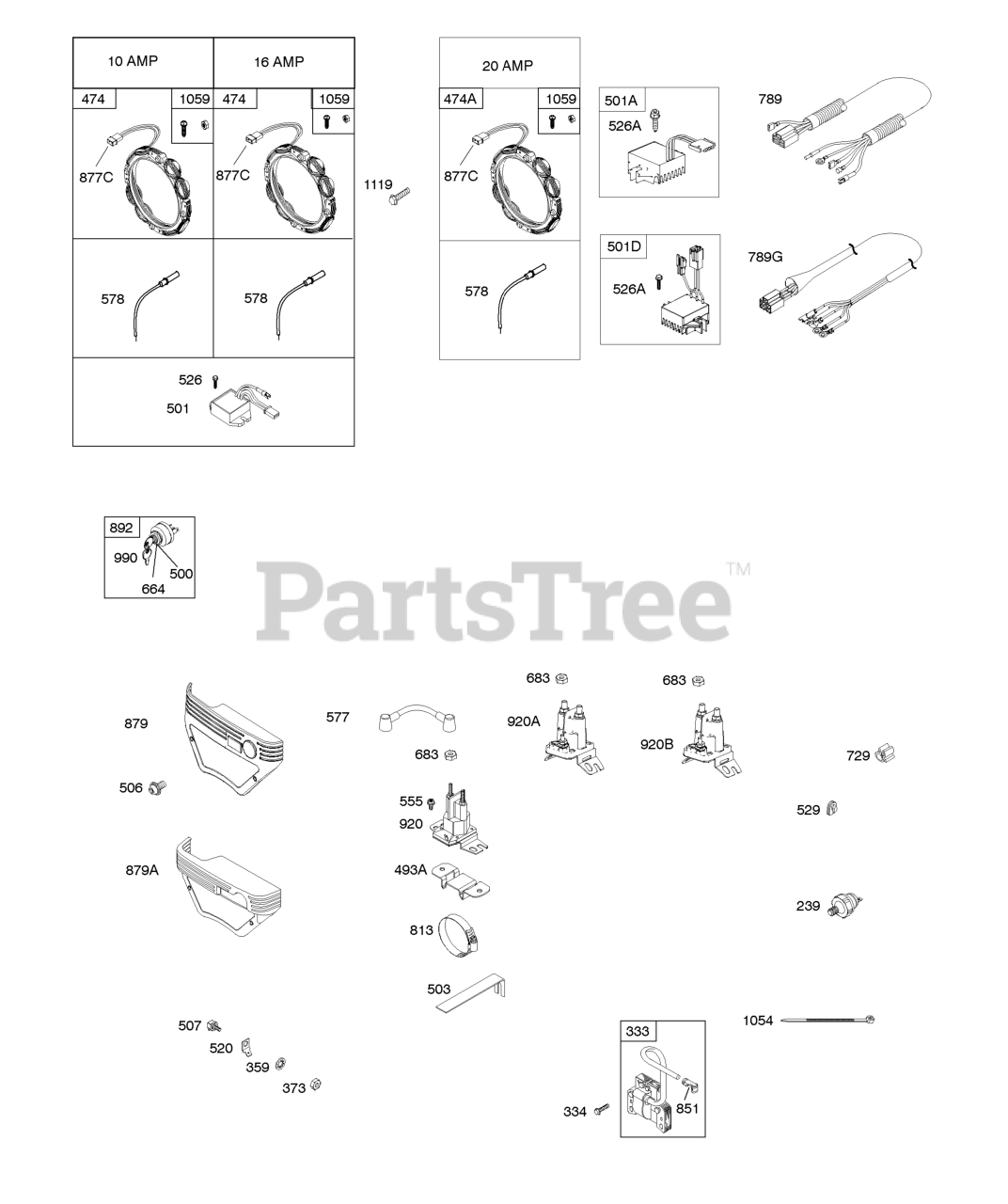

Alternator, Starter Solenoid, Armature Parts Diagram

  • Title

239

Briggs & Stratton 491657S

SWITCH, Oil Pressure

$35.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 845606

Armature-Magneto
(Superseded to 84003819)

$75.99

$

In Stock, Qty 8

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature)

$3.99

$

In Stock, Qty 5

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

474

Briggs & Stratton 592830

ALTERNATOR

Note: (10-16 Amp Regulated)

$111.99

$

In Stock, Qty 20+

0

493A

Briggs & Stratton 691177

BRACKET, Mounting

$25.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 691086

WASHER

Note: (Key Switch)

$4.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 845907

REGULATOR

Note: (16 Amp)

$67.99

$

In Stock, Qty 11

0

503

Briggs & Stratton 845016

Strap-Starter

Note: (60mm Long)

$6.49

$

Usually ships in 2-12 days

0

506

Briggs & Stratton 807120

Screw

Note: (Carburetor/EFI Cover)

$4.49

$

In Stock, only 3 left!

0

507

Briggs & Stratton 691972

Insulator

$9.49

$

In Stock, only 4 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.99

$

Usually ships in 2-12 days

0

526

Briggs & Stratton 692067

SCREW

Note: (Regulator) (M6x12mm)

$4.49

$

In Stock, Qty 9

0

529

Briggs & Stratton 690744

Grommet

$7.99

$

Usually ships in 2-12 days

0

555

Briggs & Stratton 692067

SCREW

Note: (Starter Solenoid)

$4.49

$

In Stock, Qty 9

0

577

Briggs & Stratton 690795

CABLE, Starter

$20.99

$

In Stock, only 3 left!

0

578

Briggs & Stratton 844547

Wire Assembly

$19.99

$

In Stock, Qty 18

0

683

Briggs & Stratton 691029

NUT

Note: (Starter Solenoid)

$5.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 690586

Clip-Wire

$4.49

$

In Stock, only 3 left!

0

813

Briggs & Stratton 690635

CLAMP

$25.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877C

Briggs & Stratton 399916

Wire/Connector-Alternator

$13.99

$

Usually ships in 2-12 days

0

879

Briggs & Stratton 841607

Cover-Carburetor/EFI

$25.99

$

Usually ships in 2-12 days

0

920B

Briggs & Stratton 846820

SOLENOID, Starter

$31.99

$

In Stock, Qty 7

0

990

Briggs & Stratton 691959

SET, Key

$8.49

$

In Stock, only 3 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$4.49

$

Usually ships in 2-12 days

0
