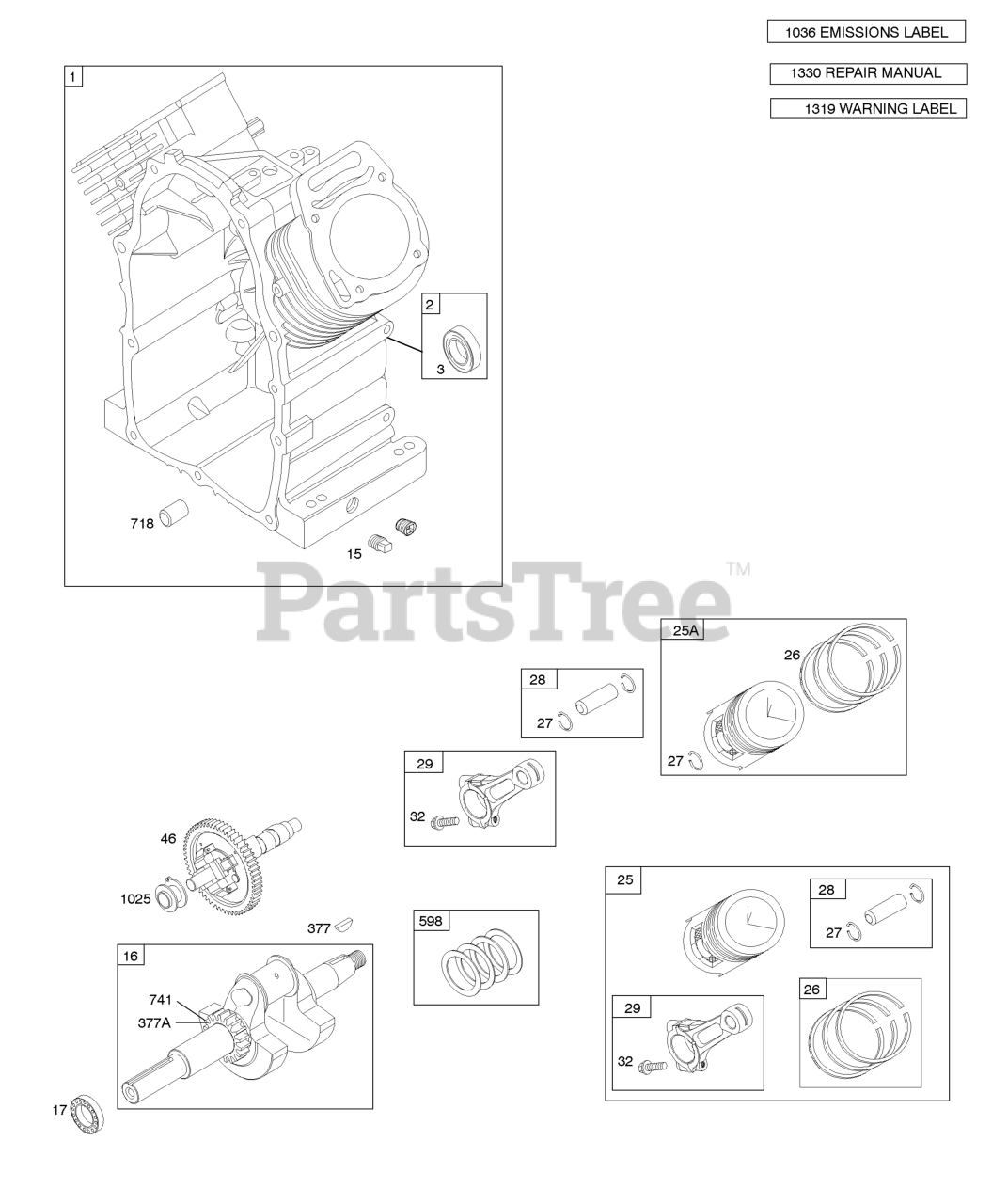

359447-0110-E1 - Briggs & Stratton Horizontal Engine Cylinder, Camshaft, Crankshaft, Piston, Rings, Connecting Rod Parts Diagram

Horizontal Engine

Cylinder, Camshaft, Crankshaft, Piston, Rings, Connecting Rod Parts Diagram

  • Title

1

Briggs & Stratton 808702

Cylinder Assembly

$

$

Not available

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$

$

Not available

3

Briggs & Stratton 805101S

Seal-Oil
(Superseded to 845659)

Note: (Magneto Side)

$13.99

$

In Stock, Qty 13

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

Note: (3/8"-18 NPTF - Internal 3/8" Sq)

$6.49

$

In Stock, Qty 8

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (3/8"-18 NPTF-External 7/16" Sq)

$6.49

$

In Stock, Qty 8

0

16

Briggs & Stratton 843797

Crankshaft

$457.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 843827

Bearing-Ball

$38.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 844540

Piston Assembly

Note: (Standard)

$164.99

$

Usually ships in 2-12 days

0

25A

Briggs & Stratton 843821

Piston Assembly

Note: (.020" Oversize)

$146.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 843822

Ring Set

Note: (.020" Oversize)

$59.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 843793

Ring Set

$57.99

$

In Stock, Qty 10

0

27

Briggs & Stratton 690683

Lock-Piston Pin

$5.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807886

Pin-Piston

$

$

Not available

29

Briggs & Stratton 807900S

Rod-Connecting

$61.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.99

$

In Stock, only 3 left!

0

46

Briggs & Stratton 845649

Camshaft

$203.99

$

Usually ships in 2-12 days

0

377

Briggs & Stratton 808095

Key-Woodruff

$14.99

$

Usually ships in 2-12 days

0

377A

Briggs & Stratton 691639

KEY, Woodruff

$4.99

$

In Stock, only 1 left!

0

598

Briggs & Stratton 807625

Shim-End Play

Note: (Crankshaft or Camshaft Bearing)

$21.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 806469

Pin-Locating

$6.49

$

In Stock, only 2 left!

0

741

Briggs & Stratton 846085

Gear-Timing

$20.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 690689

Spool-Governor

$24.99

$

In Stock, only 2 left!

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$23.99

$

In Stock, only 1 left!

0

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

Usually ships in 2-12 days

0
