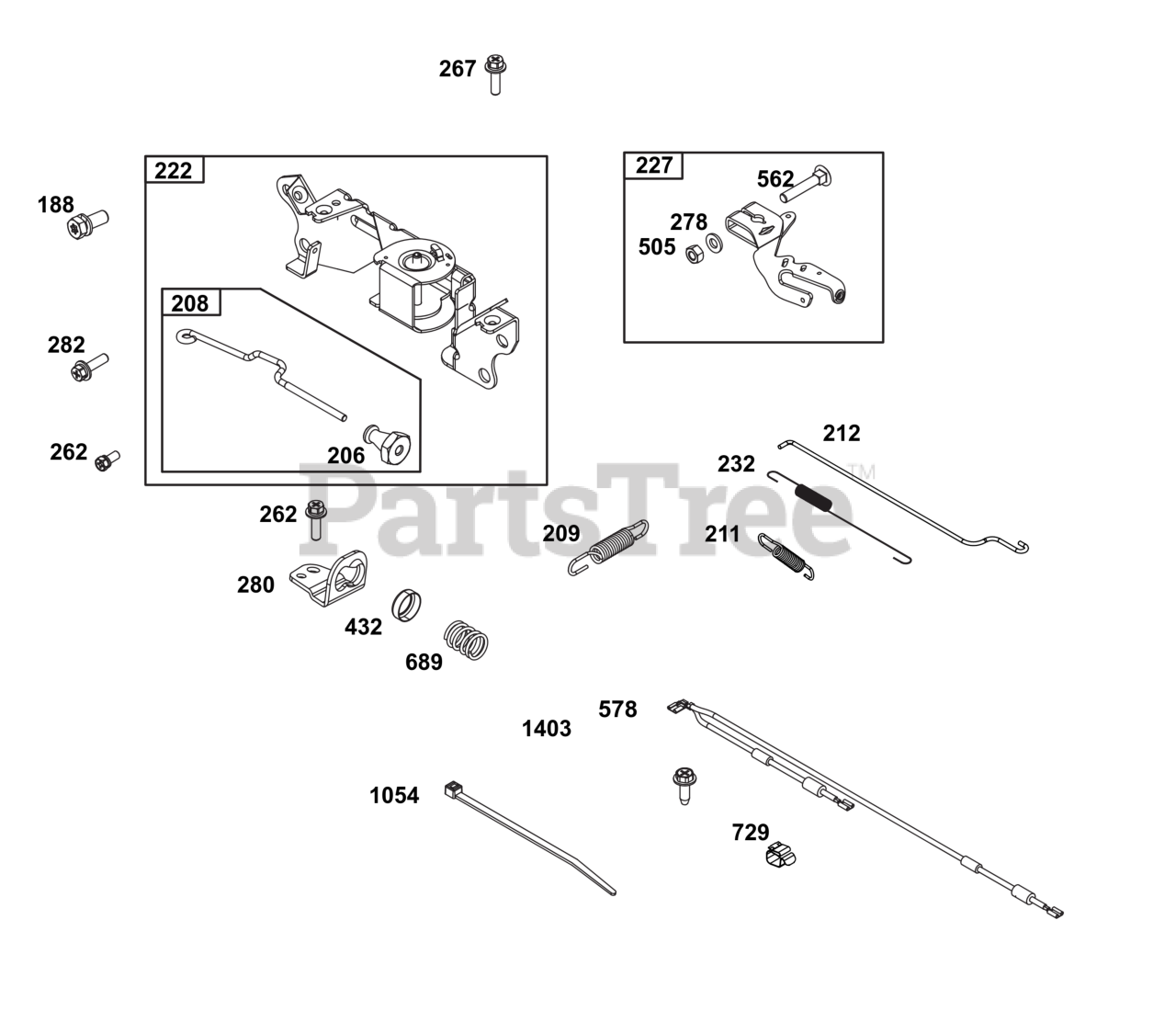

359447-0118-E1 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 691902

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 15

0

206

Briggs & Stratton 691244

NUT, Governor Adjusting

$15.99

$

Usually ships in 2-12 days

0

208

Briggs & Stratton 808453

ROD, Governor Control

$16.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 691506

SPRING, Governor

$8.49

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 692068

SPRING, Governed Idle

$5.49

$

Usually ships in 2-12 days

0

212

Briggs & Stratton 847015

LINK, Throttle

$6.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 808454

BRACKET, Control

$40.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 690236

LEVER, Governor Control

$29.99

$

In Stock, only 1 left!

0

232

Briggs & Stratton 692073

SPRING, Governor Link

$10.99

$

In Stock, Qty 7

0

262

Briggs & Stratton 841552

SCREW

Note: (Rod Bracket)

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 1 left!

0

278

Briggs & Stratton 842122

WASHER

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

280

Briggs & Stratton 691526

BRACKET, Fixed Speed

$10.99

$

Usually ships in 2-12 days

0

282

Briggs & Stratton 841552

SCREW

Note: (Control Lever)

$3.99

$

In Stock, only 1 left!

0

432

Briggs & Stratton 691509

CAP, Spring

$6.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 844752

NUT

Note: (Governor Control Lever)

$3.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 690239

BOLT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 844547

HARNESS, Wiring

$19.99

$

In Stock, Qty 18

0

689

Briggs & Stratton 691272

SPRING, Friction

$14.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 690586

CLIP, Wire

$4.49

$

In Stock, only 3 left!

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1403

Briggs & Stratton 841552

SCREW

Note: (Wire Assembly)

$3.99

$

In Stock, only 1 left!

0
