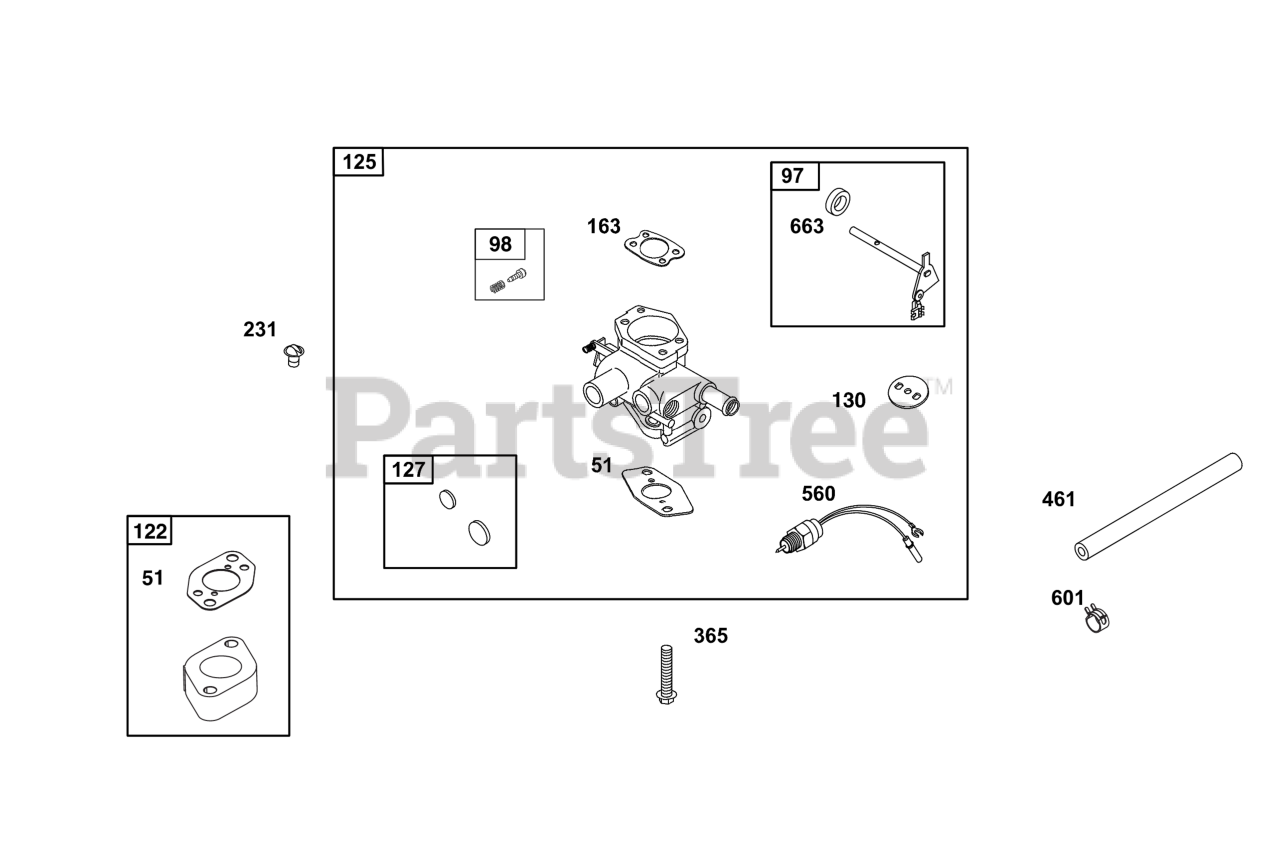

359775-0005-E1 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group)

$

$

Not available

97

Briggs & Stratton 808397

SHAFT, Throttle

$38.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808177

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 690747

SPACER, Carburetor

$12.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 808692

CARBURETOR

$371.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 806460

PLUG, Welch

$10.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 84003952

VALVE, THROTTLE

$15.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692081

GASKET, Air Cleaner

$5.49

$

In Stock, Qty 20+

0

231

Briggs & Stratton 690718

SCREW

Note: (Manifold to Cylinder Head)

$5.99

$

In Stock, only 1 left!

0

365

Briggs & Stratton 690711

SCREW

Note: (Manifold To Carburetor)

$6.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 312079GS

HOSE, Gaseous Fuel

$77.99

$

Usually ships in 2-12 days

0

560

Briggs & Stratton 808693

SWITCH, LP/NG Fuel

$159.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 843438

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

663

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0
