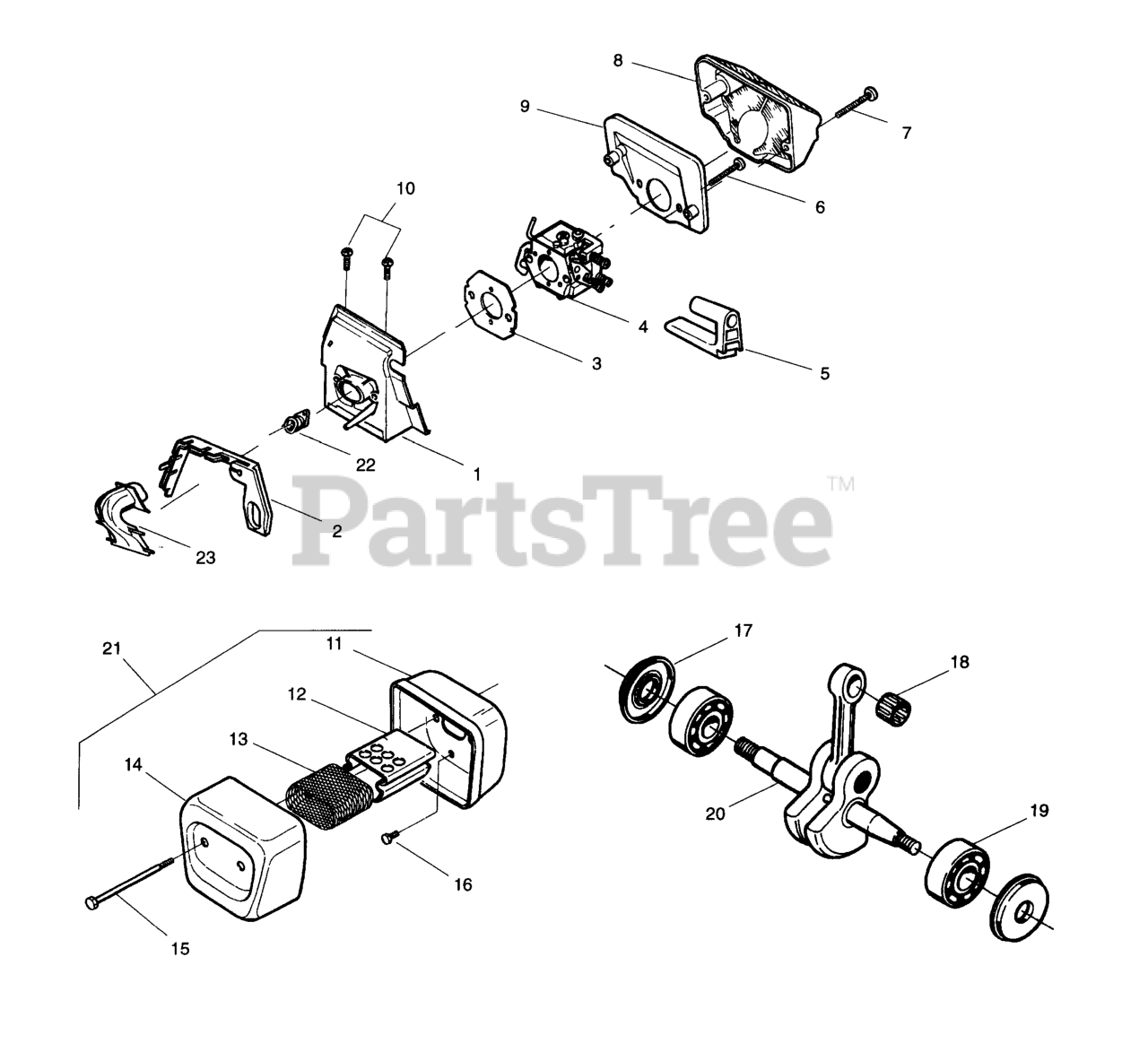

36 - Husqvarna Chainsaw (1997-07) Air Filter/Carburetor, Muffler, Crankshaft Parts Diagram

Chainsaw

Air Filter/Carburetor, Muffler, Crankshaft Parts Diagram

  • Title

1

Husqvarna 530037465

CARB ADAPTOR

$

$

Not available

2

Husqvarna 530019203

TURBO CLEAN SEAL

$

$

Not available

3

Husqvarna 530019172

GSKT,CARB 36/41

$5.99

$

In Stock, Qty 20+

0

4

Husqvarna 530035382

CARBURETOR WT350
(Superseded to 530069629)

$56.99

$

In Stock, only 2 left!

0

5

Husqvarna 530037466

GROMMET
(Superseded to 530029815)

$7.99

$

In Stock, only 1 left!

0

6

Husqvarna 530015968

STUD-CARBURETOR

$

$

Not available

7

Husqvarna 530015899

SCREW

$5.99

$

In Stock, only 3 left!

0

8

Husqvarna 530029811

AIR FILTER

$

$

Not available

9

Husqvarna 530036582

AIR FILTER (BOTTOM)

$

$

Not available

10

Husqvarna 530015905

SCREW,REAR HBAR 36/41
(Superseded to 530015814)

$3.49

$

In Stock, Qty 6

0

11

Husqvarna 530037251

SILENCER BODY

$

$

Not available

12

Husqvarna 530037246

FLAME PROTECTOR

$6.99

$

In Stock, only 3 left!

0

13

Husqvarna 530029810

SPARK ARRESTOR 36/41

$7.99

$

In Stock, Qty 5

0

14

Husqvarna 530037254

SILENCER COVER

$11.99

$

In Stock, only 2 left!

0

15

Husqvarna 530016044

BOLT

$4.99

$

In Stock, only 4 left!

0

16

Husqvarna 530015902

BOLT-MUFFLER(SUPPORT)

$4.99

$

In Stock, only 4 left!

0

17

Husqvarna 530019170

SEAL,C/SHAFT 36/41

$5.99

$

In Stock, Qty 7

0

18

Husqvarna 530032117

Piston Pin Bearing

$

$

Not available

19

Husqvarna 530032118

Crankshaft Bearing

$

$

Not available

20

Husqvarna 530029794

CRANKSHAFT ASSY 36/41
(Superseded to 503920801)

$

$

Not available

21

Husqvarna 530069415

MUFFLER KIT

Note: (Includes 11, 12, 14 & 15)

$43.99

$

In Stock, only 1 left!

0

22

Husqvarna 530029814

INTAKE PIPE

$13.99

$

In Stock, only 1 left!

0

23

Husqvarna 530029813

INTAKE HORN

$

$

Not available
