36 - Husqvarna Chainsaw (1997-07) Chain Brake Assembly, Top Cover, Piston/Cylinder Parts Diagram

Chainsaw

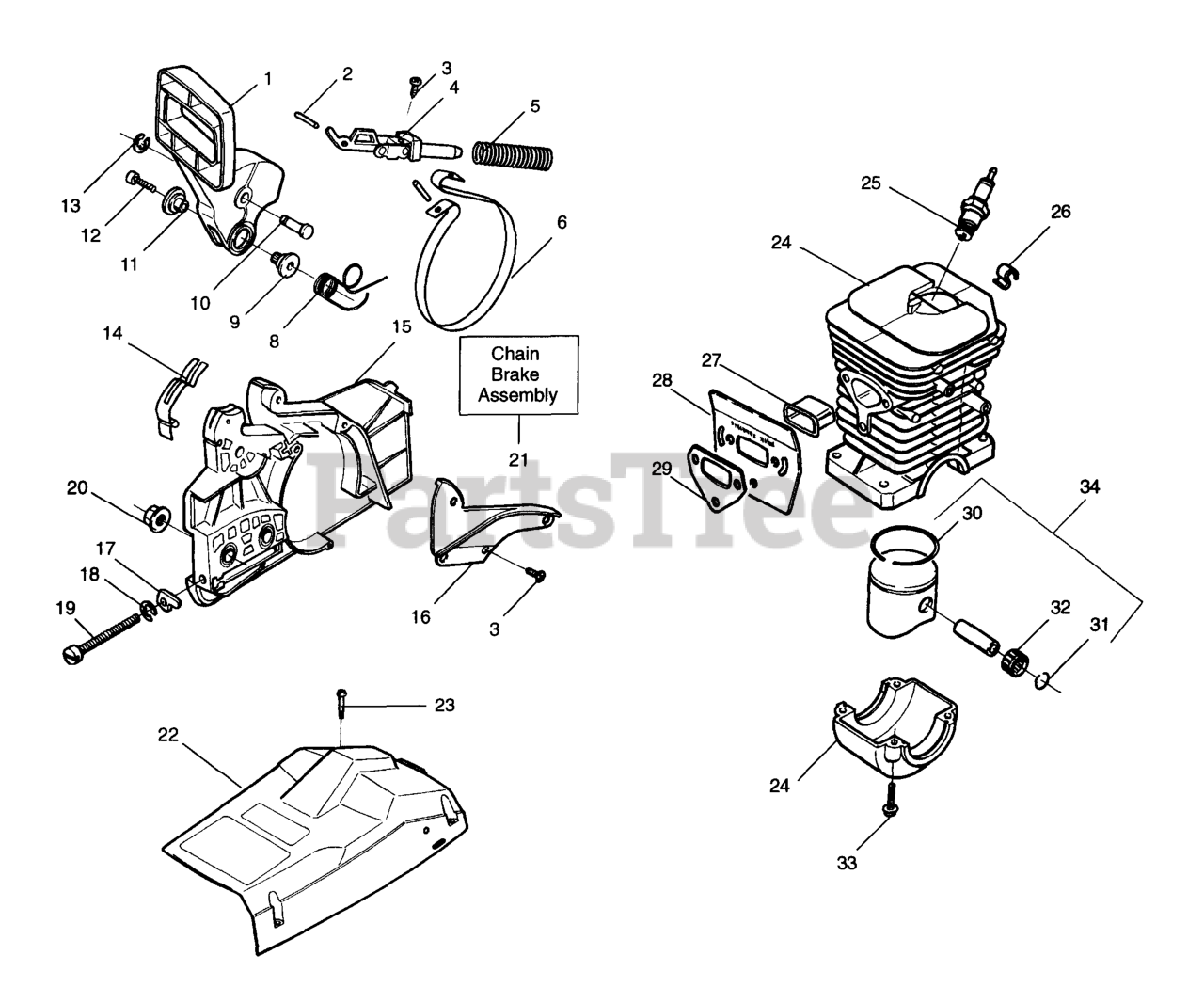

Chain Brake Assembly, Top Cover, Piston/Cylinder Parts Diagram

  • Title

1

Husqvarna 530014305

BRAKE HANDLE ASS'Y 36/41
(Superseded to 530071348)

$

$

Not available

2

Husqvarna 720123300

PIN 3X10

$2.49

$

In Stock, Qty 9

0

3

Husqvarna 530015911

SCREW
(Superseded to 574780301)

$5.99

$

In Stock, only 1 left!

0

4

Husqvarna 530014356

Front and Rear Link Assembly

$

$

Not available

5

Husqvarna 501875401

SPRING

$

$

Not available

6

Husqvarna 530029874

BRAKE BAND 36/41
(Superseded to 545137401)

$6.99

$

In Stock, only 2 left!

0

8

Husqvarna 530015910

SPRING,BRK HDL 36/41

$5.99

$

In Stock, Qty 12

0

9

Husqvarna 501768101

PIVOT SLEEVE L

$

$

Not available

10

Husqvarna 530029879

PIVOT PIN

$

$

Not available

11

Husqvarna 501768001

PIVOT SLEEVE R

$5.99

$

In Stock, Qty 12

0

12

Husqvarna 530015914

SCREW

$3.49

$

In Stock, Qty 7

0

13

Husqvarna 530038593

RETAINER

$3.49

$

In Stock, Qty 13

0

14

Husqvarna 530029878

SPRING-POSITION

$5.99

$

In Stock, Qty 6

0

15

Husqvarna 530037547

CLUTCH COVER
(Superseded to 530053173)

$

$

Not available

16

Husqvarna 530037546

LID, CLUTCH COVER
(Superseded to 530053173)

$

$

Not available

17

Husqvarna 530016109

PIN-BAR ADJUST
(Superseded to 530015826)

$5.99

$

In Stock, Qty 19

0

18

Husqvarna 530038593

RETAINER

$3.49

$

In Stock, Qty 13

0

19

Husqvarna 530016110

BAR ADJUSTING SCREW

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 530015917

BAR NUT

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 530014910

CHAINBRAKE
(Superseded to 530053173)

Note: (Includes 1 thru 20)

$

$

Not available

22

Husqvarna 530047609

CYLINDER SHIELD ASSY

$

$

Not available

23

Husqvarna 530016154

SCREW

$3.49

$

In Stock, Qty 20+

0

24

Cylinder Kit

$

$

Not available

Husqvarna 530069417

CYLINDER 36CC
(Superseded to 530069940)

Note: Used on models 36

$

$

Not available

Husqvarna 530069414

CYLINDER (40CC)
(Superseded to 530069941)

Note: Used on models 41

$

$

Not available

25

Husqvarna 952030150

Spark Plug (RCJ-7Y)
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 530015696

CLIP - HIGH TENSION LE

$

$

Not available

27

Husqvarna 530037652

HEAT INSULATOR

$

$

Not available

28

Husqvarna 530037640

MUFFLER PLATE

$

$

Not available

29

Husqvarna 530019205

GASKET

$5.99

$

In Stock, only 1 left!

0

30

Husqvarna 530029805

PISTON RING 36

$5.99

$

In Stock, Qty 10

0

31

Husqvarna 530015697

C-CLIP,PSTN PIN 36/41

$3.49

$

In Stock, only 1 left!

0

32

Husqvarna 530032117

Piston Pin Bearing

$

$

Not available

33

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$3.49

$

In Stock, Qty 19

0

34

Piston Ring

Note: (Includes 30 - 32)

$

$

Not available

Husqvarna 530069317

PISTON COMPL. HV36
(Superseded to 530069944)

Note: Used on models 36

$

$

Not available

Husqvarna 530069454

KIT-PISTON

Note: Used on models 41

$

$

Not available

Husqvarna 530031135

SCRENCH
(Superseded to 587417201)

Note: Not Shown

$9.49

$

In Stock, Qty 19

0

Husqvarna 101869562

OPERATORS MAN 36/41 3/15/96

Note: Not Shown

$

$

Not available

Husqvarna 530031136

PULLER WORM GEAR

Note: Not Shown

$

$

Not available

Husqvarna 530031112

CLUTCH TOOL

Note: Not Shown

$20.99

$

In Stock, only 3 left!

0

Husqvarna 530029887

DECAL,WARNING (36 USA)

Note: Not Shown

$

$

Not available

Husqvarna 530037912

Scabbard
(Superseded to 596703701)

Note: Not Shown

$9.49

$

In Stock, only 1 left!

0
