36 - Husqvarna Chainsaw (1997-07) Starter, Ignition, Tank Assembly And Throttle Trigger Kit Parts Diagram

Chainsaw

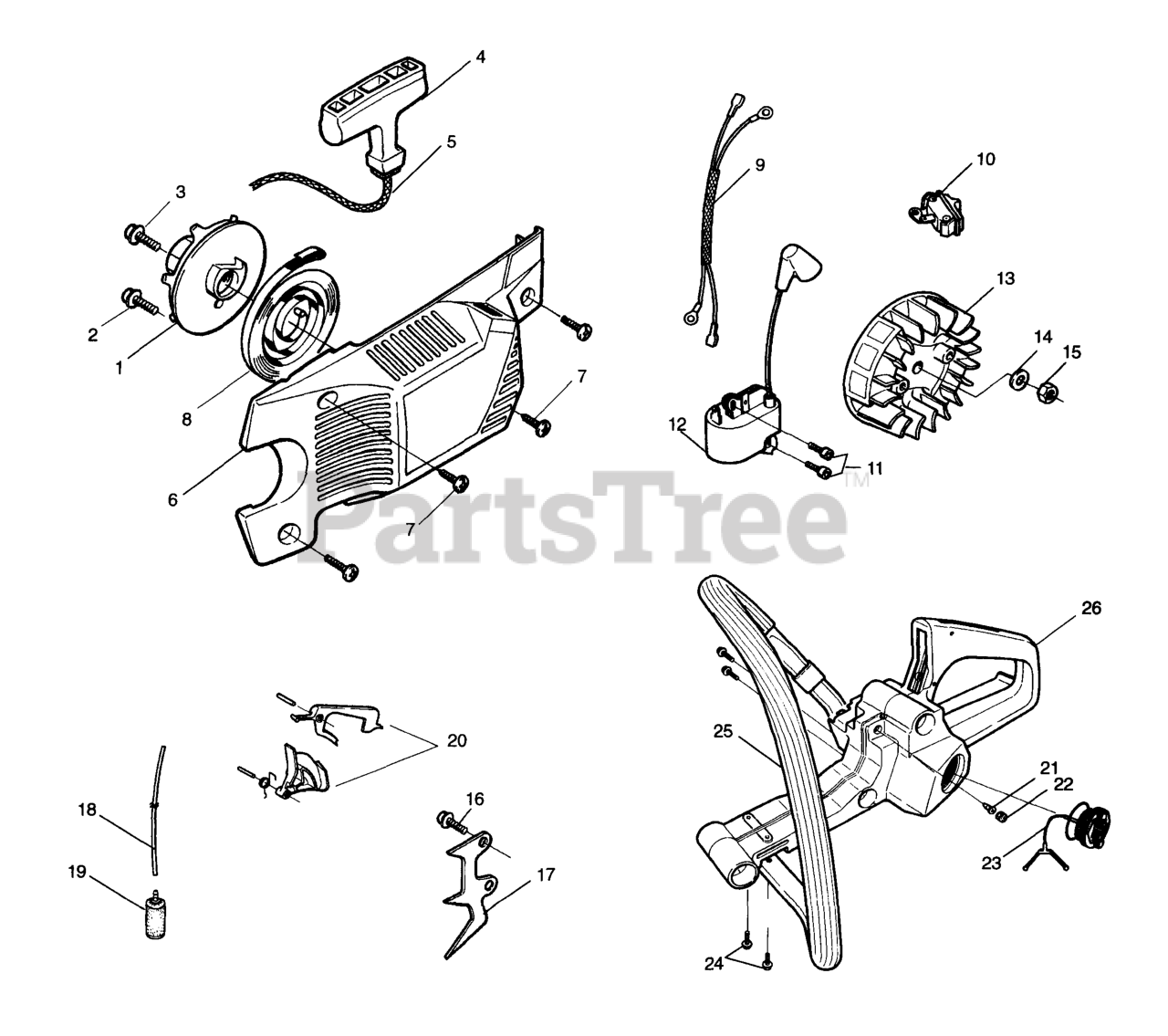

Starter, Ignition, Tank Assembly And Throttle Trigger Kit Parts Diagram

  • Title

1

Husqvarna 530069313

PULLEY 36/41

$

$

Not available

2

Husqvarna 530015920

SCREW

$3.49

$

In Stock, Qty 6

0

3

Husqvarna 530016080

SCREW

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 530038491

STARTER HANDLE
(Superseded to 530150318)

$5.99

$

In Stock, Qty 11

0

5

Husqvarna 530069232

KIT-ROPE

$5.99

$

In Stock, only 1 left!

0

6

Husqvarna 530047599

FAN HOUSING ASSEMBLY
(Superseded to 530049811)

$

$

Not available

7

Husqvarna 530015892

SCREW,STRTR CVR 36/41

$3.49

$

In Stock, only 4 left!

0

8

Husqvarna 501763101

RECOIL SPRING

$17.99

$

In Stock, Qty 7

0

9

Husqvarna 530037468

ASSY-SWITCH WIRE
(Superseded to 530403257)

$

$

Not available

10

Husqvarna 503717901

SWITCH ON/OFF

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 530015895

SCREW,IGN MOD 36/41

$

$

Not available

12

Husqvarna 530039143

%IGNITION MODULE
(Superseded to 575803501)

$22.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530039147

ROTOR COMPL. 36/41
(Superseded to 575635502)

$31.99

$

In Stock, Qty 7

0

14

Husqvarna 530015127

WASHER-FLYWHEEL

$3.49

$

In Stock, Qty 10

0

15

Husqvarna 530016071

NUT

$

$

Not available

16

Husqvarna 530015906

SCREW,FRONT HBAR 36/41

$3.49

$

In Stock, Qty 9

0

17

Husqvarna 530014381

SPIKE 36/41

$9.49

$

In Stock, only 2 left!

0

18

Husqvarna 530069247

HOSE. FUEL

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 530014497

FUEL PICK-UP
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 530069587

THROTTLE TRIGGER-KIT

$

$

Not available

21

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 17

0

22

Husqvarna 530029868

VENT,FUEL TANK 36/41

$5.99

$

In Stock, Qty 9

0

23

Husqvarna 501819602

FUEL/OIL CAP
(Superseded to 537215207)

$11.99

$

Usually ships in 3-10 days

0

24

Husqvarna 530015906

SCREW,FRONT HBAR 36/41

$3.49

$

In Stock, Qty 9

0

25

Husqvarna 530014290

Handle

$

$

Not available

26

Husqvarna 530014884

TANK/HANDLE ASSY

$

$

Not available
