36 - Husqvarna Chainsaw (SN: 19941800001 & Above) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

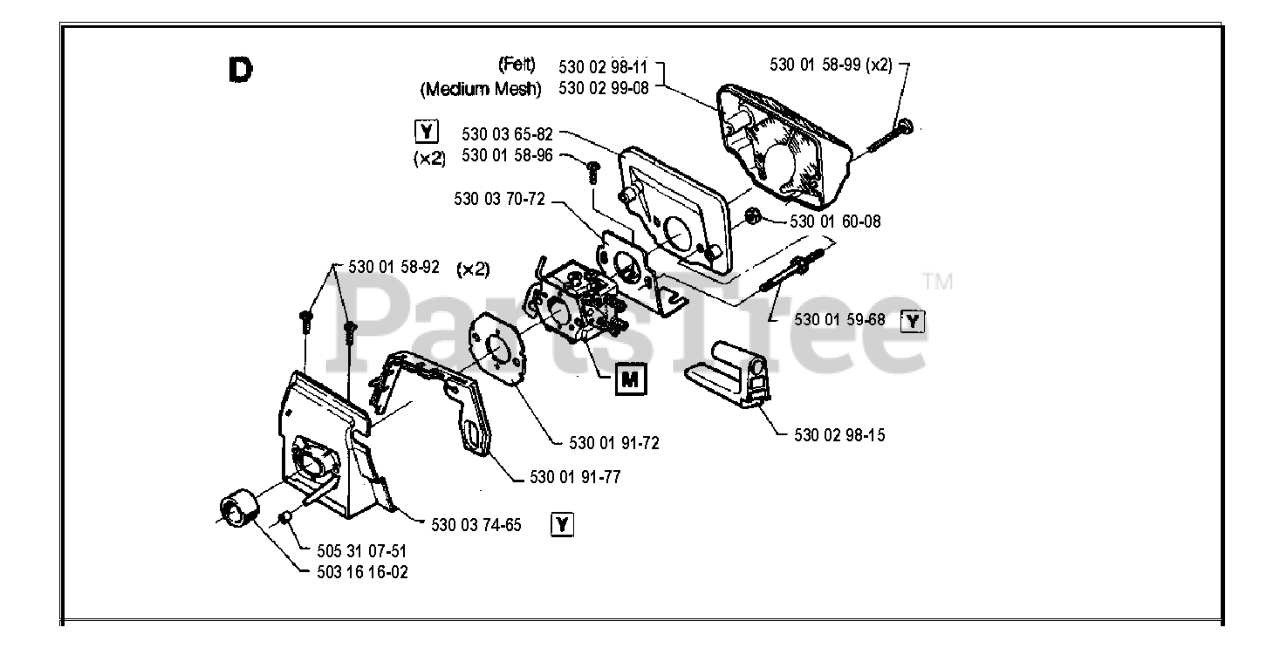

CARBURETOR & AIR FILTER Parts Diagram

  • Title

503 16 16-02

Husqvarna 503161602

INDUCTION PIPE
(Superseded to 530029814)

$13.99

$

In Stock, Qty 17

0

530 02 99-08

Husqvarna 530029908

AIR FLTR,MED MESH 36/41

Note: MEDIUM MESH

$

$

Not available

530 01 60-08

Husqvarna 530016008

NUT 5M

$2.23

$

In Stock, only 3 left!

0

530 03 65-82

Husqvarna 530036582

AIR FILTER (BOTTOM)

$4.99

$

Usually ships in 3-10 days

0

530 01 91-72

Husqvarna 530019172

GSKT,CARB 36/41

$6.49

$

In Stock, Qty 20+

0

530 03 74-65

Husqvarna 530037465

CARB ADAPTOR

$

$

Not available

530 01 58-96

Husqvarna 530015896

SCREW

$6.49

$

In Stock, Qty 13

0

505 31 07-51

Husqvarna 505310751

IMPULSE PIPE

$10.99

$

In Stock, Qty 15

0

530 02 98-11

Husqvarna 530029811

AIR FILTER

Note: FELT

$

$

Not available

530 01 58-99

Husqvarna 530015899

SCREW

$6.49

$

In Stock, Qty 15

0

530 02 98-15

Husqvarna 530029815

GUIDE

$4.99

$

In Stock, Qty 5

0

530 01 59-68

Husqvarna 530015968

STUD-CARBURETOR

$

$

Not available

530 01 91-77

Husqvarna 530019177

HEAT SHIELD,RBBR 36/41

$

$

Not available

530 03 70-72

Husqvarna 530037072

PLATE-SUPPORT
(Superseded to 530047767)

$

$

Not available

530 01 58-92

Husqvarna 530015892

SCREW,STRTR CVR 36/41

$6.49

$

In Stock, Qty 20+

0
