36 R - Husqvarna String Trimmer (1981-11) Piston/Cylinder Parts Diagram

String Trimmer

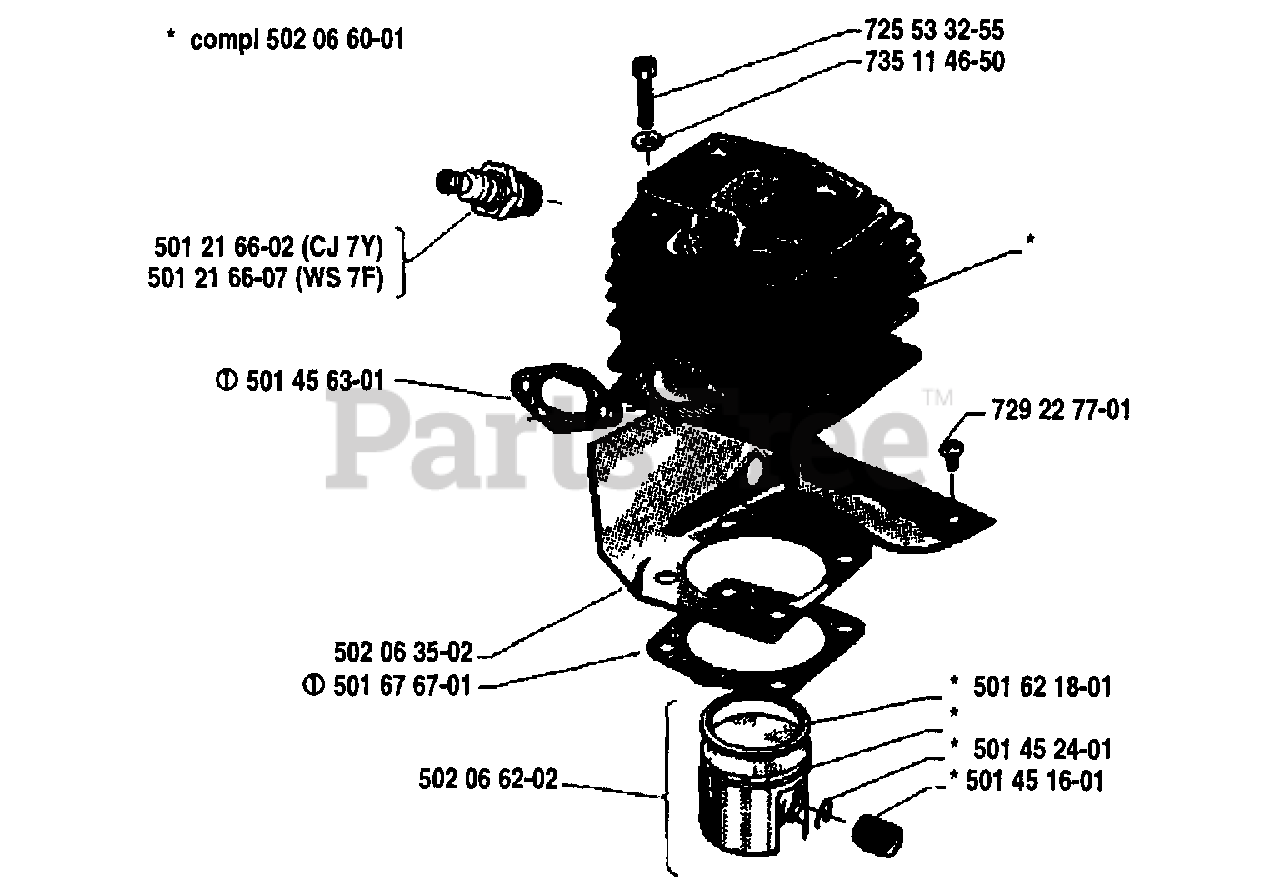

Piston/Cylinder Parts Diagram

  • Title

502066001

Husqvarna 502066001

CYLINDER COMPL
(Superseded to 501672471)

$

$

Not available

501216602

Husqvarna 501216602

REPL BY 503 23 50-11
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

501216607

Husqvarna 501216607

S. PLUG
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

501456301

Husqvarna 501456301

GASKET
(Superseded to 501456302)

$2.49

$

Usually ships in 3-10 days

0

502063502

Husqvarna 502063502

USE 502 063503 HEAT GUARD

$

$

Not available

501676701

Husqvarna 501676701

CYL. GSKT
(Superseded to 501676703)

$5.99

$

In Stock, only 1 left!

0

725533255

Husqvarna 725533255

SCREW MC6S 5X22

$2.49

$

Usually ships in 3-10 days

0

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$4.99

$

In Stock, only 1 left!

0

729227701

Husqvarna 729227701

SCREW CSK B6X8
(Superseded to 503212810)

$3.99

$

In Stock, Qty 20+

0

501621801

Husqvarna 501621801

PISTON RING
(Superseded to 503289001)

$

$

Not available

501452401

Husqvarna 501452401

LOCKING RING
(Superseded to 737441000)

$6.49

$

In Stock, only 2 left!

0

501451601

Husqvarna 501451601

SUPPORT BUSHING

$24.99

$

In Stock, only 4 left!

0

502066202

Husqvarna 502066202

PISTON A

$

$

Not available
