360 - Shindaiwa Chainsaw (Original Version) Carburetor (Non EPA/CARB) Parts Diagram

Chainsaw

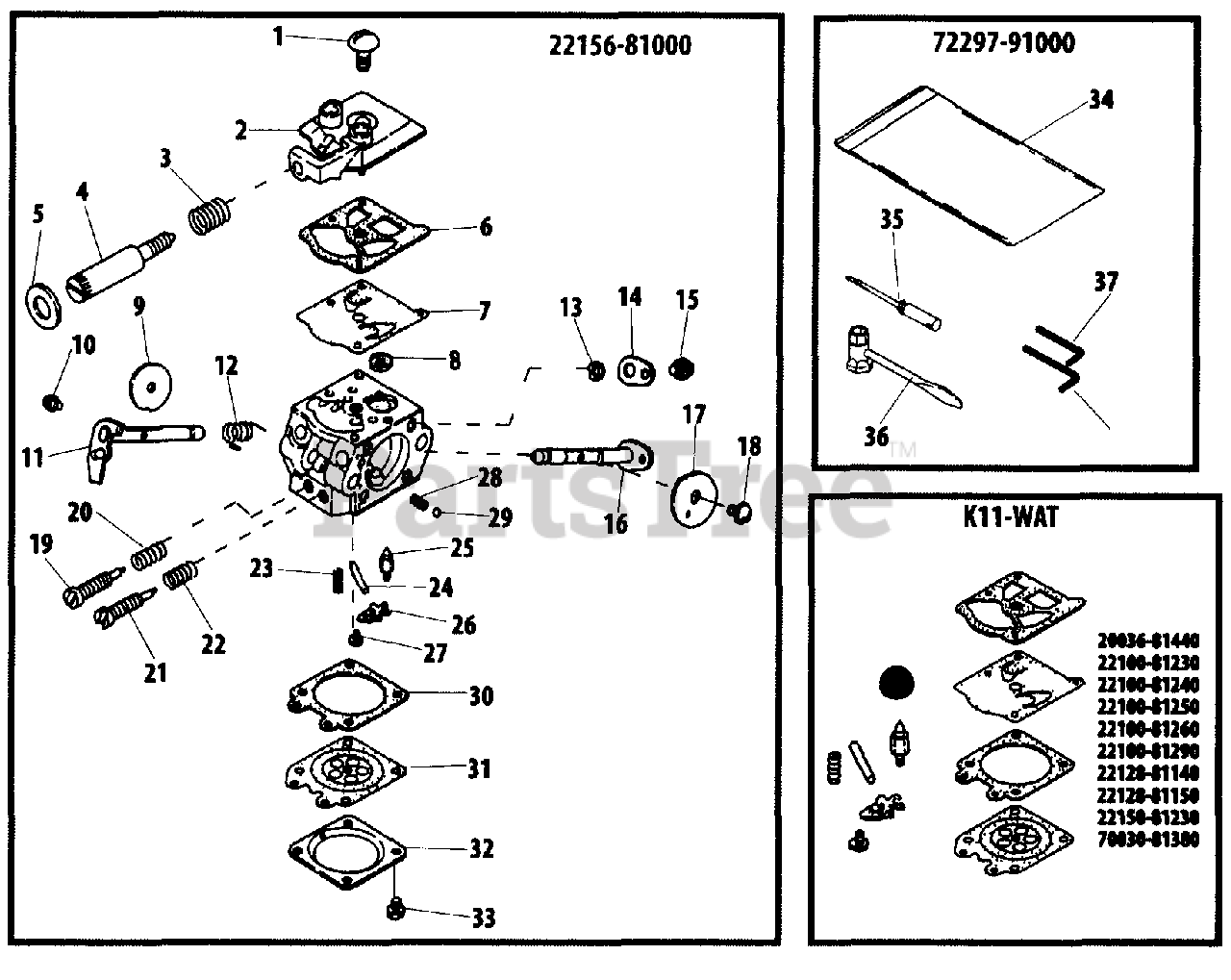

Carburetor (Non EPA/CARB) Parts Diagram

  • Title

22156-81000

Echo 22156-81000

CARBURETOR
(Superseded to A021002860)

$151.99

$

In Stock, only 1 left!

0

1

Echo 22100-81130

SCREW
(Superseded to 12311003930)

$0.99

$

Usually ships in 2-4 days

0

2

Echo 22156-81120

COVER ASSY, PUMP
(Superseded to P003001380)

$5.99

$

Usually ships in 2-4 days

0

3

Echo 22156-81420

SPRING, IDLE ADJUST
(Superseded to 12313304260)

$7.49

$

In Stock, only 1 left!

0

4

Echo 22156-81410

SCREW, IDLE ADJUST
(Superseded to P003003030)

$13.99

$

Usually ships in 2-4 days

0

5

Echo 22156-81440

SEAL, COLLAR
(Superseded to V540000290)

$2.99

$

Usually ships in 2-4 days

0

6

Echo 22128-81140

GASKET, PUMP
(Superseded to 12312515030)

$3.49

$

In Stock, only 1 left!

0

7

Echo 22128-81150

DIAPHRAGM, PUMP
(Superseded to 12311215030)

$6.99

$

In Stock, only 2 left!

0

8

Echo 70030-81380

SCREEN, FUEL INLET
(Superseded to 12312610631)

$1.99

$

In Stock, only 3 left!

0

9

Echo 22104-81340

VALVE, THROTTLE
(Superseded to 12311610530)

$2.49

$

Usually ships in 2-4 days

0

10

Echo 22150-81420

SCREW ASSY
(Superseded to 12315410630)

$

$

Not available

11

Echo 22156-81370

SHAFT, THROTTLE
(Superseded to P003003010)

$5.99

$

Usually ships in 2-4 days

0

12

Echo 22100-81410

SPRING, THROTTLE RETURN

$0.99

$

Usually ships in 2-4 days

0

13

Echo 70030-81390

E-RING
(Superseded to 12312715030)

$0.99

$

In Stock, Qty 5

0

14

Echo 22156-81380

LEVER, THROTTLE
(Superseded to P003003020)

$4.99

$

Usually ships in 2-4 days

0

15

Echo 22100-81360

SCREW
(Superseded to 12311403930)

$1.49

$

In Stock, Qty 8

0

16

Echo 22156-81740

SHAFT, CHOKE

$19.99

$

Usually ships in 2-4 days

0

17

Echo 22156-81710

VALVE, CHOKE
(Superseded to 12313237330)

$1.99

$

Usually ships in 2-4 days

0

18

Echo 22100-81351

SCREW
(Superseded to 12313002960)

$1.99

$

In Stock, only 1 left!

0

19

Echo 22156-81170

NEEDLE, LOW SPEED
(Superseded to 12311830330)

$12.99

$

Usually ships in 2-4 days

0

20

Echo 22156-81160

SPRING, NEEDLE
(Superseded to 12312122130)

$3.99

$

Usually ships in 2-4 days

0

21

Echo 22156-81330

NEEDLE, HIGH SPEED
(Superseded to 12312009560)

$7.99

$

Usually ships in 2-4 days

0

22

Echo 22156-81320

SPRING, HIGH NEEDLE
(Superseded to 12311922130)

$3.49

$

Usually ships in 2-4 days

0

23

Echo 22120-81270

SPRING, METERING LEVER
(Superseded to 12312206530)

$1.99

$

Usually ships in 2-4 days

0

24

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$6.99

$

In Stock, only 3 left!

0

25

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$22.99

$

Usually ships in 2-4 days

0

26

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$7.99

$

In Stock, only 1 left!

0

27

Echo 22100-81240

SCREW, METERING LEVER PIN
(Superseded to 12313903930)

$6.99

$

Usually ships in 2-4 days

0

28

Echo 22150-81730

SPRING
(Superseded to 12313510630)

$1.49

$

Usually ships in 2-4 days

0

29

Echo 22150-81720

BALL, CHOKE FRICTION
(Superseded to 12313610630)

$0.99

$

In Stock, only 1 left!

0

30

Echo 22100-81290

GASKET, METERING DIAPHRAGM
(Superseded to 12314003930)

$1.99

$

In Stock, only 3 left!

0

31

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$15.99

$

In Stock, only 3 left!

0

32

Echo 22100-81280

COVER, METERING DIAPHRAGM
(Superseded to 12314203930)

$4.99

$

In Stock, only 1 left!

0

33

Echo 22100-81351

SCREW
(Superseded to 12313002960)

$1.99

$

In Stock, only 1 left!

0

72297-91000

Echo 72297-91000

TOOL KIT, SERVICE

$

$

Not available

34

Echo 19639-01100

BAG, TOOL
(Superseded to X705000130)

$2.99

$

Usually ships in 2-4 days

0

35

Echo 22150-91160

SCREWDRIVER
(Superseded to Discontinued)

$

$

Not available

36

Echo 22150-91410

T-WRENCH 13×19 MM
(Superseded to X602000170)

$5.49

$

Usually ships in 2-4 days

0

37

Echo 09026-03001

WRENCH, ALLEN 3 MM
(Superseded to X605000090)

$0.99

$

In Stock, only 2 left!

0

38

Echo 09026-04001

WRENCH, ALLEN 4 MM
(Superseded to X605000100)

$1.99

$

In Stock, only 3 left!

0

K11-WAT

Echo K11-WAT

REPAIR KIT
(Superseded to K20-WAT)

$33.99

$

In Stock, Qty 7

0
