360 - Shindaiwa Chainsaw (Original Version) Crankcase Parts Diagram

Chainsaw

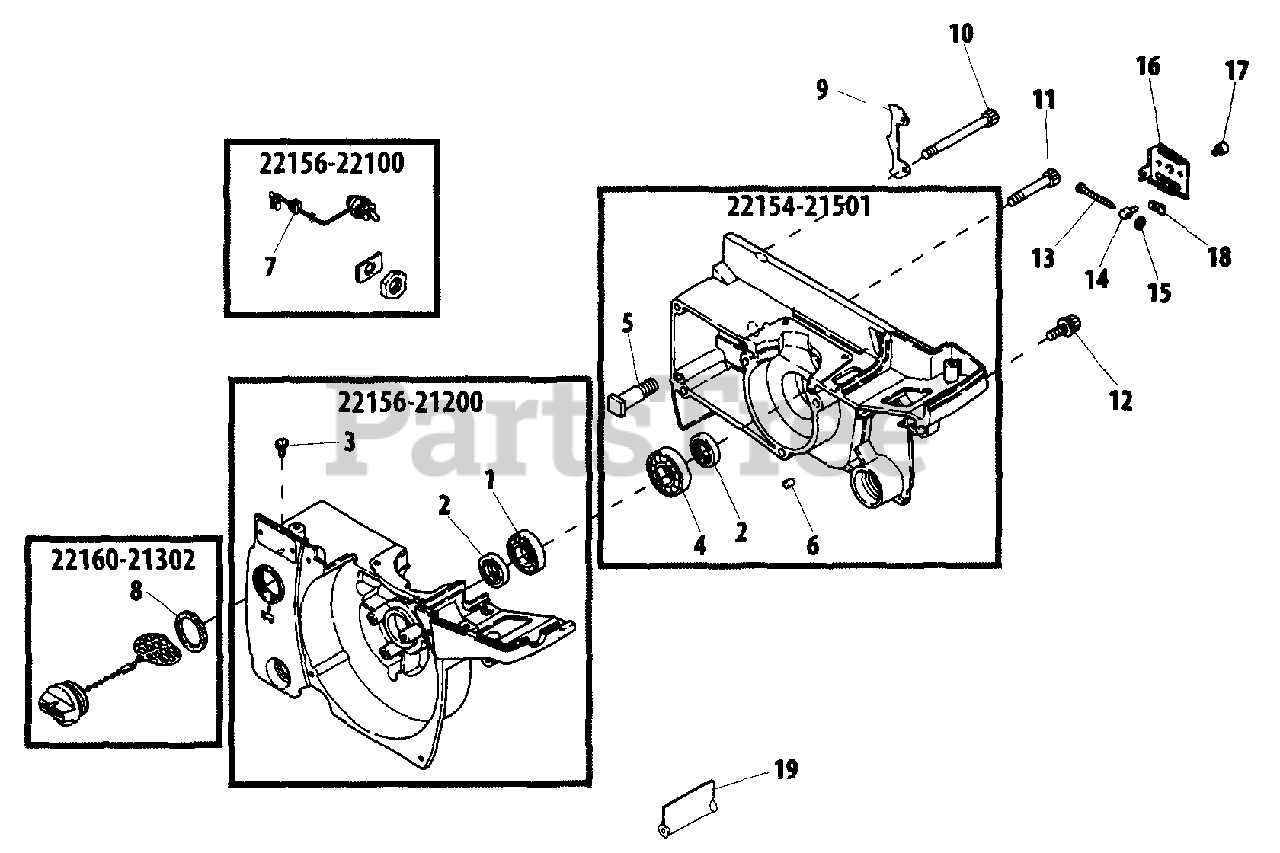

Crankcase Parts Diagram

  • Title

22156-21200

Echo 22156-21200

CRANKCASE ASSY - LEFT

$106.99

$

Usually ships in 2-4 days

0

1

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

2

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 7

0

3

Echo 22115-57120

VALVE, OIL
(Superseded to A356000130)

$4.49

$

Usually ships in 2-4 days

0

22154-21501

Echo 22154-21501

CRANKCASE ASSY - RIGHT
(Superseded to 22154-21502)

$108.99

$

Usually ships in 2-4 days

0

2

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 7

0

4

Echo 12900-62010

BEARING, BALL - 6201C3
(Superseded to V592000110)

$7.99

$

In Stock, Qty 12

0

5

Echo 22154-21520

STUD, GUIDE BAR
(Superseded to V225000120)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

22156-22100

Echo 22156-22100

IGNITION SWITCH ASSY
(Superseded to A045000450)

$11.99

$

Usually ships in 2-4 days

0

7

Echo 22156-22150

GROMMET

$6.99

$

Usually ships in 2-4 days

0

22160-21302

Echo 22160-21302

CAP ASSY
(Superseded to C020000020)

$9.99

$

In Stock, Qty 17

0

8

Echo 22160-21351

GASKET
(Superseded to V106000080)

$1.99

$

In Stock, Qty 20+

0

9

Echo 22154-52530

SPIKE
(Superseded to C304000090)

$4.99

$

Usually ships in 2-4 days

0

10

Echo 11060-05450

SCREW - 5X45
(Superseded to V203001240)

$1.99

$

Usually ships in 2-4 days

0

11

Echo 11060-05300

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

12

Echo 11060-05182

SCREW - 5X18

$1.99

$

Usually ships in 2-4 days

0

13

Echo 22154-52421

SCREW, ADJUST
(Superseded to V253000590)

$1.99

$

In Stock, Qty 9

0

14

Echo 22150-52440

TENSIONER, CHAIN
(Superseded to C309000110)

$2.49

$

In Stock, Qty 18

0

15

Echo 22154-52450

NUT
(Superseded to V260000020)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 22154-52460

GUARD, MOUNT
(Superseded to C305000140)

$3.99

$

Usually ships in 2-4 days

0

17

Echo 22154-52490

BAR PIN
(Superseded to V203001260)

$1.99

$

In Stock, only 2 left!

0

18

Echo 22154-52470

GUIDE, CHAIN
(Superseded to C301000000)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 22154-82320

SHUTTER

$3.49

$

Usually ships in 2-4 days

0
