360 (UT-10544) - Homelite Chainsaw Handles & Tanks Parts Diagram

Chainsaw

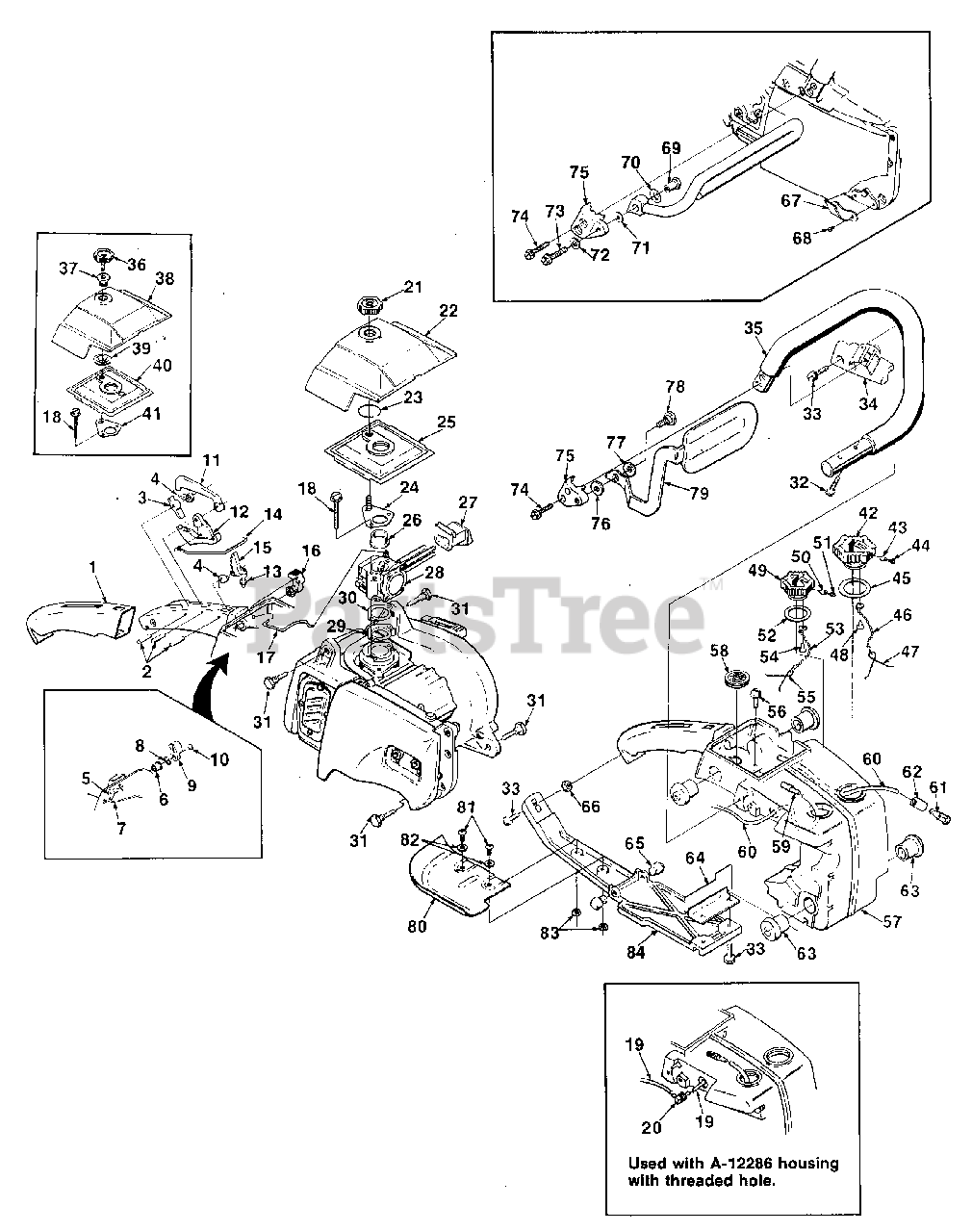

Handles & Tanks Parts Diagram

  • Title

1

Homelite 12049

GRIP- Throttle handle

$

$

Not available

2

Homelite 70253

PIN- Dowel

$

$

Not available

3

Homelite 12092

LEVER- Trigger lock

$

$

Not available

4

Homelite 12051

SPRING- Torsion

$

$

Not available

5

Homelite A12227

SHAFT- Choke (prior to lot # 1054)

$

$

Currently unavailable

6

Homelite 12147

BUSHING (prior to lot #1054)

$

$

Currently unavailable

7

Homelite 12149A

ROD- Choke (prior to lot #1054)

$

$

Currently unavailable

8

Homelite 12150

WASHER- Wave (prior to lot #1054)

$

$

Currently unavailable

9

Homelite 12145

KNOB- Choke (prior to lot #1054)

$

$

Not available

10

Homelite 88042

SCREW- 8-32 x 1/2 (prior to lot #1054)

$

$

Not available

11

Homelite 12093

LOCK- Trigger

$

$

Not available

12

Homelite A12966

KIT- Trigger & Screw

$

$

Currently unavailable

13

Homelite 120941A

SCREW- Trigger latch

$

$

Currently unavailable

14

Homelite 120781A

ROD- Throttle

$

$

Currently unavailable

15

Homelite 120911A

LATCH- Trigger

$

$

Currently unavailable

16

Homelite 94765

KNOB- Choke (After lot #1054)

$

$

Not available

17

Homelite 94977

ROD- Choke (After lot #1054)

$

$

Not available

18

Homelite 93460

SCREW- Hex sems 10-24 x 1.75

$

$

Not available

19

Homelite 9311219

TUBING- Rubber (oil) 4 3/4"

$

$

Not available

20

Homelite 12135

FITTING- Oil line

$

$

Currently unavailable

Homelite A94055A

KIT- Air filter cover

$

$

Currently unavailable

21

Homelite A676392

NUT- Filter cover mtg.

$

$

Not available

22

Homelite 120332A

COVER- Filter

$

$

Currently unavailable

23

Homelite 58319A

RING- Retaining

$

$

Not available

24

Homelite A93240

BRACKET- Mounting cover

$

$

Currently unavailable

25

Homelite A122251

FILTER- Air
(Superseded to UP06797)

$

$

Currently unavailable

26

Homelite 121091

BUSHING- Flange

$

$

Currently unavailable

27

Homelite 12054

GROMMET- HI-LOW

$

$

Not available

28

Homelite A97801

CARBURETOR- (HDC-39-A)

$

$

Currently unavailable

29

Homelite A70923A

BUSHING

$

$

Currently unavailable

30

Homelite 70743A

GASKET

$

$

Currently unavailable

Homelite A70624A

SET- Isolator pin

$

$

Currently unavailable

31

Homelite 12100B

PIN- Isolator

$

$

Currently unavailable

32

Homelite 82262

SCREW- Soc. hd. 10-24 x 7/8

$

$

Not available

33

Homelite 88051

SCREW- Hex sems 10-24 x 3/4

$

$

Not available

34

Homelite 120592A

BRACKET- Handle bar

$

$

Currently unavailable

35

Homelite A12107A

HANDLE BAR

$

$

Currently unavailable

36

Homelite A12112

NUT- Filter cover mounting

$

$

Currently unavailable

37

Homelite 12110

BUSHING- Nylon

$

$

Currently unavailable

38

Homelite A94055A

COVER- Air filter

$

$

Currently unavailable

39

Homelite 12140

NUT- Push on spring

$

$

Currently unavailable

40

Homelite A12225

FILTER- Element air
(Superseded to UP03748)

$

$

Not available

41

Homelite 121171

PLATE- Spring

$

$

Currently unavailable

42

Homelite A69500A

CAP- Fuel filler
(Superseded to UP06559)

$

$

Not available

43

Homelite 69451

VALVE- Check (oval duckbill)

$

$

Not available

44

Homelite 69454

FILTER- Filler cap

$

$

Not available

45

Homelite 69501

GASKET- Fuel cap

$

$

Not available

46

Homelite 69502

CHAIN- Bead

$

$

Not available

47

Homelite 96535

RETAINER

$

$

Not available

48

Homelite 82256A

SCREW- Pan hd. plastite 6 x 1/4

$

$

Not available

49

Homelite A12222

CAP- Oil filler

$

$

Currently unavailable

50

Homelite 69451

VALVE- Check (oval duckbill)

$

$

Not available

51

Homelite 69454

FILTER- Filler cap

$

$

Not available

52

Homelite 12126

GASKET- Oil cap

$

$

Not available

53

Homelite 69502

CHAIN- Bead

$

$

Not available

54

Homelite 82256A

SCREW- Pan hd. plastite 6 x 1/4

$

$

Not available

55

Homelite 96535

RETAINER- Cap

$

$

Not available

56

Homelite 88050

SCREW- Hex sems 10-24 x 5/16
(Superseded to 88063)

$1.99

$

Usually ships in 3-7 days

0

57

Homelite A12286B

HOUSING- Engine

$

$

Not available

58

Homelite 12269

SCREEN- Air inlet

$

$

Not available

59

Homelite A59009A

FINDER- Oil

$

$

Currently unavailable

60

Homelite 9311242

TUBING- Rubber (Fuel) 10 1/2"

$

$

Not available

61

Homelite A69923

PICK-UP- Fuel
(Superseded to UP06560)

$

$

Not available

62

Homelite 64083

FILTER- Felt

$

$

Not available

63

Homelite A70623

SET- Isolator- soft (set of four)

$

$

Not available

Homelite A70622

SET- Isolator-hard (set of four) (Alternate)

$

$

Currently unavailable

64

Homelite A12153

DEFLECTOR- Air (exhaust)

$

$

Currently unavailable

65

Homelite 12096

BUMPER

$

$

Not available

66

Homelite 70810

NUT- Hex 10-24
(Superseded to UP06986)

$

$

Not available

Homelite A93967A

KIT- Hand guard

$

$

Currently unavailable

67

Homelite 70705

STOP- Chain

$

$

Not available

68

Homelite 88042

SCREW- Hex sems 8-32

$

$

Not available

69

Homelite 12240

SPACER- Nut (prior to lot #9240)

$

$

Not available

70

Homelite 12239

WASHER- Cupped spring (prior to lot #9240)

$

$

Currently unavailable

71

Homelite 83056

WASHER (prior to lot #9240)

$

$

Not available

72

Homelite 12296

WASHER (prior to lot #9240)

$

$

Currently unavailable

73

Homelite 88054

SCREW- Hex sems 10-24 x 1 1/4 (prior to lot #9240)
(Superseded to UP04267)

$

$

Not available

74

Homelite 88055

SCREW- Hex sems 10-24 x 1 3/8

$

$

Not available

75

Homelite 122383

BRACKET- Hand guard

$

$

Not available

76

Homelite 94867

WASHER

$2.49

$

Usually ships in 3-7 days

0

77

Homelite 70788

WASHER- Belleville
(Superseded to UP06837)

$

$

Not available

78

Homelite 93914

SCREW- Shoulder

$

$

Not available

79

Homelite A93968A

GUARD- Hand

$

$

Currently unavailable

80

Homelite A12267B

KIT- Right hand guard

$

$

Currently unavailable

81

Homelite 82275

SCREW- Hex hd. cap

$

$

Not available

82

Homelite 84003

WASHER

$1.49

$

Usually ships in 3-7 days

0

83

Homelite 81208

NUT- Center lock #10-24

$

$

Not available

84

Homelite 120422

BRACE- Handle

$

$

Not available
