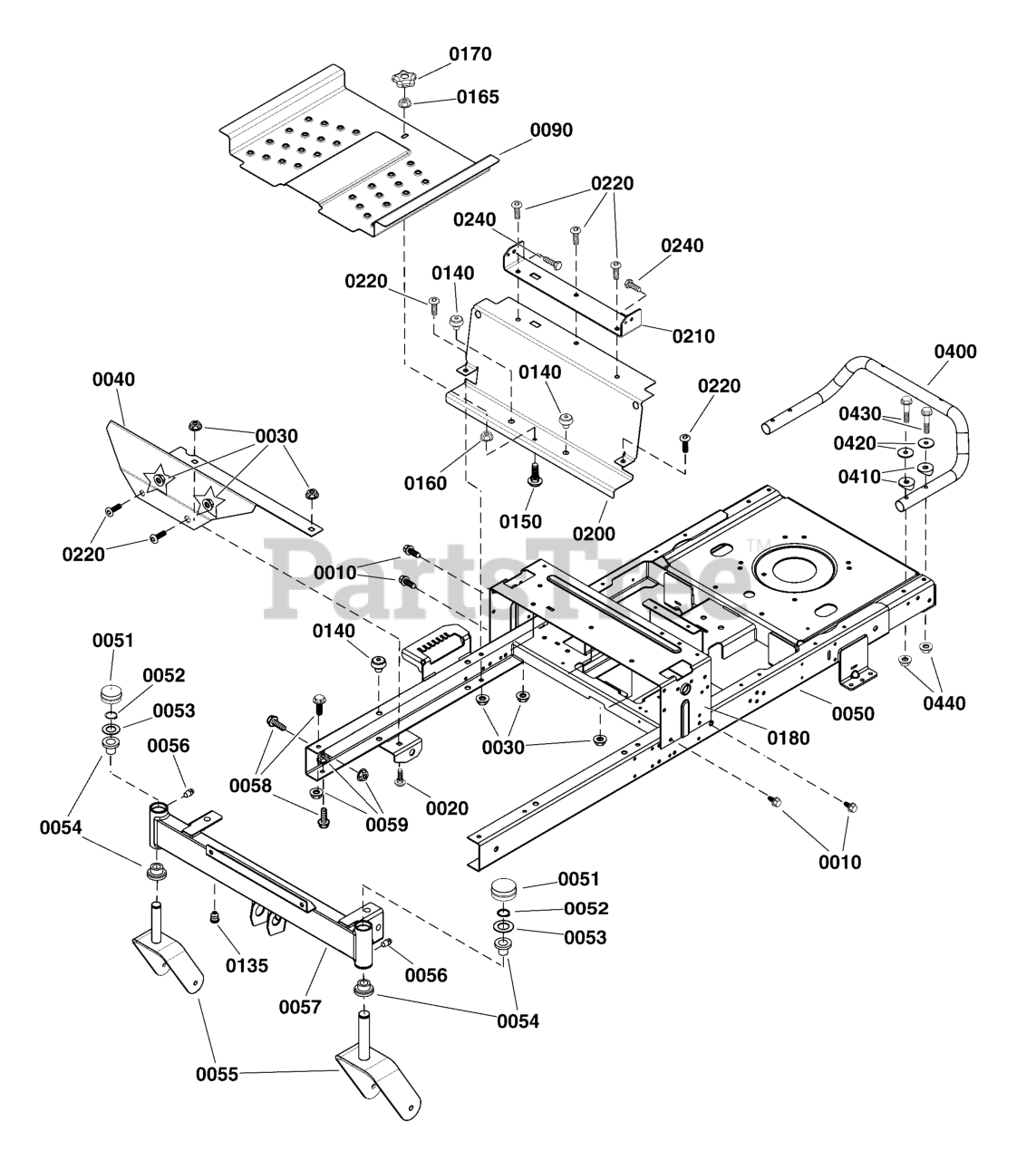

360Z (ZT 1936) (2691499-00) - Snapper 36"/91cm Zero-Turn Mower, FAB Deck, 19hp Frame Group (2992584) Parts Diagram

36"/91cm Zero-Turn Mower, FAB Deck, 19hp

Frame Group (2992584) Parts Diagram

  • Title

0010

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 16

0

0020

Snapper 703448

BOLT, Carriage, 3/8-16 X 3/4, GR5

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 703158

NUT, Hex Flange, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 84002333

FOOTREST, Front
(Superseded to 84002338)

$142.99

$

Usually ships in 2-12 days

0

0050

FRAME

Note: (Not a serviceable part)

$

$

Not available

0051

Snapper 84002102

CAP, Vinyl

$4.99

$

In Stock, Qty 12

0

0052

Snapper 703993

RETAINER, Ring

$3.49

$

In Stock, Qty 20+

0

0053

Snapper 703149

WASHER, Flat, 1

$3.49

$

In Stock, Qty 20+

0

0054

Snapper 1721682SM

BUSHING, 31/32 x 1-1/4 x 3/4, Powder Metal

$5.99

$

In Stock, Qty 20+

0

0055

Snapper 84002868

CASTER, Yoke

$84.99

$

In Stock, Qty 11

0

0056

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

0057

Snapper 84002869

FRONT AXLE ASSEMBLY

$344.99

$

Usually ships in 2-12 days

0

0058

Snapper 704038

SCREW, Hex Flange, Whiz Lock, 3/8-16 x 1

$6.49

$

In Stock, Qty 11

0

0059

Snapper 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0090

Snapper 1757813DYP

PAN, Foot

$140.99

$

Usually ships in 2-12 days

0

0135

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0140

Snapper 197546GS

MOUNT, Vibration

$8.49

$

In Stock, Qty 5

0

0150

Snapper 7090496YP

BOLT, Carriage, 1/4C X 1, GR5

$3.49

$

Usually ships in 2-12 days

0

0160

Snapper 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 11

0

0165

Snapper 15X143MA

NUT, Center Lock, 1/4-20

$5.49

$

In Stock, Qty 13

0

0170

Snapper 707785

KNOB, 5 Prong

$6.49

$

In Stock, Qty 9

0

0180

Snapper 1758010DYP

BRACKET, Control

$134.99

$

Usually ships in 2-12 days

0

0200

Snapper 1757796DYP

BRACKET, Brand

$110.99

$

Usually ships in 2-12 days

0

0210

Snapper 84001615

BRACKET, Seat

$29.99

$

Usually ships in 2-12 days

0

0220

Snapper 707790

SCREW, Button Head, 3/8-16 X .88
(Superseded to 84004627)

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 703932

SCREW, 5/16-18 x 1/2" Torx Pan Head

$5.49

$

Usually ships in 2-12 days

0

0400

Snapper 84002103

BUMPER, Tube

$112.99

$

Usually ships in 2-12 days

0

0410

Snapper 1759361YP

SADDLE, Tube, 1.25 O.D.

$6.49

$

Usually ships in 2-12 days

0

0420

Snapper 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 16

0

0430

Snapper 707944

SCREW, Washer Head, 5/16-18 X 2 1/4

$4.99

$

Usually ships in 2-12 days

0

0440

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0
