360Z (ZT 2246) (2691500-00) - Snapper 46"/117cm Zero-Turn Mower, 22hp Briggs & Stratton 46" Mower Deck - Clutch & Support Group (2992684) Parts Diagram

46"/117cm Zero-Turn Mower, 22hp Briggs & Stratton

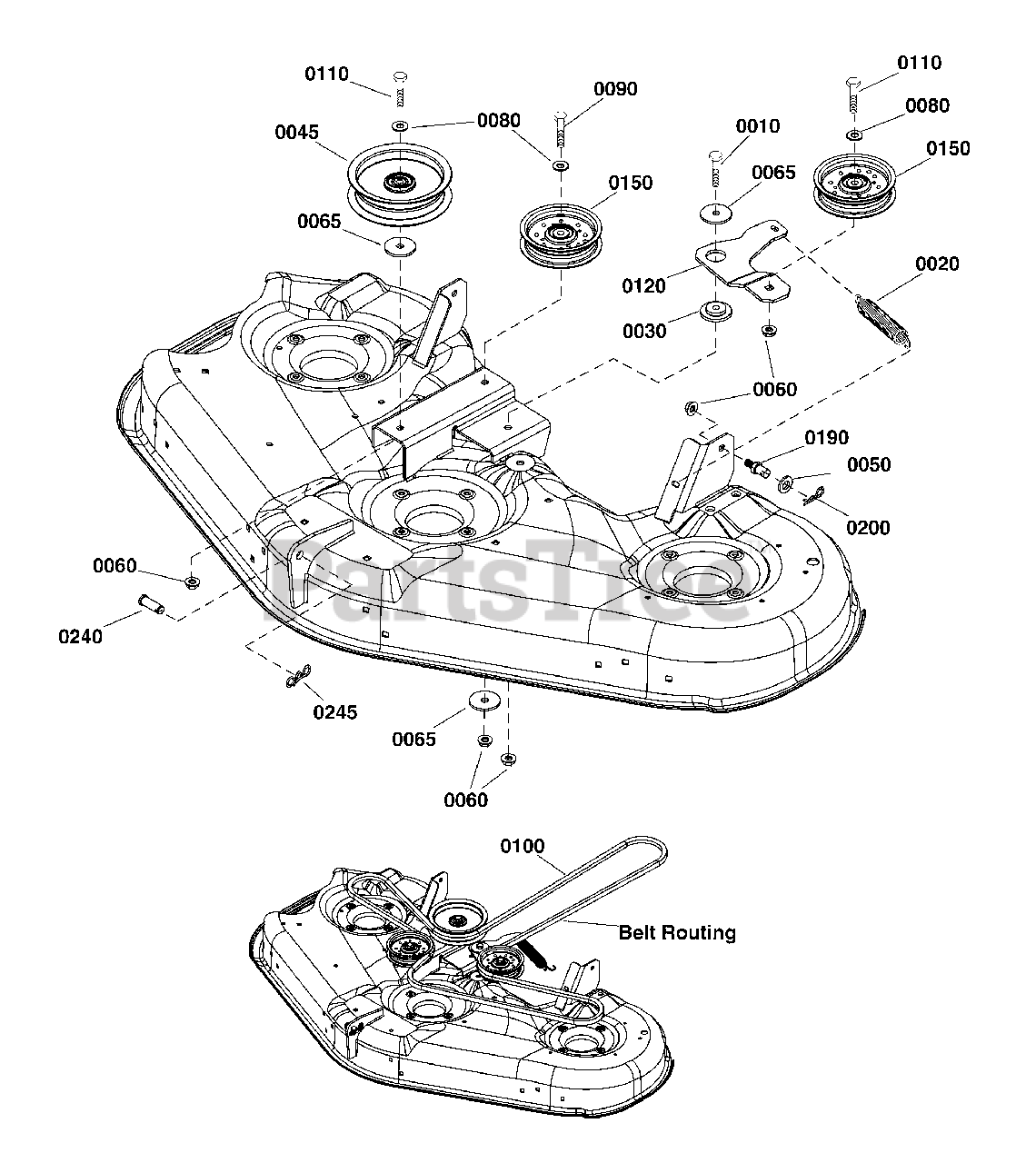

46" Mower Deck - Clutch & Support Group (2992684) Parts Diagram

  • Title

0010

Snapper 703871

CAPSCREW, Hex Head, 3/8-16 X 1 1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

0020

Snapper 1715435SM

SPRING, Extension

$9.99

$

In Stock, Qty 16

0

0030

Snapper 706128

SPACER, Idler

$7.49

$

In Stock, Qty 11

0

0045

Snapper 1757823YP

PULLEY, Idler, Backside

$23.99

$

In Stock, Qty 20+

0

0050

Snapper 703853

WASHER, 1/2

$5.49

$

In Stock, Qty 20+

0

0060

Snapper 703158

NUT, Hex Flange, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0065

Snapper 5025305SM

WASHER, .41 X 1.75 X .14

$4.49

$

In Stock, only 4 left!

0

0080

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0090

Snapper 703872

CAPSCREW, Hex Head, 3/8-16 X 2 1/4

$4.99

$

In Stock, Qty 10

0

0100

Snapper 84001703

BELT, Arbor

$109.99

$

In Stock, only 1 left!

0

0110

Snapper 703589

CAPSCREW, Hex Head, 3/8-16 X 2, GR5

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 1758486AYP

ARM, Idler, 46"

$29.99

$

Usually ships in 2-12 days

0

0150

Snapper 1757894YP

PULLEY, Flat Idler, 4.5"

$43.99

$

In Stock, Qty 6

0

0190

Snapper 704054

PIN, Threaded Shoulder, 3/8-16 X 11/16

$7.49

$

In Stock, Qty 10

0

0200

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0240

Snapper 5025479YP

PIN, Clevis, 1/2 X 1 23/64

$3.99

$

In Stock, Qty 9

0

0245

Snapper 1722320SM

PIN, Cotter, Locking,

$3.49

$

In Stock, only 2 left!

0
