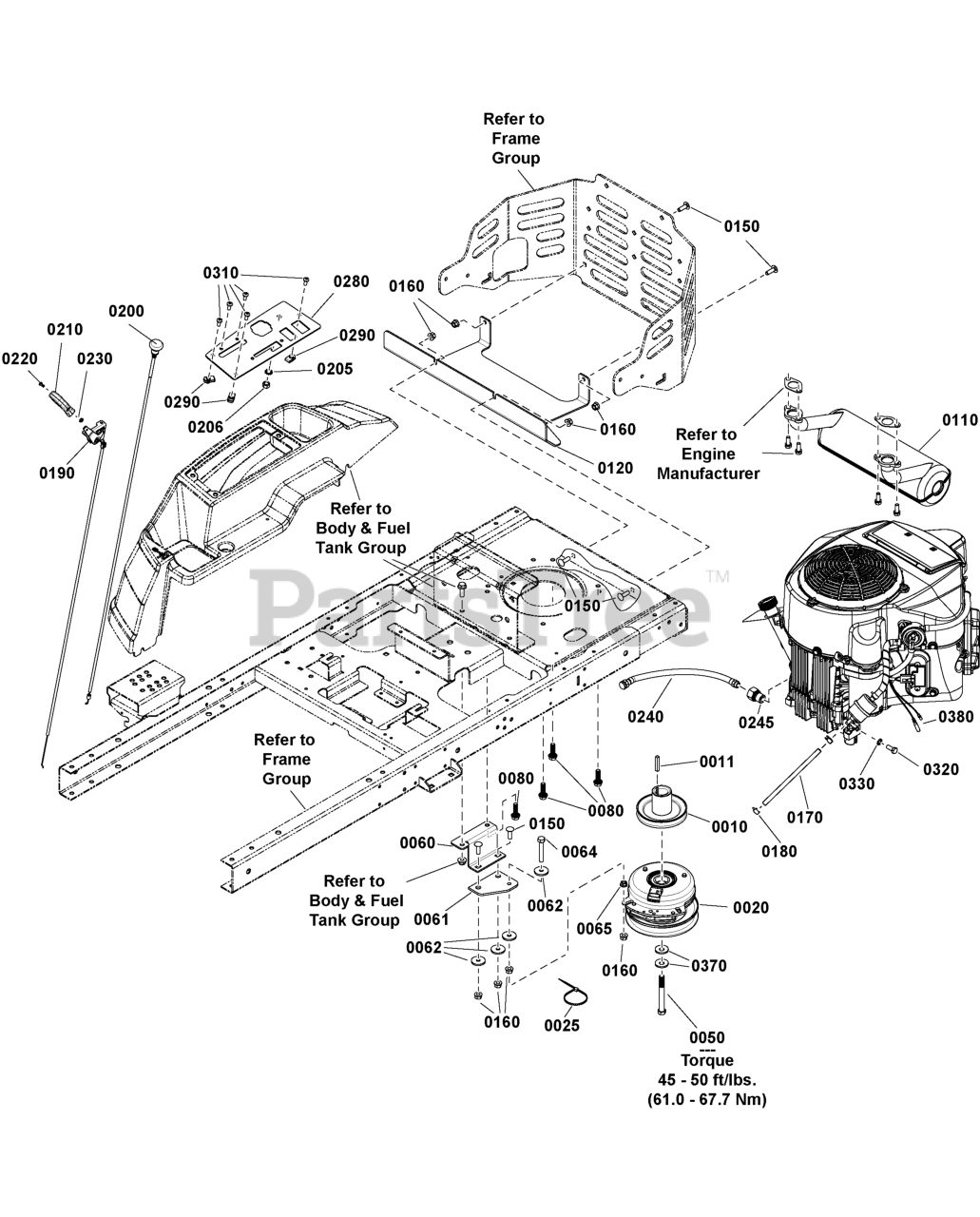

360Z (ZT 2461) (2691818-00) - Snapper 61" Zero-Turn Mower, Fab Deck, 24hp Engine Group Parts Diagram

61" Zero-Turn Mower, Fab Deck, 24hp

Engine Group Parts Diagram

  • Title

0005

ENGINE, 24HP, KAWI, FR730V, 1-1/8 CRANK

Note: (Refer to Note: *)

$

$

Not available

0010

Snapper 84006898

PULLEY, Crankshaft

$16.99

$

Usually ships in 2-12 days

0

0011

Snapper 5022726YP

KEY 1/4 SQ X 1 1/2 LONG

$5.49

$

In Stock, Qty 6

0

0020

Snapper 84006960

CLUTCH, Warner

$271.99

$

Usually ships in 2-12 days

0

0025

Snapper 5021030SM

TIE, 6" Self-Locking

$2.99

$

In Stock, only 2 left!

0

0050

BOLT, CRANKSHAFT, 7/16-20 X 3-3/4, GD8

$

$

Not available

0060

BRKT, CLUTCH ANCHOR (BLACK)

$

$

Not available

0061

PAD, CLUTCH ANCHOR

$

$

Not available

0062

Snapper 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

Usually ships in 2-12 days

0

0064

Snapper 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$4.49

$

In Stock, only 2 left!

0

0065

Snapper 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

Usually ships in 2-12 days

0

0080

Snapper 84003591

BOLT, Flange, 3/8-16 X 1-1/4

$3.49

$

In Stock, Qty 5

0

0110

Snapper 1758352YP

MUFFLER, ZT (Kawasaki FR651/691/730)

$220.99

$

Usually ships in 2-12 days

0

0120

Snapper 84006924

HEAT SHIELD

$174.99

$

Usually ships in 2-12 days

0

0150

Snapper 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 18

0

0160

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 5050831X35SM

HOSE, 1/4" FUEL, 35.00"

$19.99

$

Usually ships in 2-12 days

0

0180

Snapper 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 1759205YP

CONTROL, Throttle

$45.99

$

In Stock, only 2 left!

0

0200

Snapper 5100184SM

CABLE, CHOKE CONTROL, 43.5"

$43.99

$

In Stock, only 2 left!

0

0205

Snapper 703864

WASHER, External, 3/8

$4.49

$

Usually ships in 2-12 days

0

0206

Snapper 703895

NUT, Hex, 3/8-24

$4.49

$

In Stock, Qty 20+

0

0210

Snapper 1739312YP

KNOB, Throttle

$11.99

$

Usually ships in 2-12 days

0

0220

Snapper 797483

SCREW

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 703460

NUT

$3.99

$

In Stock, Qty 7

0

0240

Snapper 1726498SM

HOSE, Oil Drain

$28.99

$

Usually ships in 2-12 days

0

0245

Snapper 5022234SM

ADAPTER, Oil Drain

$16.99

$

In Stock, only 3 left!

0

0280

Snapper 84006920

PANEL, Control

$26.99

$

Usually ships in 2-12 days

0

0290

Snapper 705876

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0310

Snapper 703953

SCREW, Torx Pan Head Self-Tapping, 1/4-20 X 5/8,

$4.49

$

In Stock, only 2 left!

0

0320

Snapper 5025249YP

BOLT, M8-1.25 X 2.MM GD 8.8
(Superseded to 703988)

$3.49

$

Usually ships in 2-12 days

0

0330

Snapper 703138

WASHER, External Lock, 5/16

$3.99

$

In Stock, Qty 11

0

0370

Snapper 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 3 left!

0

0380

Snapper 5104811YP

WIRE HARNESS, JUMPER, KAWI

$19.99

$

Usually ships in 2-12 days

0
