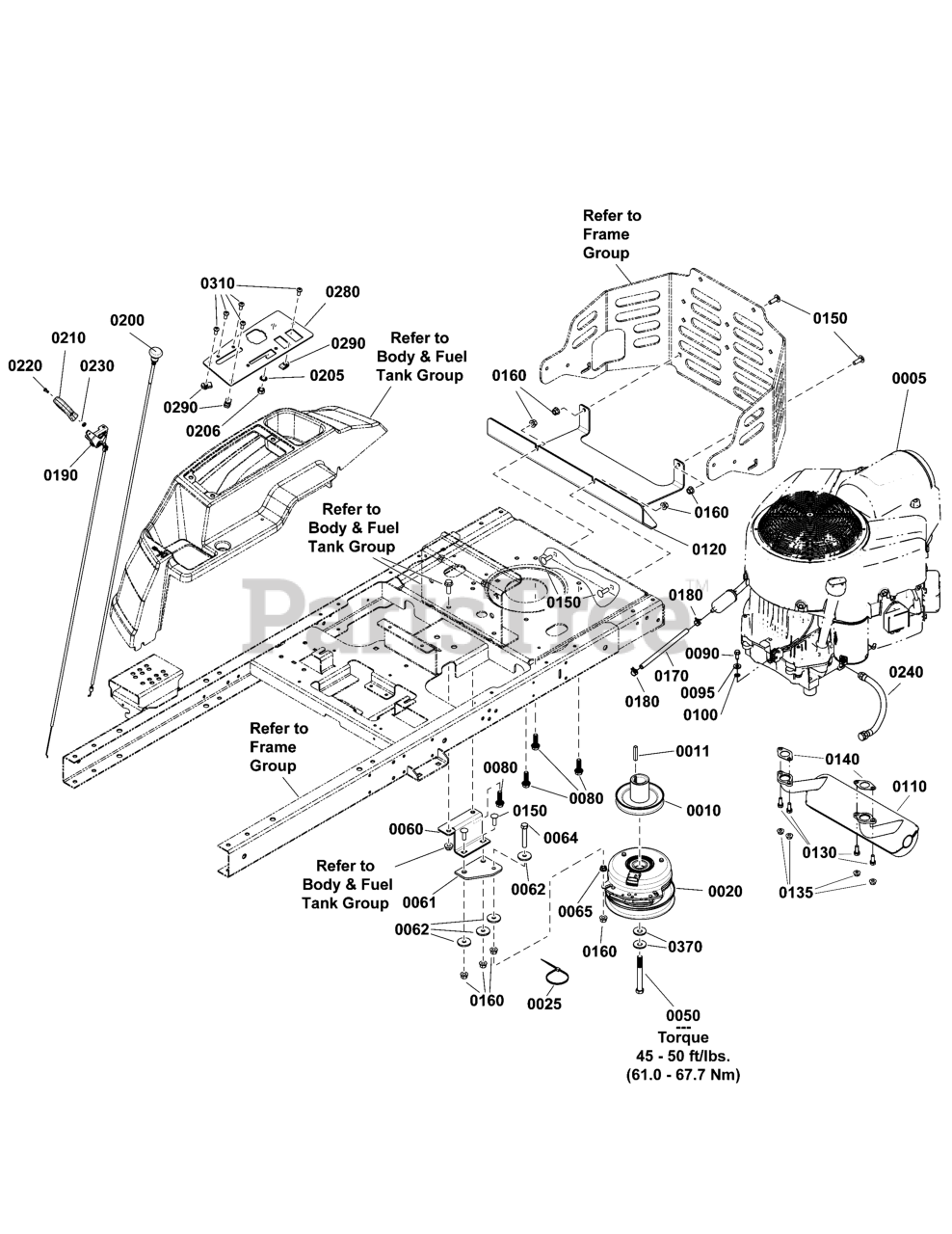

360Z (ZT 2561) (2691817-01) - Snapper 61" Zero-Turn Mower, Fab Deck, 25hp Engine Group Parts Diagram

61" Zero-Turn Mower, Fab Deck, 25hp

Engine Group Parts Diagram

  • Title

0005

Engine, Briggs & Stratton CXi

Note: ( Engine Model: 5110408 )

$

$

Not available

0010

Snapper 84007555

PULLEY, CRANKSHAFT

$61.99

$

Usually ships in 2-12 days

0

0011

Snapper 5022726YP

KEY 1/4 SQ X 1 1/2

$5.49

$

In Stock, only 4 left!

0

0020

Snapper 84006960

CLUTCH

$271.99

$

Usually ships in 2-12 days

0

0025

Snapper 5021030SM

TIE WRAP, 5-1/2" LONG

$2.99

$

In Stock, only 2 left!

0

0050

Snapper 84007266

BOLT

$

$

Currently unavailable

0060

Snapper 84007267

BRACKET

$22.99

$

Usually ships in 2-12 days

0

0061

Snapper 84007268

PAD

$6.99

$

Usually ships in 2-12 days

0

0062

Snapper 5044617SM

WASHER, .34 X 1.25 X

$8.49

$

Usually ships in 2-12 days

0

0064

Snapper 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$4.49

$

Usually ships in 2-12 days

0

0065

Snapper 5025127SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, only 3 left!

0

0080

Snapper 2828635SM

SCREW-HEX WSHR HD TAP

$4.99

$

In Stock, Qty 20+

0

0090

Snapper 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 11

0

0095

Snapper 22473GS

FLAT WASHER, M6 - 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1921880SM

LOCKWASHER-EXTERNALTO

$3.49

$

Usually ships in 2-12 days

0

0110

Snapper 1758350YP

MUFFLER

$230.99

$

Usually ships in 2-12 days

0

0120

Snapper 84006924

HEAT SHIELD

$174.99

$

Usually ships in 2-12 days

0

0130

Snapper 690341

SCREW

Note: ( Refer to Note: ** )

$5.99

$

In Stock, only 3 left!

0

0135

Snapper 690941

NUT

Note: ( Refer to Note: *** )

$5.49

$

In Stock, Qty 7

0

0140

Snapper 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

0150

Snapper 703800

BOLT, CRRG, 5/16-18X1

$3.99

$

In Stock, Qty 19

0

0160

Snapper 703115

NUT

$3.49

$

In Stock, Qty 11

0

0170

Snapper 5050831X11YP

HOSE, 1/4" FUEL, 11.00"

$

$

Not available

0180

Snapper 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 1759205YP

CONTROL-THROTTLE

$45.99

$

In Stock, only 2 left!

0

0200

Snapper 5100184SM

CABLE, CHOKE CONTROL,

$43.99

$

In Stock, only 2 left!

0

0205

Snapper 703864

WASHER, EXT, 3/8

$4.49

$

Usually ships in 2-12 days

0

0206

Snapper 703895

NUT, HEX, 3/8-24

$4.49

$

In Stock, Qty 20+

0

0210

Snapper 1739312YP

KNOB, THROTTLE

$11.99

$

Usually ships in 2-12 days

0

0220

Snapper 797483

SCREW

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 703460

NUT, HEX, ZINC, #8-32

$3.99

$

In Stock, Qty 7

0

0240

Snapper 1726498SM

HOSE-OIL DRAIN .375ID

$28.99

$

Usually ships in 2-12 days

0

0280

Snapper 84006920

PANEL, CONTROL

$26.99

$

Usually ships in 2-12 days

0

0290

Snapper 5022665SM

BODY CLIP, 1/4-20 X 1

$3.49

$

Usually ships in 2-12 days

0

0310

Snapper 703953

SCREW, 1/4-20X5/8

$4.49

$

In Stock, only 2 left!

0

0370

Snapper 5025585YP

BELLEVILLE WASHER

$4.49

$

In Stock, Qty 6

0
