362 D28 (MA 18) - Husqvarna Backpack Duster with Mister Conversion Kit (2010-02) CARBURETOR Parts Diagram

Backpack Duster with Mister Conversion Kit

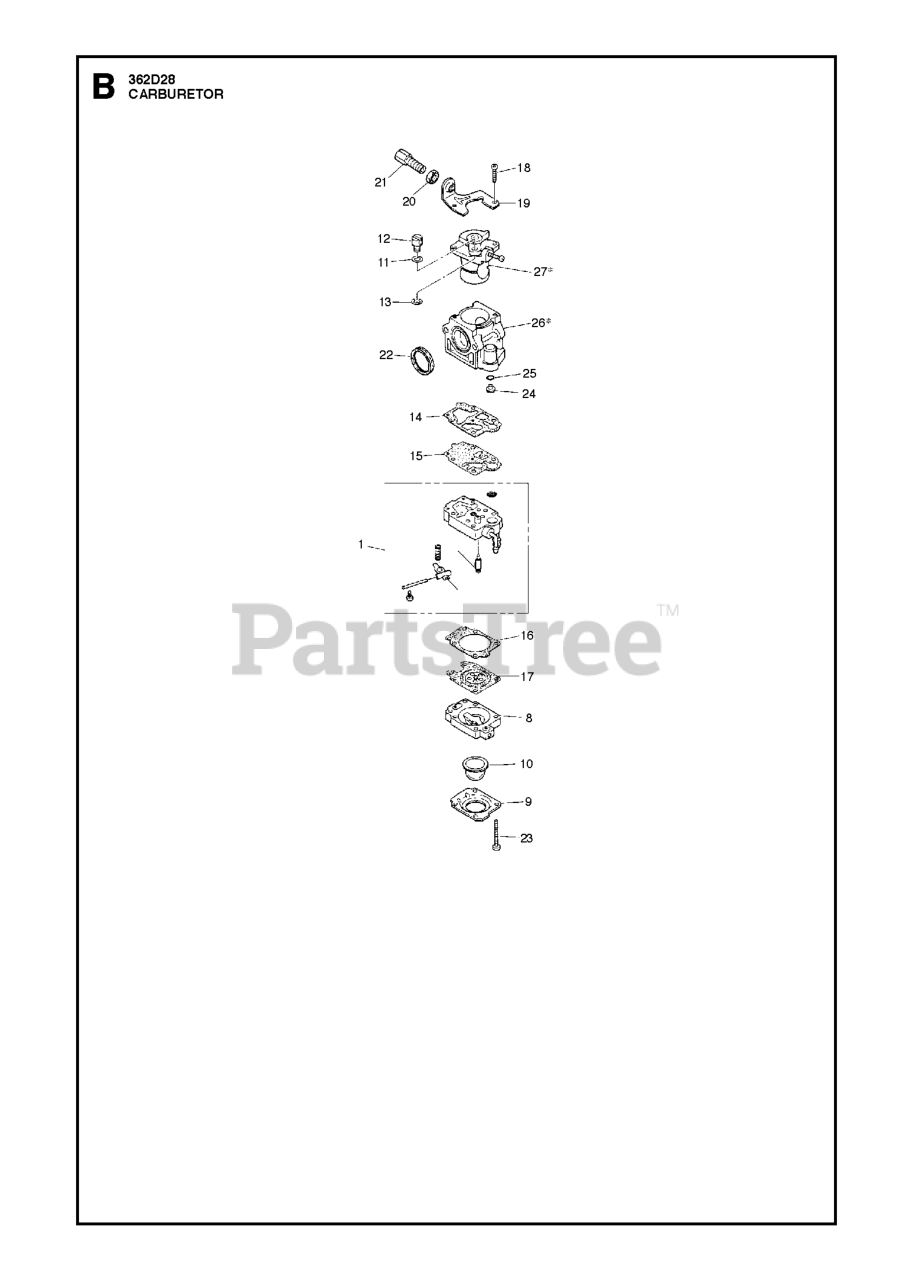

CARBURETOR Parts Diagram

  • Title

1

Husqvarna 502238401

CARBURETOR BODY

$51.99

$

In Stock, only 2 left!

0

10

Husqvarna 505306701

PUMP

$9.49

$

In Stock, Qty 20+

0

14

Husqvarna 505307201

GASKET
(Superseded to 516160601)

$

$

Not available

24

Husqvarna 505185701

JET

$13.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506740801

GASKET

$11.99

$

In Stock, Qty 6

0

20

Husqvarna 506612601

NUT
(Superseded to 510487401)

$3.49

$

In Stock, Qty 11

0

15

Husqvarna 506689801

DIAPHRAGM

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 505307901

SCREW
(Superseded to 516528701)

$

$

Not available

17

Husqvarna 505056401

DIAPHRAGM

$17.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506746001

BRACKET
(Superseded to 521359901)

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 506741101

SCREW

$3.49

$

In Stock, Qty 13

0

25

Husqvarna 505307501

O-RING

$3.49

$

In Stock, Qty 5

0

12

Husqvarna 506741201

SWIVEL
(Superseded to 516597701)

$

$

Not available

9

Husqvarna 506741001

1OVER

$5.99

$

In Stock, Qty 7

0

8

Husqvarna 506740901

BODY

$26.99

$

In Stock, only 2 left!

0

11

Husqvarna 506746101

WASHER

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 506738601

RING

$2.49

$

Usually ships in 3-10 days

0

22

Husqvarna 505308401

RING PACKING

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 506741301

ADJUSTER
(Superseded to 521756001)

$4.99

$

In Stock, Qty 11

0
