364 (126-364-100) - Cub Cadet Walk-Behind Mower (1986) Parts For Rotary Mower Part 1 Parts Diagram

Walk-Behind Mower

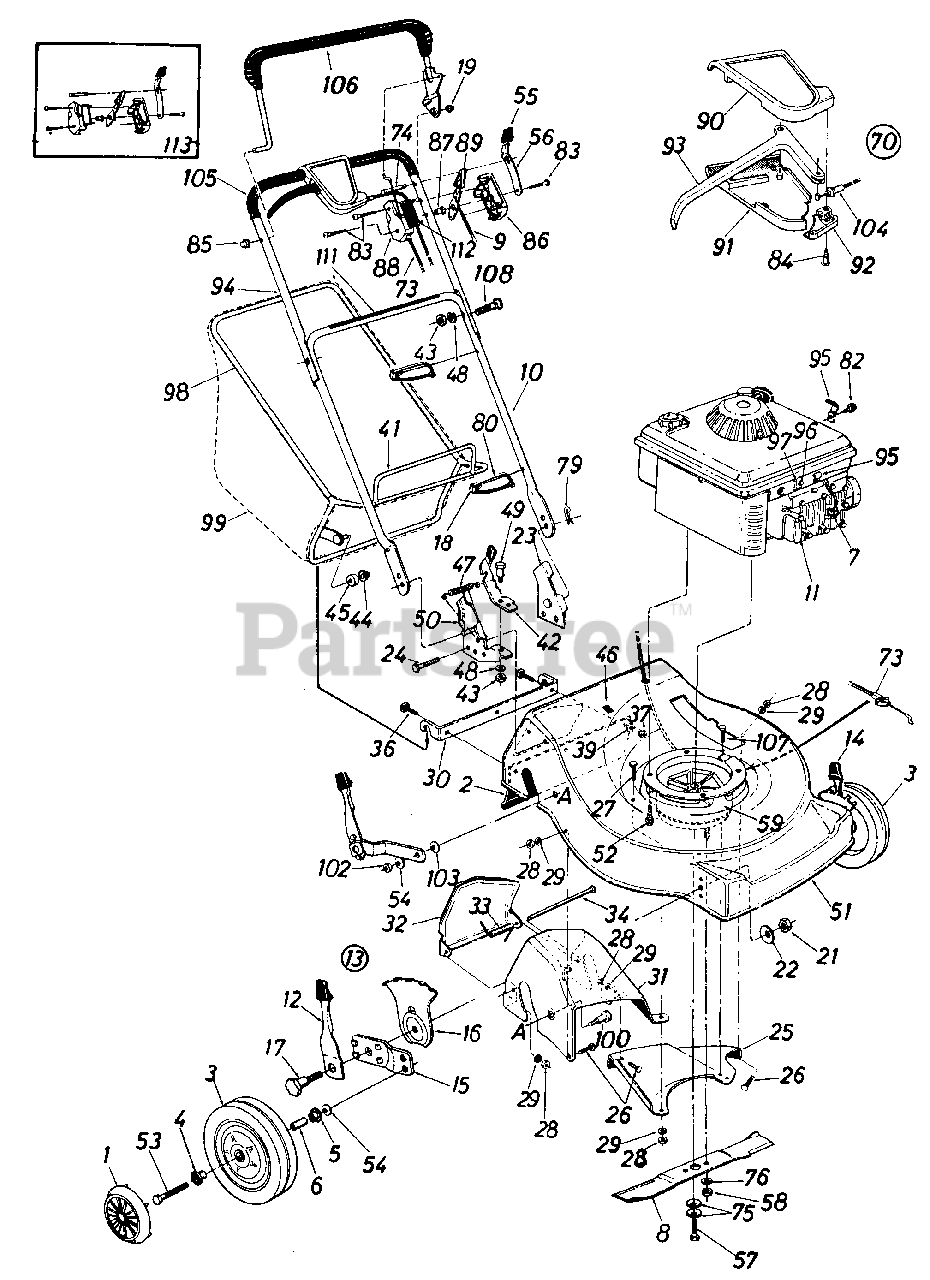

Parts For Rotary Mower Part 1 Parts Diagram

  • Title

1

Cub Cadet 731-0124

HUB CAP

$

$

Not available

2

Cub Cadet 731-0664

FLAP-RR

$

$

Not available

3

Cub Cadet 734-0845

WHEEL ASSY W/TIRE-8X1.75

$

$

Not available

4

Cub Cadet 741-0267

BEARING-FLANGE

$

$

Not available

5

Cub Cadet 741-0484

BEARING-BALL
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 750-0434

SPACER

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 735-0639

INSULATOR-SPARK PLUG

$

$

Not available

8

Cub Cadet 742-0222

BLADE-22IN BBC

$

$

Not available

9

Cub Cadet 746-0633

WIRE-THROTTLE 58 LG
(Superseded to 946-0674A)

$17.99

$

In Stock, Qty 5

0

10

Cub Cadet 749-0505

HANDLE-LOWER PAINTED
(Superseded to 749-0907B)

$46.99

$

In Stock, Qty 6

0

11

Note: Engine

$

$

Not available

12

Cub Cadet 14832

LEVER & KNOB ASSY
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

13

Cub Cadet 14578

ADJUSTER ASSY-HGT-RH
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

14

Cub Cadet 14579

ADJUSTER ASSY-HGT-LH
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

15

Cub Cadet 15262

BAR-PIVOT R
(Superseded to 15262B)

$13.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 15261

PLATE-HGT ADJ R
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

17

Cub Cadet 738-0507

SCREW-SHLD R
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 726-0241

TIE-CABLE
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

19

Cub Cadet 726-0111

NUT-PUSH

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-0798

NUT-HEX 3/8-16

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0356

WASHER-BELL .390 ID X 1.375 X .062
(Superseded to 936-0356)

$

$

Not available

23

Cub Cadet 12297

BRACKET ASSY-HDLE

$

$

Not available

24

Cub Cadet 710-0892

SCREW-HEX L-WASH HD
(Superseded to 910-0892)

$

$

Not available

25

Cub Cadet 14014

BAFFLE-CHUTE-RR-LH

$

$

Currently unavailable

26

Cub Cadet 710-0167

BOLT-CARRIAGE 1/4-20 X .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0206

SCREW-HEX 1/4-20 X .88

$4.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

29

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

30

Cub Cadet 14012

ADAPTER-GRASSCATCHER

$

$

Not available

31

Cub Cadet 14235

BAFFLE-CHUTE-RR-RH

$

$

Not available

32

Cub Cadet 13407

DOOR-CHUTE

$

$

Not available

33

Cub Cadet 732-0346

SPRING-TORSION

$

$

Not available

34

Cub Cadet 738-0386

PIN-HINGE

$

$

Not available

36

Cub Cadet 710-0703

BOLT-CARRIAGE 1/20 X .75

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 712-0271

NUT-SEMS 1/4-20

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0211

WASHER-FL-.285 ID X 1.25 OD X .060

$6.49

$

In Stock, Qty 8

0

41

Cub Cadet 14582

FRAME-LOWER

Variations

Cub Cadet 14582-0637

FRAME-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 14845

LEVER-LOCK

$

$

Not available

43

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 726-0100

NUT-PUSH

$3.99

$

In Stock, Qty 7

0

45

Cub Cadet 731-0430

ROLLER-PLASTIC

$

$

Not available

46

Cub Cadet 731-0564

PLUG

$

$

Not available

47

Cub Cadet 732-0357

SPRING-EXTENSION
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

48

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 738-0155

SCREW-SHLD .437 DIA X .162
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 14592

BRACKET ASSY-HDLE

$

$

Currently unavailable

51

Cub Cadet 16116

DECK ASSEMBLY-22IN-RD

$

$

Currently unavailable

52

Cub Cadet 710-0654

SCREW-HEX R
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

53

Cub Cadet 710-0347

SCREW-HEX 3/8-16 X 1.75

$4.99

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 720-0190

KNOB
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

56

Cub Cadet 732-0401

SPRING-LOCKOUT

$

$

Not available

57

Cub Cadet 710-0818

SCREW-HEX 3/8-24 X 2.00

Note: (Grade 8)

$6.49

$

In Stock, only 1 left!

0

58

Cub Cadet 712-0328

NUT-HEX 3/8-24
(Superseded to 712-0241)

Note: (Grade 8)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 717-0485

CLUTCH ASSY-BLADE

$

$

Not available

70

Cub Cadet 753-0362

KIT-CLUTCH CONTROL

$

$

Not available

73

Cub Cadet 746-0400A

CABLE-CLUTCH
(Superseded to 946-0405)

$53.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 731-0607

PIN-LOCKING

$

$

Not available

75

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$3.99

$

In Stock, Qty 20+

0

76

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

79

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$3.99

$

In Stock, Qty 20+

0

80

Cub Cadet 725-0157

TIE-CABLE

$3.49

$

In Stock, only 4 left!

0

82

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 X .38
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, Qty 6

0

84

Cub Cadet 710-0841

SCREW-FL C-SUNK AB

$3.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 726-0135

NUT-SPEED

$6.49

$

In Stock, only 4 left!

0

86

Cub Cadet 731-0816

PANEL HALF-CLUTCH

$

$

Not available

86

Cub Cadet 731-0817

PANEL HALF-CONTROL

$

$

Not available

87

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

88

Cub Cadet 731-0816

PANEL HALF-CLUTCH

$

$

Not available

89

Cub Cadet 731-0528

LEVER-THROTTLE CONT-REV
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

90

Cub Cadet 731-0617

COVER-HALF-CONTROL
(Superseded to 731-0617A)

$

$

Not available

91

Cub Cadet 731-0618

COVER-HALF CONT-LWR
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

92

Cub Cadet 731-0619

CAP-CABLE MTG

$

$

Not available

93

Cub Cadet 731-0620

LEVER-CONTROL
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

94

Cub Cadet 749-0437

HANDLE-UPPER-CHROME

$

$

Currently unavailable

95

Cub Cadet 12894

CLAMP-CASING

$

$

Not available

96

Cub Cadet 710-0436

SCREW-HEX WASH HD TAP
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

97

Cub Cadet 751-0442

CLAMP-CASING

$

$

Not available

98

Cub Cadet 749-0278

FRAME-CATCHER-UPR

$

$

Not available

99

Cub Cadet 764-0171

BAG-GRASS
(Superseded to 964-0171B)

$

$

Not available

100

Cub Cadet 738-0430

SCREW-SHLD .500 DIA X .685

$10.99

$

In Stock, Qty 5

0

102

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

103

Cub Cadet 736-0219

WASHER-BELL .3/8ID X 1.12OD X .030
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

104

Cub Cadet 746-0463

CABLE-CLUTCH

$

$

Not available

105

Cub Cadet 718-0145

GRIP-SHRINK-25 IN

$

$

Currently unavailable

106

Cub Cadet 731-0609

BAIL-LH

$

$

Not available

107

Cub Cadet 710-0642

SCREW-HEX HD TAP 1/4-20 X 7.5

$4.49

$

In Stock, Qty 20+

0

108

Cub Cadet 710-0671

BOLT-CARRIAGE-CURV 5/16-18 X 1.38

$

$

Not available

111

Cub Cadet 777-5775

LABEL-BBC-INST

$

$

Currently unavailable

112

Cub Cadet 777-5772

LABEL

$

$

Currently unavailable

113

Cub Cadet ~8364-100-6

HARDWARE PACK

$

$

Currently unavailable
