364 (190-364-100) - Cub Cadet 45" Snow Thrower Attachment 45" Snow Thrower Part 2 Parts Diagram

45" Snow Thrower Attachment

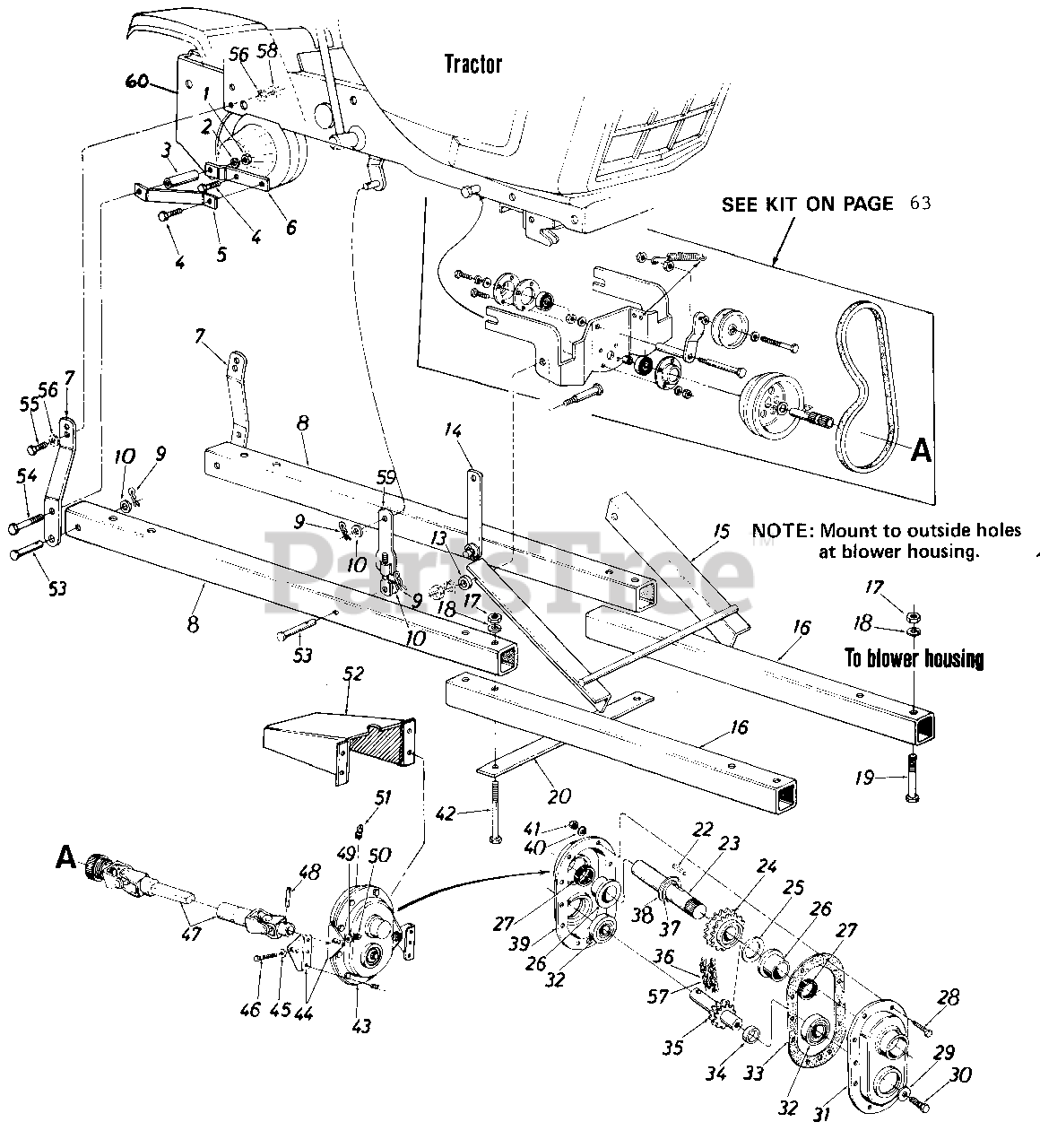

45" Snow Thrower Part 2 Parts Diagram

  • Title

1

Cub Cadet 712-0240

Hex Jam Nut 7/16-20 Thd.
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0171

L.-Wash. 7/16" I.D.*

$4.99

$

In Stock, only 4 left!

0

3

Cub Cadet 750-0417

Spacer .50" I.D. x 1.0" O.D. x 1.47" Lg.

$

$

Not available

4

Cub Cadet 710-3116

Patch Bolt 3/8-16 x 2.5" Lg. (Grade 5)

$

$

Not available

5

Cub Cadet 784-5103

Rear Hanger Support Bracket

Variations

784-5103-0637

Cub Cadet 784-5103-0637

BRACKET-HANGER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 703-0806

Mounting Strap - R.H.

Variations

703-0806-0637

Cub Cadet 703-0806-0637

MOUNTING STRAP - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 703-0807

Mounting Strap - L.H.
(Superseded to 703-0807-0637)

Variations

703-0807-0498

Cub Cadet 703-0807-0498

USE 703-0807-0637 STRAP-MTG-L - OLD CUB YELLOW (0498)

$

$

Not available

703-0807-0637

Cub Cadet 703-0807-0637

STRAP-MTG-LH - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 784-5102

Rear Hanger Bracket

$

$

Currently unavailable

8

Cub Cadet 750-0635

Sq Tubing 2" x 46" Lg.

$

$

Currently unavailable

9

Cub Cadet 714-0101

Internal Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

10

Cub Cadet 736-0272

Fl.-Wash. .510" I.D. x 1.0" 0.D.

$5.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 12

0

Cub Cadet 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 11

0

13

Cub Cadet 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

In Stock, only 1 left!

0

14

Cub Cadet 784-5073

Lift Bracket 1-1/4" x 7.0" Lg.

$

$

Not available

15

Cub Cadet 784-5067

Guide Bracket Ass'y.

$

$

Not available

16

Cub Cadet 750-0619

Sq. Tubing 2.0 x 35.25" Lg.

$

$

Currently unavailable

17

Cub Cadet 712-0206

Hex Nut 1/2-13 Thd.*

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0921

L.-Wash. 1/2" I.D.*

$4.99

$

In Stock, Qty 9

0

19

Cub Cadet 710-0182

Hex Bolt 1/2-13x3.00" Lg.*
(Superseded to 710-0182A)

$8.49

$

In Stock, Qty 15

0

20

Cub Cadet 784-5072

Tubing Support Bracket

$

$

Currently unavailable

22

Cub Cadet 714-0128

Sq. Key 1/4 x 1.00" Lg.

$4.99

$

In Stock, only 4 left!

0

23

Cub Cadet 738-0362

Gear Shaft

$

$

Not available

24

Cub Cadet 713-0348

Double Sprocket 19-2 Teeth x.50" Pitch

$

$

Not available

25

Cub Cadet 736-0246

Fl.-Wash. 1.25" I.D. x 2.00" O.D.

$

$

Not available

26

Cub Cadet 748-0194

Flange Bearing 1.252" I.D.

$34.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 721-0117

Oil Seal 1.25 I.D. x 1.75" O.D.

$

$

Not available

28

Cub Cadet 710-0281

Hex Bolt 1/4-28 x .88" Lg.

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0247

Bell.-Wash. .400" I.D. x 1.25' 0.D.

$10.99

$

In Stock, Qty 10

0

30

Cub Cadet 710-0591

Hex L.-Bolt 3/8-24 x 1.00" Lg.*

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 717-0359

Gear Housing Half - L.A.

$

$

Not available

32

Cub Cadet 741-0131

Ball Bearing 1.00" I.D. x 2.00" O.D.
(Superseded to 941-0131)

$56.99

$

In Stock, only 3 left!

0

33

Cub Cadet 721-0158

Gasket

$

$

Not available

Cub Cadet 750-0612

Spacer 1.00" I.D. x 1.18" O.D. x .440 " Lg .

$

$

Not available

35

Cub Cadet 713-0346

11-2 x .500 Pitch - Sprocket Shaft Ass'y.

$

$

Not available

36

Cub Cadet 713-0349

40-2 Chain 1/2 Pitch x 25 Links

$

$

Not available

37

Cub Cadet 716-0116

Snap Ring for 1.25" Dia. Shaft

$5.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 736-0246

Fl.-Wash. 1.25" x 2.00" O.D.

$

$

Not available

39

Cub Cadet 717-0360

Gear Housing Half - R.H.

$

$

Not available

40

Cub Cadet 736-0175

L.-Wash. .270" I.D. x .57" O.D.
(Superseded to 936-0175)

$4.49

$

In Stock, only 3 left!

0

41

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$7.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 710-0382

Hex Bolt 1/2-13 x 5.00" Lg.*

$12.99

$

In Stock, only 2 left!

0

43

Cub Cadet 717-0870

Chain Gear Box Ass'y. Comp.

$

$

Not available

44

Cub Cadet 05607

Gear Box Support Bracket

$

$

Not available

45

Cub Cadet 736-0242

Bell.-Wash. .345" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 717-0361

Universal Drive Shaft Ass'y.

$

$

Not available

48

Cub Cadet 715-0113

Spring Pin Spir. 5/8" Dia. x 2.50" Lg.

$

$

Not available

49

Cub Cadet 736-0242

Bell.-Wash. .345" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 737-0146

Grease Fitting

$5.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 784-5093

Drive Shaft Cover

$

$

Not available

53

Cub Cadet 711-0775

Clevis Pin.50" Dia.x 2.75" Lg.

$

$

Currently unavailable

54

Cub Cadet 710-0510

Hex Bolt 7/16-20 x 3.0" Lg.

$11.99

$

In Stock, only 2 left!

0

55

Cub Cadet 710-0514

Hex Bolt 3/8-16 x 1.0" Lg. (Grade 5)

$4.49

$

In Stock, Qty 16

0

56

Cub Cadet 736-0169

L.-Wash. 3/8 " I.D.*

$3.99

$

In Stock, Qty 11

0

57

Cub Cadet 713-0152

Master Link #40 Type IV

$

$

Not available

58

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 737-0133

Grease - Plastilube
(Superseded to 737-0300A)

Note: (Not Shown)

$36.99

$

In Stock, Qty 6

0

59

Cub Cadet 784-5235

Adjustable Lift Link Ass'y.-364

$

$

Not available

Cub Cadet 784-5236

Adjustable Lift Link Ass'y.-421

$

$

Not available

60

Cub Cadet 703-0809

3-Pt. Hitch Plate Sub Ass'y.

$

$

Currently unavailable
