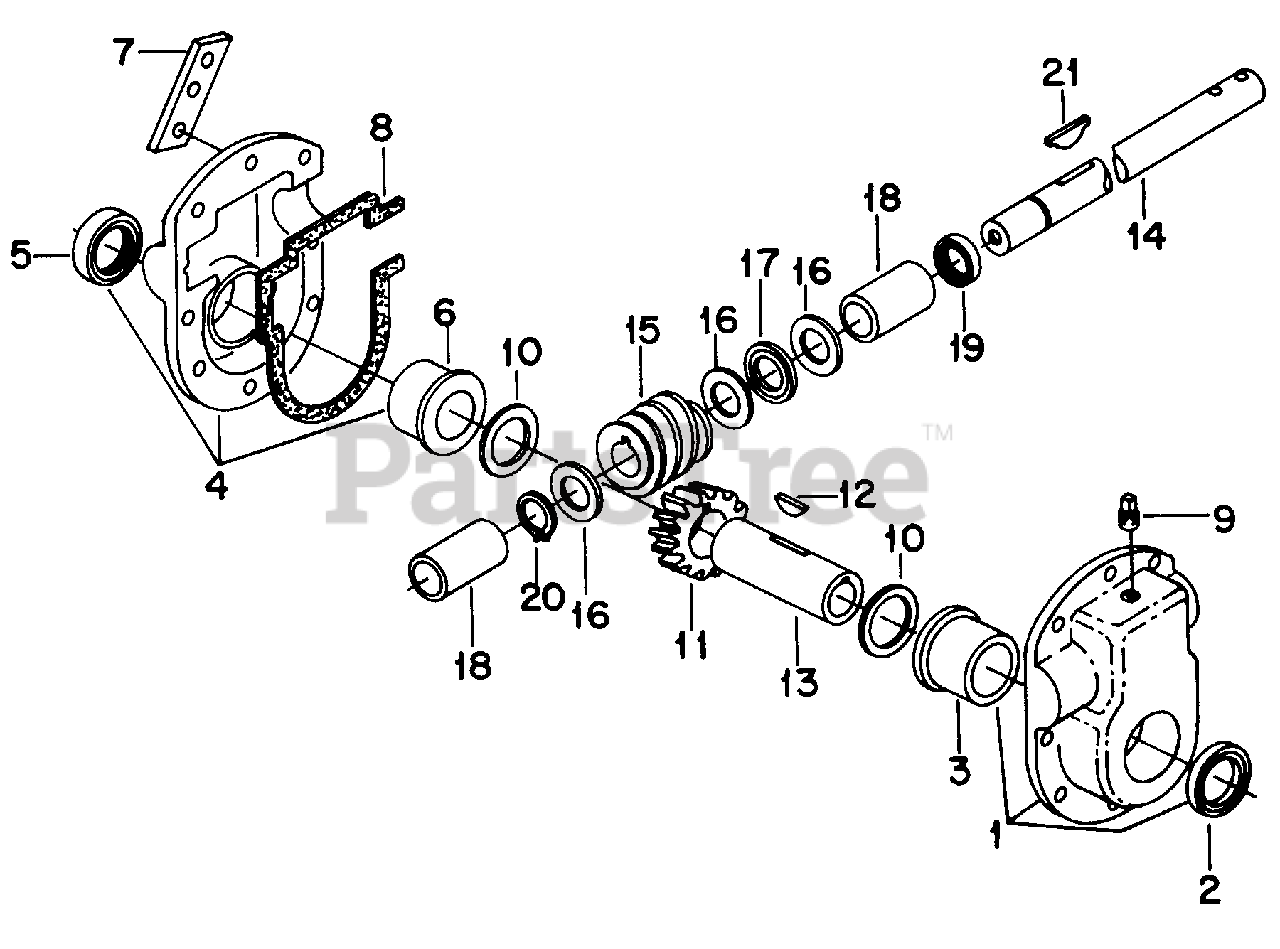

364 (190-364-100) - International Harvester 45" Snow Thrower for Cub Cadet Tractor Blower Gear Box Assembly Parts Diagram

45" Snow Thrower for Cub Cadet Tractor

Blower Gear Box Assembly Parts Diagram

  • Title

Cub Cadet IH-90444-C91

Gear Box Assy, Blower -Service parts are

$

$

Currently unavailable

1

Cub Cadet IH-90445-C91

Housing Assy, Gear Box LH
(Superseded to 753-0889)

Note: Includes Ref No. 2 & 3

$

$

Not available

2

Cub Cadet IH-90446-C1

Seal, Oil
(Superseded to 921-0146)

$13.99

$

In Stock, only 1 left!

0

3

Cub Cadet IH-90454-C1

Bearing, Flange

$

$

Not available

4

Cub Cadet IH-90455-C91

Housing Assy, Gear Box RH
(Superseded to 753-0889)

Note: Includes Ref No. 5 & 6

$

$

Not available

5

Cub Cadet IH-90446-C1

Seal, Oil
(Superseded to 921-0146)

$13.99

$

In Stock, only 1 left!

0

6

Cub Cadet IH-90454-C1

Bearing, Flange

$

$

Not available

Cub Cadet IH-180081

Bolt, 5/16 X 1-1/4 Type 5 -Housing support
(Superseded to 710-0528)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-180079

Bolt, 5/16 X 1 Type 5
(Superseded to 710-0376)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-362907-R1

Washer

$

$

Currently unavailable

Cub Cadet IH-411597-R1

Nut, 5/16 P/T Lock Type 5
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-90473-C1

Support, Gear Housing

$

$

Not available

8

Cub Cadet IH-90458-C1

Gasket, Gear Box Housing
(Superseded to 921-0144)

$12.99

$

In Stock, Qty 7

0

9

Cub Cadet IH-90468-C1

Plug, Vent
(Superseded to 737-0175)

$7.49

$

In Stock, only 4 left!

0

10

Cub Cadet IH-90460-C1

Washer, 1.50 X 2.0 X .30 Flat
(Superseded to 936-0266)

$

$

Not available

11

Cub Cadet IH-90457-C1

Gear, Worm
(Superseded to 917-1425)

$188.99

$

Usually ships in 3-6 days

0

12

Cub Cadet IH-218211

Key, 1/4 X 3/4 SAE 91 Woodruff
(Superseded to 914-0135)

$

$

Not available

13

Cub Cadet IH-90469-C1

Tube, Worm Gear Shaft
(Superseded to 738-0275)

$118.99

$

Usually ships in 3-6 days

0

14

Cub Cadet IH-90470-C1

Shaft, Blower Drive

$

$

Currently unavailable

15

Cub Cadet IH-90456-C1

Gear, Blower Worm
(Superseded to 917-0299)

$131.99

$

In Stock, only 1 left!

0

16

Cub Cadet IH-90467-C1

Washer, .88 X 1.4 X .155 Flat
(Superseded to 736-0291)

$12.99

$

Usually ships in 3-6 days

0

17

Cub Cadet IH-379783-R91

Bearing, Thrust

$

$

Not available

18

Cub Cadet IH-90472-C1

Sleeve
(Superseded to 941-0217)

$18.99

$

Usually ships in 3-6 days

0

19

Cub Cadet IH-90459-C1

Seal, Oil
(Superseded to 921-0145)

$10.99

$

In Stock, only 2 left!

0

20

Cub Cadet IH-454331-R1

Ring, .810 Ext Ret

$

$

Not available

21

Cub Cadet IH-83796-C1

Key, 3/16 X 3/4 Dia Hi-Pro #9
(Superseded to 914-0126)

$4.99

$

In Stock, Qty 20+

0
