365 (123-365-100) - Cub Cadet Self-Propelled Walk-Behind Mower (1983) Rear Shaft And Rear Wheel Assemblies Parts Diagram

Self-Propelled Walk-Behind Mower

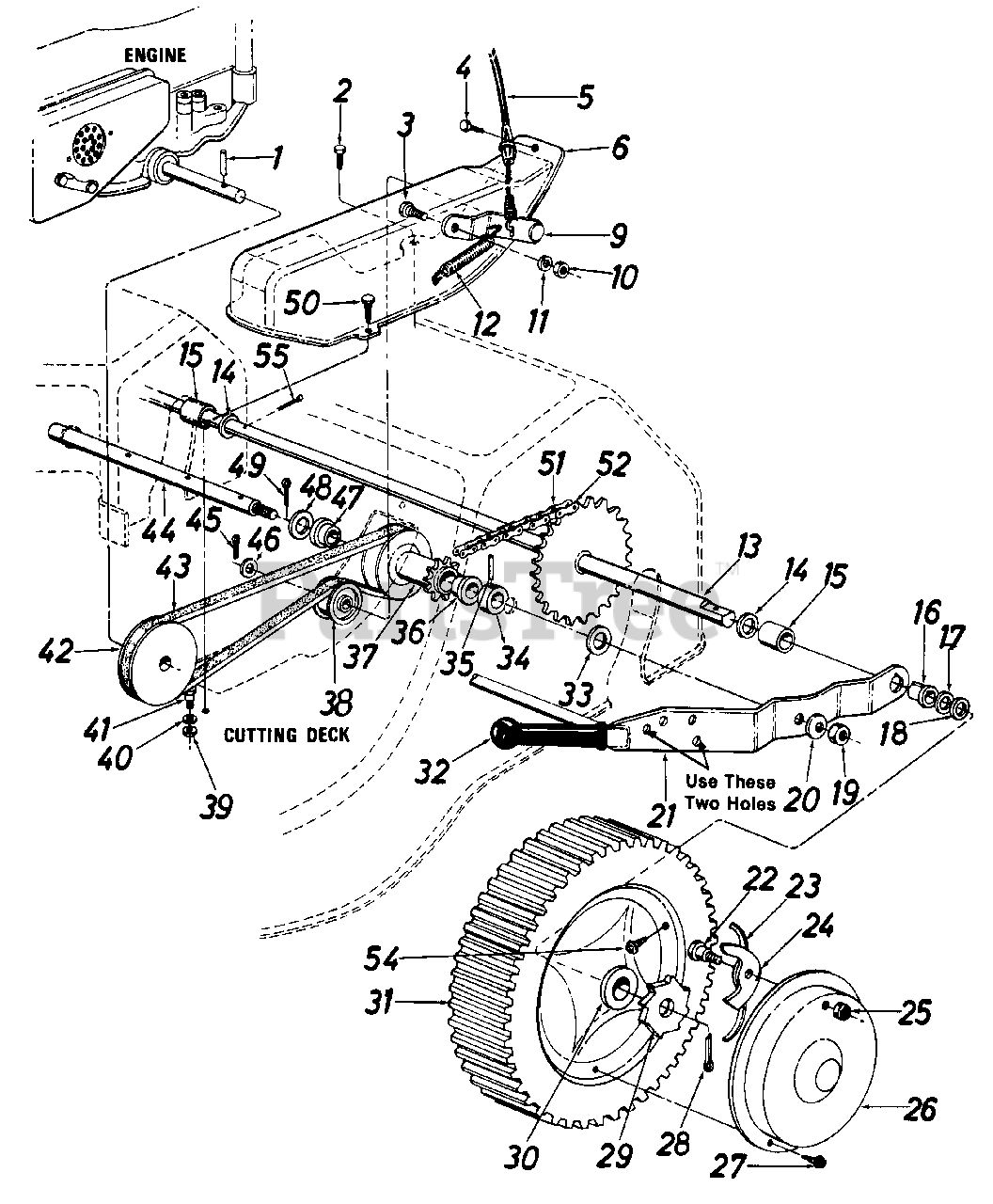

Rear Shaft And Rear Wheel Assemblies Parts Diagram

  • Title

1

Cub Cadet 715-0144

Spring Pin Roll 3/16 Dia. x 1.50

$

$

Not available

2

Cub Cadet 710-0642

Hex Wash. S. Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 738-0255

Shld. Scr. .375 Dia. x .181
(Superseded to 938-0255)

$4.99

$

In Stock, Qty 10

0

4

Cub Cadet 710-0456

Hex Drilling Scr. #10 x .50" Lg.

$

$

Not available

5

Cub Cadet 746-0463

Clutch Control Cable

$

$

Not available

6

Cub Cadet 12309

Belt Cover

$

$

Currently unavailable

9

Cub Cadet 13415

Idler Brkt. Ass'y.

$

$

Not available

10

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

12

Cub Cadet 732-0357

Extension Spring .33 O.D. x 1.12 Lg.
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet 13414

Rear Shaft Ass'y.

$

$

Not available

14

Cub Cadet 736-0326

Fl-Wash. .510 I.D. x 1.00 O.D.

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 750-0190

Spacer .765 I.D. x .89 O.D. x .96" Lg.

$

$

Not available

16

Cub Cadet 741-0324

Flange Brg. .506 I.D.
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

17

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .93 O.D.

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .93 O.D.

$3.99

$

In Stock, only 2 left!

0

19

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .060

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 14931

Rear Wheel Pivot Brkt. Ass'y.

$

$

Currently unavailable

22

Cub Cadet 738-0137

Shld. Scr. .342 Dia. x .268

$

$

Not available

23

Cub Cadet 10622

Spring Nylon
(Superseded to 10622BP)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 748-0188

Pawl
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 18

0

25

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

26

Cub Cadet 10647

Hub Cap

$

$

Not available

27

Cub Cadet 710-0748

Pan Hd. Tap Scr. #12 x .50" Lg.

$

$

Not available

28

Cub Cadet 714-0115

Cotter Pin 1/8 Dia. x 1.00" Lg.

$3.99

$

In Stock, only 1 left!

0

29

Cub Cadet 748-0187

Ratchet

$

$

Not available

30

Cub Cadet 741-0262

Flange Bearing

$7.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 734-0880

Wheel Ass'y. Comp. - Rear

$

$

Not available

32

Cub Cadet 720-0143

Grip

$

$

Not available

33

Cub Cadet 736-0219

Bell-Wash. .400 I.D. x 1.13 O.D. x .040
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

34

Cub Cadet 750-0387

Spacer .505 I.D. x .88 O.D. x .440

$

$

Not available

35

Cub Cadet 715-0120

Spring Pin Roll 3/16 Dia. x 1.00" Lg.

$9.99

$

In Stock, only 4 left!

0

36

Cub Cadet 741-0248

Flange Brg. .506 I.D. - Plastic

$8.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 756-0191

Pulley w/9 Tooth Sprocket Ass'y.

$

$

Not available

38

Cub Cadet 756-0360

Plastic Flat Idler

$

$

Not available

39

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 738-0141

Shld. Scr. .437 Dia. x .350
(Superseded to 938-0141)

$6.99

$

In Stock, Qty 8

0

42

Cub Cadet 756-0384

Engine Pulley

$

$

Not available

43

Cub Cadet 754-0252

"V"-Belt 1/2" x 33" Lg.
(Superseded to 954-0252)

$

$

Not available

44

Cub Cadet 738-0471

Pulley Shaft

$

$

Not available

45

Cub Cadet 714-0115

Cotter Pin 1/8 Dia. x 1.00" Lg.

$3.99

$

In Stock, only 1 left!

0

46

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .930 x .050

$3.99

$

In Stock, only 2 left!

0

47

Cub Cadet 741-0248

Flange Brg. .506 I.D.

$8.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .930 x .050

$3.99

$

In Stock, only 2 left!

0

49

Cub Cadet 714-0111

Cotter Pin 3/32 Dia. x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 710-0599

Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 713-0144

#48 Chain 1/2" Pitch x 31 Links
(Superseded to 913-0144)

$

$

Not available

52

Cub Cadet 713-0122

#48 Master Link 1/2" Pitch

$

$

Not available

54

Cub Cadet 710-0200

Hex Wash. Hd. Self-Tap Scr. Type "A" #8 x .50" Lg.

$

$

Not available

55

Cub Cadet 714-0111

Cotter Pin 3/32" Dia. x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0
