365 (124-365-100) - Cub Cadet Self-Propelled Walk-Behind Mower (1984) Rotary Mower Parts Diagram

Self-Propelled Walk-Behind Mower

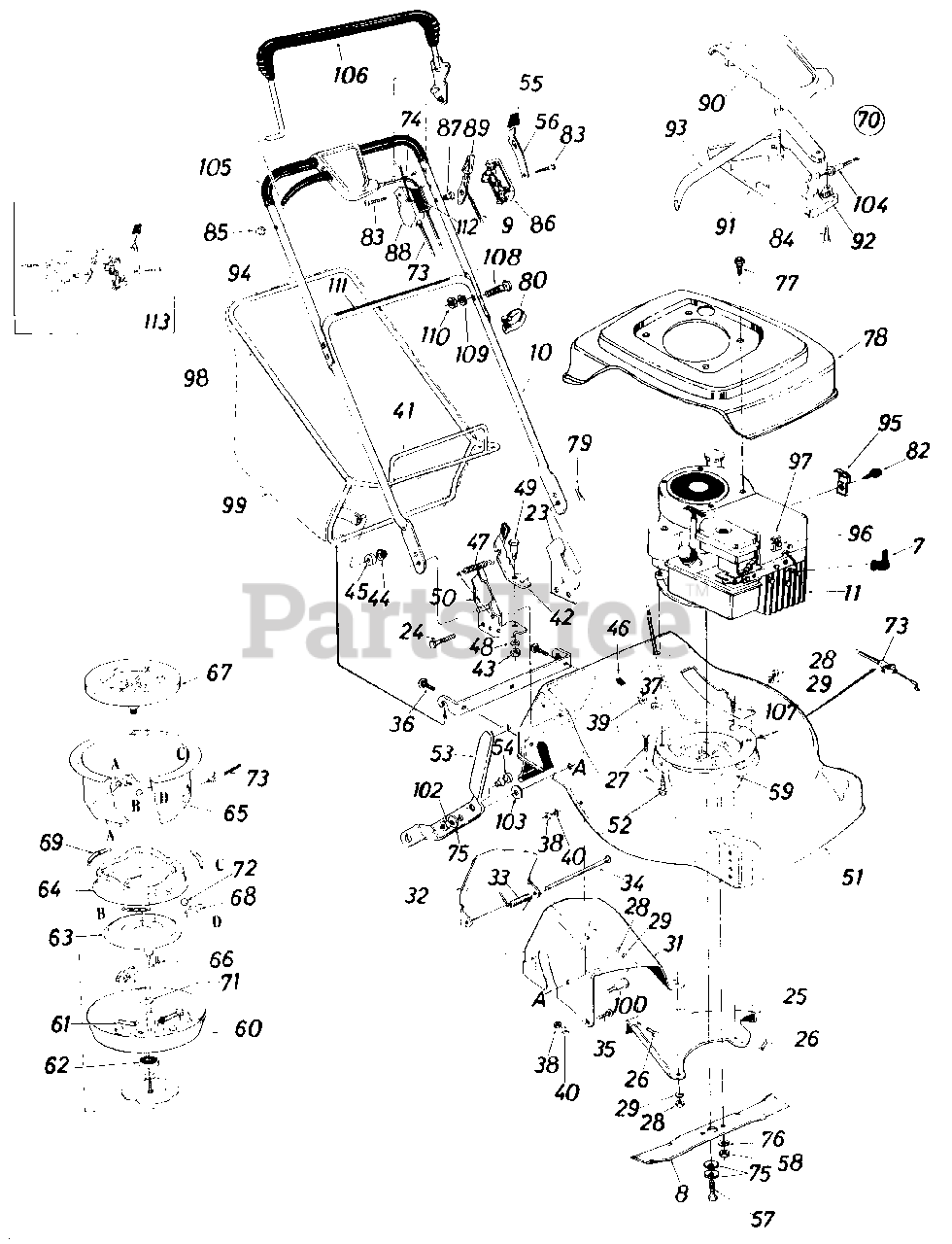

Rotary Mower Parts Diagram

  • Title

?2

Cub Cadet 731-0582

Rear Flap Ass'y.

$

$

Not available

7

Cub Cadet 735-0639

Spark Plug Boot

$

$

Not available

8

Cub Cadet 742-0222

22" Blade

$

$

Not available

9

Cub Cadet 746-0472

Throttle Control Wire - 58"
(Superseded to 946-0674A)

$19.99

$

In Stock, only 2 left!

0

10

Cub Cadet 749-0505

Lower Handle
(Superseded to 749-0907B)

$53.99

$

In Stock, only 2 left!

0

11

Engine

$

$

Not available

23

Cub Cadet 12297

Handle Brkt. Ass'y. - L.H.

$

$

Not available

24

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 15

0

25

Cub Cadet 14014

Rear Baffle - L.H.

$

$

Currently unavailable

26

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$5.49

$

In Stock, Qty 15

0

27

Cub Cadet 710-0206

Hex Bolt 1/4-20 x .88" Lg.

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

?30

Cub Cadet 14012

Grass Catcher Hitch Brkt.

$

$

Not available

31

Cub Cadet 14235

Rear Chute Baffle Ass'y.

$

$

Not available

32

Cub Cadet 13407

Chute Door

$

$

Not available

33

Cub Cadet 732-0346

Torsion Spring

$

$

Not available

34

Cub Cadet 738-0386

Hinge Pin .250" Dia. 7.88" Lg.

$

$

Not available

35

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$5.49

$

In Stock, Qty 15

0

36

Cub Cadet 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 9

0

37

Cub Cadet 712-0271

Sems Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 13

0

38

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0211

Fl-Wash. .285" I.D. x 1.25" O.D.

$7.49

$

In Stock, only 2 left!

0

40

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

41

Cub Cadet 14582

Grass Catcher Lower Frame Ass'y.

Variations

14582-0637

Cub Cadet 14582-0637

FRAME-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 14845

Grass Catcher Lock Lever w/Knob

$

$

Not available

43

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 726-0100

Push Nut 3/8" Rod

$4.99

$

In Stock, only 1 left!

0

45

Cub Cadet 731-0430

Plastic Roller

$

$

Not available

46

Cub Cadet 731-0564

Plug

$

$

Not available

47

Cub Cadet 732-0357

Extension Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$4.99

$

In Stock, only 3 left!

0

48

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

49

Cub Cadet 738-0155

Shld. Bolt .437" Dia. x .162" Lg.
(Superseded to 938-0155)

$7.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 14592

Handle Brkt. Ass'y. - R.H.

$

$

Currently unavailable

51

Cub Cadet 14905

22" Deck Ass'y.

Note: Code N

$

$

Currently unavailable

52

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 14931

Rear Wheel Pivot Brkt. Ass'y.

$

$

Currently unavailable

54

Cub Cadet 735-0199

Rubber Bumper
(Superseded to 935-0199A)

$8.49

$

In Stock, Qty 13

0

55

Cub Cadet 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$14.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 732-0401

Lockout Lever

$

$

Not available

57

Cub Cadet 710-0818

Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8)

$7.49

$

In Stock, only 2 left!

0

58

Cub Cadet 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.99

$

In Stock, only 2 left!

0

59

Cub Cadet 717-0485

Blade Brake Clutch Ass'y. Comp.

$

$

Not available

60

Cub Cadet 14300

Clutch Blade Housing Ass'y.

$

$

Not available

61

Cub Cadet 732-0396

Compression Spring .35" O.D. x 2.00" Lg.

$

$

Not available

62

Cub Cadet 741-0124

Ball Brg. .669" I.D. x 1.574" O.D. x .47
(Superseded to 941-0600)

$26.99

$

In Stock, Qty 20+

0

63

Cub Cadet 14304

Clutching Cone

$

$

Not available

64

Cub Cadet 14305

Brake Cup Cone

$

$

Currently unavailable

65

Cub Cadet 14307

Clutch Housing

$

$

Not available

66

Cub Cadet 710-0875

Hex TT-Tap L-Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, only 1 left!

0

67

Cub Cadet 719-0256

Fan Adapter

$

$

Not available

68

Cub Cadet 731-0520

Ball Block

$

$

Not available

69

Cub Cadet 732-0397

Extension Spring .35" O.D. x 1.75" Lg

$

$

Not available

70

Cub Cadet 753-0362

Clutch Control Housing - Comp.

Note: Code N; (Incl, Ref. Nos. 84, 90, 91, 92 & 93)

$

$

Not available

71

Cub Cadet 736-0333

Fl-Wash. .690" I.D. x 1.060" O.D.

$

$

Not available

72

Cub Cadet 741-0326

Steel Ball .500" Dia.

$

$

Not available

73

Cub Cadet 746-0400

Blade Clutch Cable - 46"

$

$

Not available

74

Cub Cadet 731-0607

Lock Pin .314" Dia. x 1.70" Lg.

$

$

Not available

75

Cub Cadet 736-0105

Bell-Wash. .44" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 6

0

76

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 11

0

77

Cub Cadet 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 15492

Engine Shroud

$

$

Currently unavailable

79

Cub Cadet 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 10

0

80

Cub Cadet 726-0192

Cable Tie

$

$

Not available

82

Cub Cadet 710-0227

Hex AB-Tap Scr. #8 x .38" Lg.

$4.49

$

In Stock, Qty 20+

0

83

Cub Cadet 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.99

$

In Stock, Qty 6

0

84

Cub Cadet 710-0841

Flat "C"-Sunk Hd. Scr. #10 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 726-0135

Cap Speed Nut 5/16" Rod

$7.49

$

In Stock, Qty 10

0

86

Cub Cadet 731-0523

Control Panel Half

$

$

Not available

87

Cub Cadet 731-0524

Control Disc Pin

$

$

Not available

88

Cub Cadet 731-0526

Clutch Panel Half

$

$

Not available

89

Cub Cadet 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$10.99

$

In Stock, Qty 13

0

90

Cub Cadet 731-0617

Control Cover Half - Upper
(Superseded to 731-0617A)

$

$

Not available

91

Cub Cadet 731-0618

Control Cover Half - Lower
(Superseded to 753-0833)

$53.99

$

In Stock, only 2 left!

0

92

Cub Cadet 731-0619

Cable Mtg. Cap

$

$

Not available

93

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$16.99

$

In Stock, Qty 6

0

94

Cub Cadet 749-0437

Upper Handle

$

$

Currently unavailable

95

Cub Cadet 12894

Casing Clamp

$

$

Not available

96

Cub Cadet 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 751-0369

Casing Clamp

Note: Code N

$

$

Not available

98

Cub Cadet 749-0278

Grass Catcher Upper Frame

$

$

Not available

99

Cub Cadet 764-0171

Grass Catcher Bag
(Superseded to 964-0171B)

$

$

Not available

100

Cub Cadet 738-0430

Shld. Bolt .500" Dia. x .685" Lg.

$12.99

$

In Stock, only 2 left!

0

102

UNKNOWN

$

$

Not available

103

Cub Cadet 736-0219

Bell-Wash. .400" I.D.
(Superseded to 936-0219)

$4.49

$

In Stock, only 1 left!

0

104

Cub Cadet 746-0463

Drive Clutch Cable - 50"

$

$

Not available

105

Cub Cadet 718-0145

Grip

$

$

Currently unavailable

106

Cub Cadet 731-0609

Blade Clutch Control Handle

$

$

Not available

107

Cub Cadet 710-0642

Hex Wash, Hd. Self-Tap Scr. 1/4-20 x 75" Lg

$4.99

$

In Stock, Qty 20+

0

108

Cub Cadet 710-0671

Curved Hd. Carr. Bolt 5/16-18 x 1.38

$

$

Not available

109

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

110

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

111

Cub Cadet 777-3453

Instruction Label - Handle

$

$

Currently unavailable

112

Cub Cadet 777-3456

Control Label - Throttle

$

$

Not available

113

Cub Cadet 753-0361

Control Housing Comp.

Note: Code N

$

$

Not available

Cub Cadet 8365-100-4

Hardware Pack

$

$

Currently unavailable
