365 (53CA1B6K100) - Cub Cadet 36" Zero-Turn Mower Final Drive Assembly Parts Diagram

36" Zero-Turn Mower

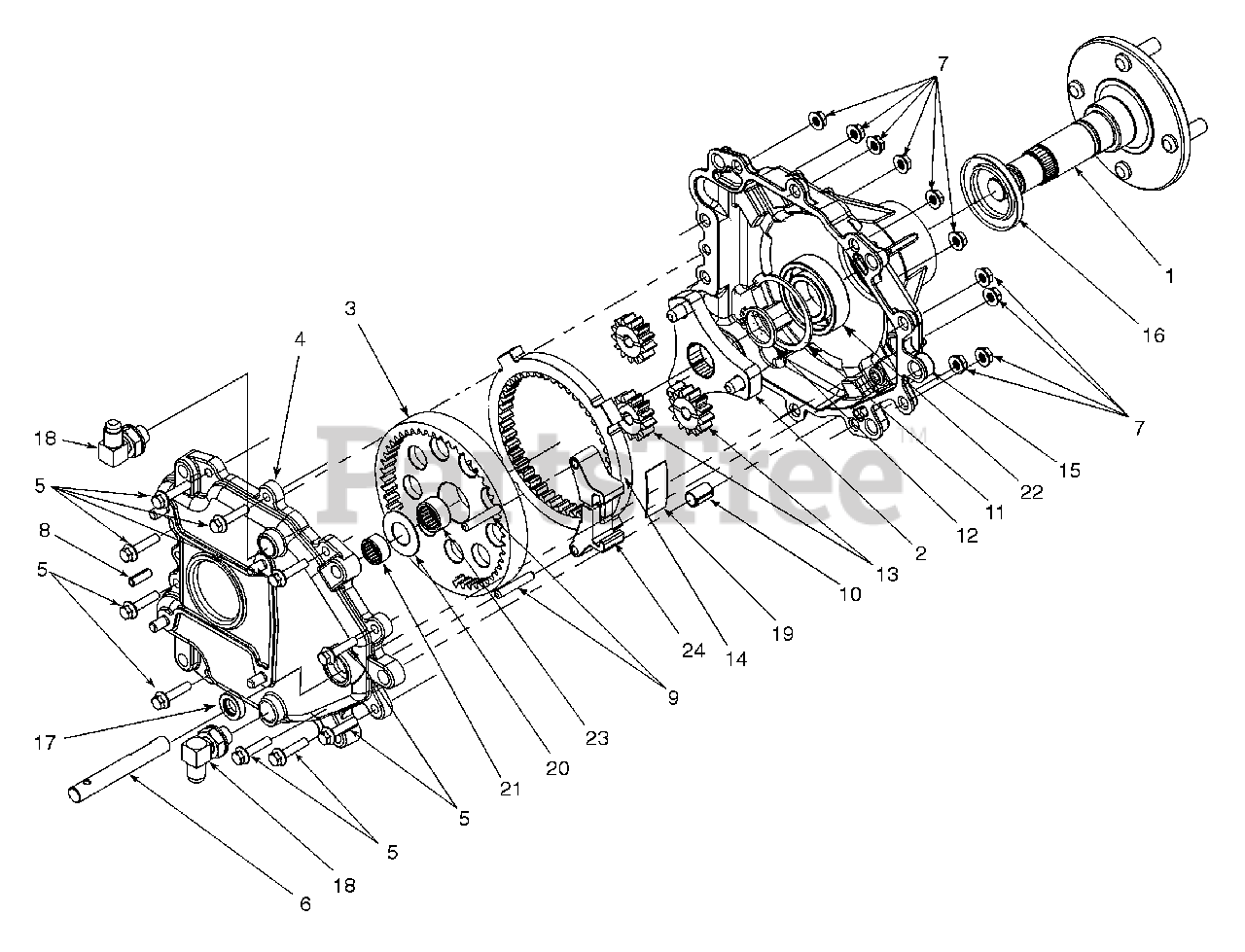

Final Drive Assembly Parts Diagram

  • Title

Cub Cadet 618-3110A

Drive Ass'y

Note: Complete

$

$

Not available

1

Cub Cadet 611-3012

Axle Assembly
(Superseded to 911-3027)

$

$

Not available

Cub Cadet 710-0852

Ribbed Neck Stud

$5.99

$

In Stock, Qty 20+

0

2

Cub Cadet 618-3106

Carrier Assembly, Output
(Superseded to 918-3106)

$116.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-3107

Gear Assembly, 51T Internal & 20T
(Superseded to 918-3107)

$199.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-3109

Housing Ass'y
(Superseded to 918-3109A)

$

$

Not available

5

Cub Cadet 710-1342

Hex Washer Screw 1/4-20 x 1-1/8

$

$

Not available

6

Cub Cadet 711-1048

Brake Shaft

$

$

Not available

7

Cub Cadet 712-3027

Hex Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 715-0156

Roll Pin

$3.99

$

In Stock, only 1 left!

0

9

Cub Cadet 715-0219

Dowel Pin

$

$

Not available

10

Cub Cadet 715-3045

Bushing
(Superseded to 915-3045)

$9.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 716-3015

Inverted Retaining Ring

$11.99

$

In Stock, only 4 left!

0

12

Cub Cadet 716-3018

Snap Ring

$6.49

$

In Stock, only 2 left!

0

13

Cub Cadet 717-3395

Spur Gear 13T

$

$

Not available

14

Cub Cadet 717-3397

Ring Gear 46T

$76.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 719-3114

Axle Outer Housing
(Superseded to 919-3114A)

$284.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 721-0381

Oil Seal
(Superseded to 921-0381)

$17.99

$

In Stock, only 2 left!

0

17

Cub Cadet 721-0393

Oil Seal

$11.99

$

In Stock, only 2 left!

0

18

Cub Cadet 727-3124

Elbow Fitting
(Superseded to 01002602)

$

$

Not available

19

Cub Cadet 732-0752

Brake Shoe Spring

$

$

Not available

20

Cub Cadet 736-0351

Shim Washer .76 x 1.5 x .030

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0492

Shim Washer .76 x 1.5 x .010
(Superseded to 936-0492)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 736-0493

Shim Washer .76 x 1.5 x .020
(Superseded to 936-0493)

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 741-0665

Needle Bearing

$19.99

$

In Stock, only 1 left!

0

22

Cub Cadet 741-3033A

Ball Bearing
(Superseded to 941-3033A)

$50.99

$

In Stock, Qty 9

0

23

Cub Cadet 741-3080

Needle Bearing

$22.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 761-3049

Shoe Brake

$

$

Not available
