365 (53CA1B6K100) - Cub Cadet 36" Zero-Turn Mower Seat Assembly Parts Diagram

36" Zero-Turn Mower

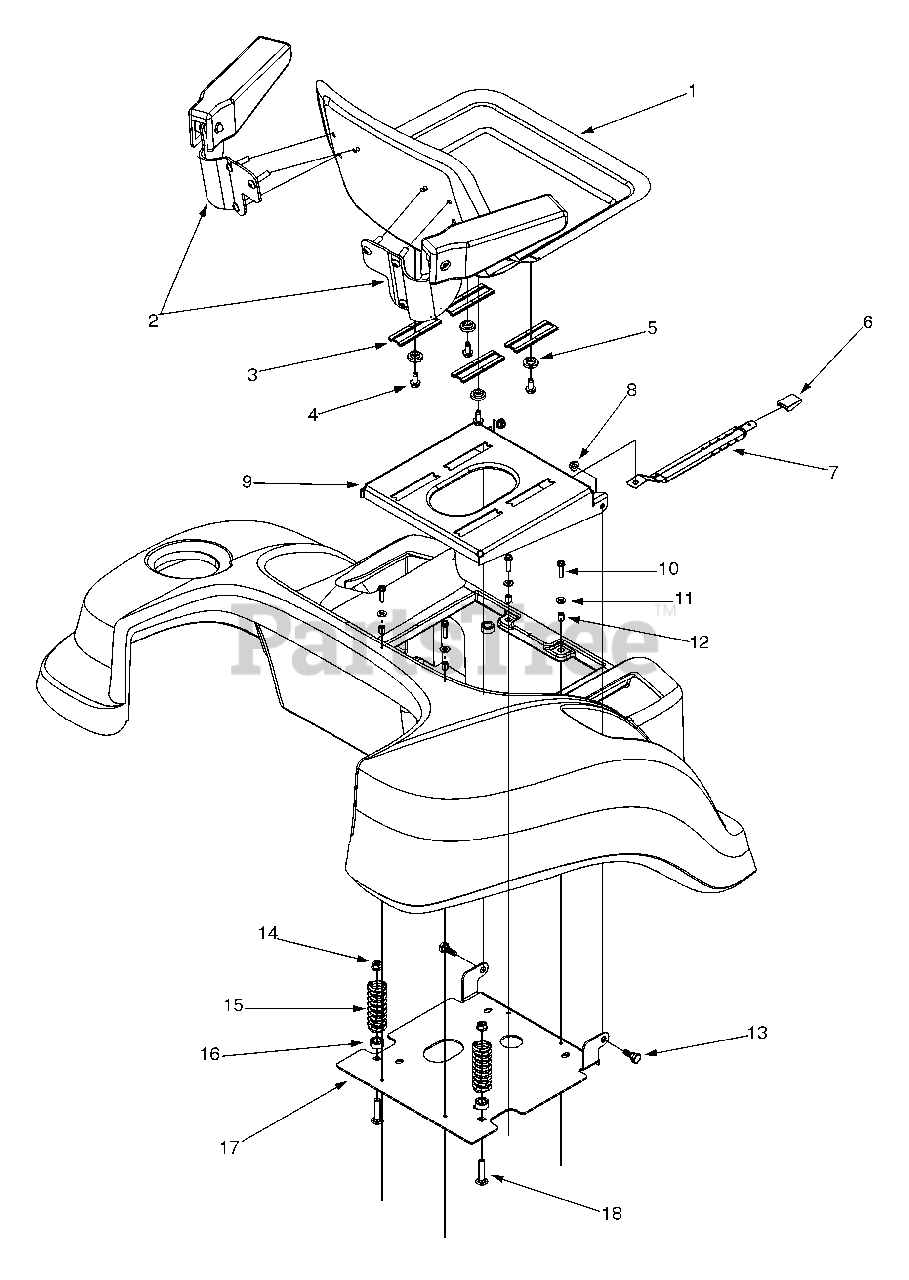

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 757-0375B

Seat Ass'y

$

$

Not available

2

Cub Cadet 757-3009

Seat Arm Ass'y

Note: (If Equipped)

$

$

Not available

3

Cub Cadet 731-3154

Seat Slide

$

$

Not available

4

Cub Cadet 710-1260A

Hex Washer Screw 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$8.99

$

In Stock, Qty 20+

0

6

Cub Cadet 720-0190

Height Adjuster Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

7

Cub Cadet 732-3098

Spring Index

$

$

Not available

8

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 603-0294

Seat Base Bracket Ass'y

$

$

Not available

10

Cub Cadet 710-0788

Hex Washer Screw 1/4-20 x 1.0

$6.99

$

In Stock, only 4 left!

0

11

Cub Cadet 736-0463

Flat Washer .25 x .630

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 750-3274

Spacer

$

$

Currently unavailable

13

Cub Cadet 738-0296

Shoulder Screw

$3.99

$

In Stock, Qty 13

0

14

Cub Cadet 712-3005

Flange Lock Nut 3/8-16

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-3080

Compression Spring
(Superseded to 732-3080A)

$12.99

$

In Stock, Qty 20+

0

16

Cub Cadet 750-0664

Spacer

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 603-0730

Seat Plate Ass'y

$

$

Not available

18

Cub Cadet 710-0560

Hex Carriage Screw 3/8-16 x 1.75

$6.49

$

In Stock, Qty 18

0
