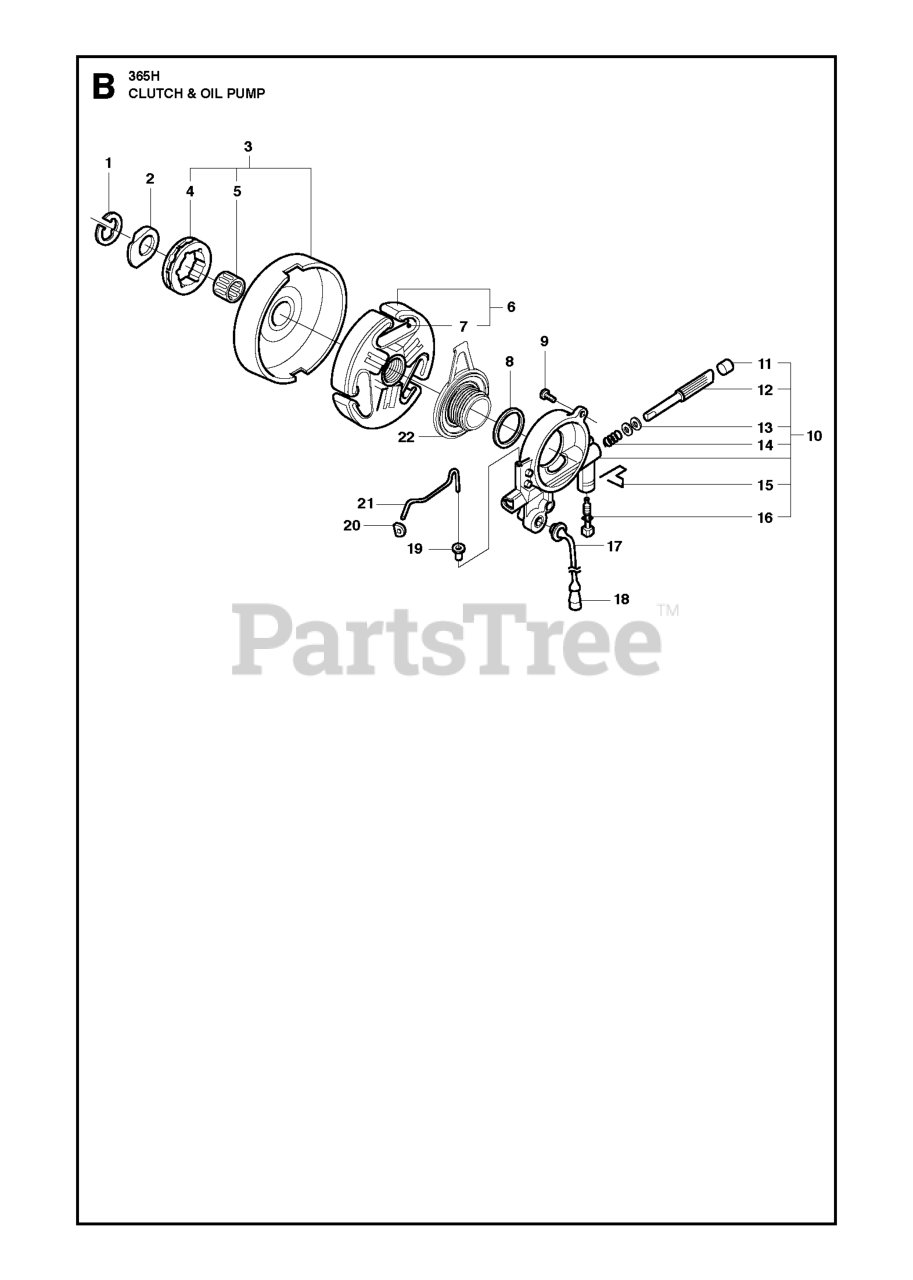

365 H - Husqvarna Chainsaw CLUTCH & OIL PUMP Parts Diagram

Chainsaw

CLUTCH & OIL PUMP Parts Diagram

  • Title

16

Husqvarna 503811301

SCREW

$3.49

$

In Stock, Qty 9

0

3

Husqvarna 503932472

CLUTCH DRUM
(Superseded to 586980602)

Note: "3/8""x8T"

$65.99

$

In Stock, only 2 left!

0

17

Husqvarna 503426701

OIL HOSE

$14.99

$

In Stock, only 4 left!

0

9

Husqvarna 725532956

SCREW MC6S 5X16
(Superseded to 725532955)

$3.99

$

In Stock, Qty 13

0

12

Husqvarna 503521501

PUMP PISTON

$20.99

$

In Stock, only 2 left!

0

4

Husqvarna 505303661

22273 Sprocket 3/8"x8T
(Superseded to 640200216)

Note: "3/8""x8T"

$

$

Not available

21

Husqvarna 503774301

PIPE

$13.99

$

In Stock, only 2 left!

0

14

Husqvarna 501615801

SPRING

$8.49

$

In Stock, only 2 left!

0

15

Husqvarna 503813001

SPRING CLIP

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 504300026

SEAL

$5.99

$

In Stock, Qty 7

0

1

Husqvarna 503272101

RETAINING RING

$3.99

$

In Stock, Qty 12

0

10

Husqvarna 503521303

OIL PUMP
(Superseded to 503521305)

$102.99

$

In Stock, only 2 left!

0

13

Husqvarna 503230004

WASHER 6.1X9

$3.99

$

In Stock, only 1 left!

0

7

Husqvarna 537360601

SPRING

$7.49

$

In Stock, only 2 left!

0

20

Husqvarna 503644701

GROMMET

$9.99

$

In Stock, Qty 5

0

22

Husqvarna 537207805

OIL PUMP DRIVE
(Superseded to 582270107)

$21.99

$

In Stock, only 2 left!

0

6

Husqvarna 503744401

CLUTCH
(Superseded to 586798401)

$65.99

$

In Stock, only 2 left!

0

3

Husqvarna 503932471

CLUTCH DRUM
(Superseded to 586980601)

Note: "3/8""x7T"

$45.99

$

In Stock, only 2 left!

0

5

Husqvarna 503432001

CLUTCH DRUM BEARING

$17.99

$

In Stock, only 4 left!

0

2

Husqvarna 503752401

WASHER

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 503624901

PLUG

$9.99

$

In Stock, only 1 left!

0

18

Husqvarna 501544102

OIL SCREEN

$23.99

$

In Stock, only 2 left!

0

4

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: "3/8""x7T"

$7.99

$

In Stock, only 4 left!

0

8

Husqvarna 503230059

WASHER

$4.99

$

In Stock, only 2 left!

0
