365 - Husqvarna Chainsaw (SN: 20101800001 - 20111800000) FUEL TANK Parts Diagram

Chainsaw

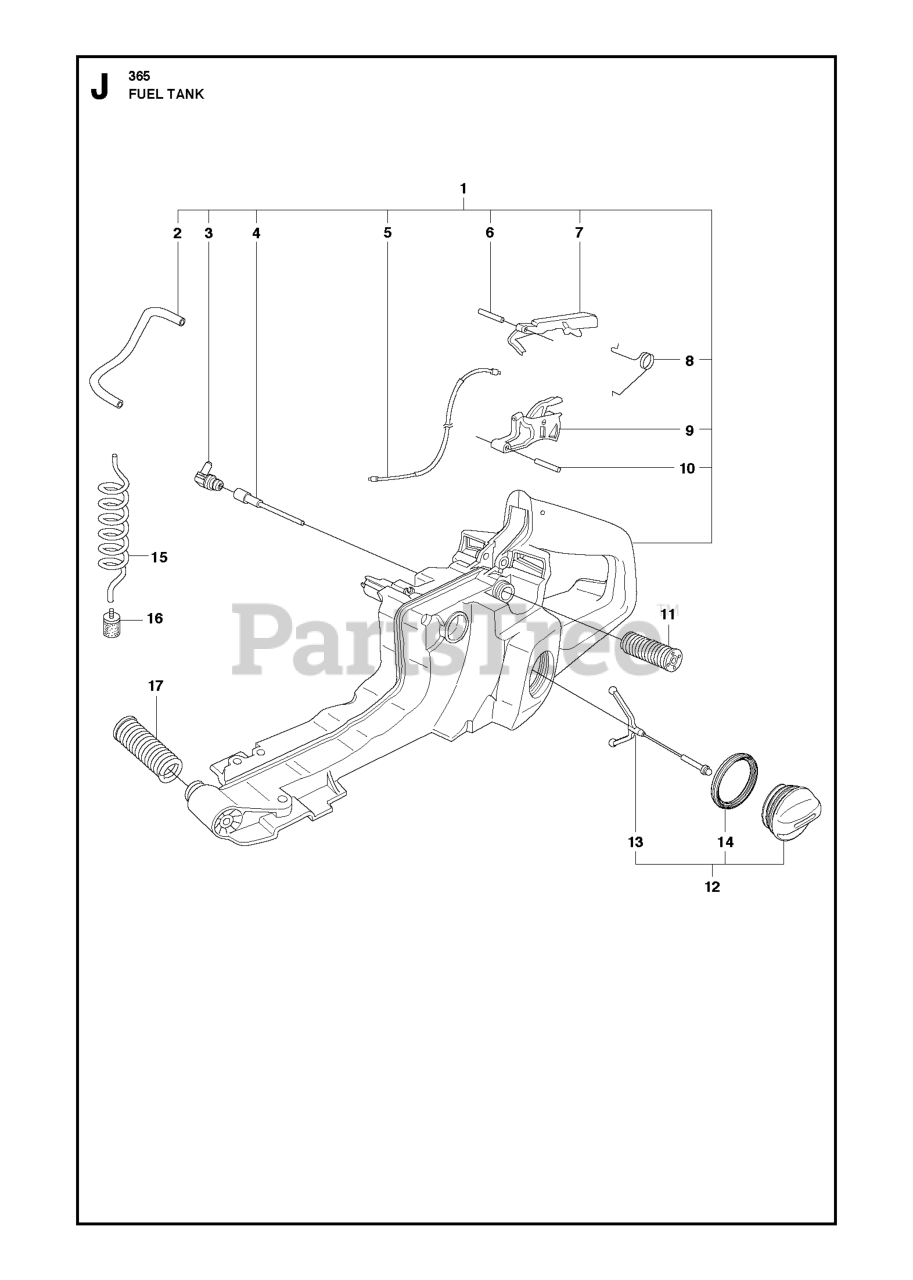

FUEL TANK Parts Diagram

  • Title

10

Husqvarna 720127220

PIN CPH8 4X20

$3.49

$

In Stock, only 4 left!

0

11

Husqvarna 503895601

ANTIVIBE MOUNT

Note: Std

$20.99

$

In Stock, Qty 8

0

16

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

15

Husqvarna 544325002

FUEL HOSE
(Superseded to 591375201)

$5.99

$

In Stock, Qty 20+

0

17

Husqvarna 503637601

ANTIVIBE MOUNT
(Superseded to 503637603)

Note: Std

$20.99

$

In Stock, only 2 left!

0

14

Husqvarna 537215001

SEALING
(Superseded to 589241101)

$6.99

$

In Stock, only 2 left!

0

2

Husqvarna 544324906

HOSE
(Superseded to 581756106)

$6.99

$

In Stock, Qty 10

0

13

Husqvarna 503578901

TANK LOCK

$5.99

$

In Stock, Qty 8

0

3

Husqvarna 537099301

CONNECTOR

$6.99

$

In Stock, only 2 left!

0

8

Husqvarna 503736401

SPRING

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 503895602

ANTIVIBE MOUNT

Note: Hard

$20.99

$

In Stock, only 2 left!

0

1

Husqvarna 544114007

TANK/HANDLE ASSY
(Superseded to 544114013)

$113.99

$

In Stock, only 2 left!

0

17

Husqvarna 503637602

AV SPRING (HARD)
(Superseded to 503637604)

Note: Hard

$17.99

$

In Stock, only 2 left!

0

5

Husqvarna 503717601

WIRE

$13.99

$

In Stock, Qty 10

0

12

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

$11.99

$

In Stock, Qty 16

0

9

Husqvarna 503829801

THROTTLE TRIGGER

$13.99

$

In Stock, only 2 left!

0

4

Husqvarna 537092201

TANK VALVE

$17.99

$

In Stock, only 2 left!

0

7

Husqvarna 503556601

THROTTLE CATCH

$9.49

$

In Stock, Qty 20+

0

6

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0
