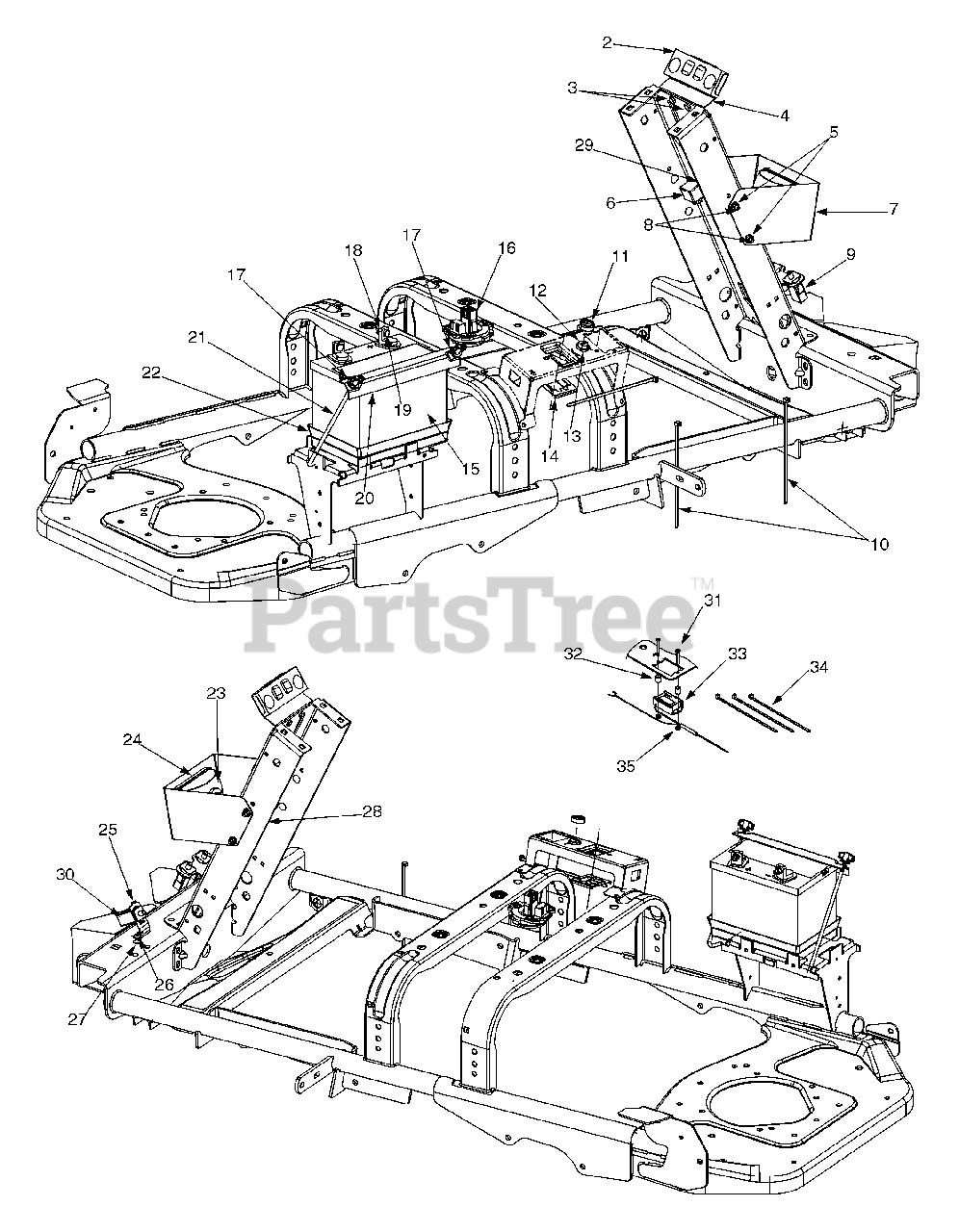

365 L (53CA1D5K100) - Cub Cadet 36" Zero-Turn Mower Battery, Electrical Components And Switches Parts Diagram

36" Zero-Turn Mower

Battery, Electrical Components And Switches Parts Diagram

  • Title

?1

Cub Cadet 629-3032

Wire Harness, Main

Note: Not Shown

$

$

Not available

2

Cub Cadet 723-0455

Foam Protector, Indicator Light

$

$

Not available

3

Cub Cadet 710-3013

Hex Cap Screw 1/4-20 x .50

$4.99

$

In Stock, Qty 7

0

4

Cub Cadet 703-2809

Bracket, Indicator Bulb Mtg.

Variations

703-2809-0637

Cub Cadet 703-2809-0637

BRACKET, INDICATOR LG(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 19

0

6

Cub Cadet 725-1718

Relay
(Superseded to 925-1718)

$77.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-2836

Bracket, Headlight Mtg.

Variations

703-2836-0498

Cub Cadet 703-2836-0498

BRACKET-HEADLIGHT - OLD CUB YELLOW (0498)

$

$

Not available

703-2836-0637

Cub Cadet 703-2836-0637

BRACKET-HEADLIGHT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 725-3164A

Switch, Plunger Safety
(Superseded to 925-3164A)

$42.99

$

In Stock, only 3 left!

0

10

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 725-1347

Cap, Ignition Switch

$5.49

$

In Stock, Qty 10

0

12

Cub Cadet 725-1346

Nut, Ignition Switch, 5/8-32
(Superseded to 925-1346)

$

$

Not available

13

Cub Cadet 725-1717

Switch, Ignition
(Superseded to 925-1717)

$55.99

$

In Stock, only 3 left!

0

14

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$

$

Not available

15

Cub Cadet 725-1722

Battery

$

$

Not available

16

Cub Cadet 725-3254

Switch, Seat

$

$

Not available

17

Cub Cadet 712-0397

Nut, Nylon Wing, 1/4-20
(Superseded to 712-0397A)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.99

$

In Stock, Qty 13

0

19

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 703-3149

Strip, Battery Retainer

$

$

Not available

21

Cub Cadet 747-3347

Rod, Battery Retainer

$

$

Not available

22

Cub Cadet 731-3233

Tray, Battery

$

$

Not available

23

Cub Cadet 725-3250

Headlight Assembly
(Superseded to 925-3250)

$

$

Not available

Cub Cadet 759-3864

Bulb, Headlight - Only
(Superseded to 925-1759)

$54.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-3184

Bezel, Headlight

$

$

Not available

25

Cub Cadet 732-0816

Spring, Switch Mounting

$

$

Not available

26

Cub Cadet 710-0425

Screw, Machine, #10-24 x 5/8

$5.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-0161

Nut, Hex Insert Lock, #10-24

$4.99

$

In Stock, Qty 12

0

28

Cub Cadet 725-3251

Voltage Sensor
(Superseded to 925-3251)

$52.99

$

In Stock, Qty 5

0

29

Cub Cadet 726-0349

Ratchet Retainer

$

$

Not available

30

Cub Cadet 725-3191A

Switch, Plunger Safety
(Superseded to 925-3191A)

$57.99

$

In Stock, only 2 left!

0

31

Cub Cadet 710-3143

Machine Screw #10-24

$12.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 750-0539

Spacer .315 ID x .50 OD
(Superseded to 950-0539)

$

$

Not available

33

Cub Cadet 725-3229

Hour Meter

$

$

Not available

34

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-0161

Lock Nut #10-24

$4.99

$

In Stock, Qty 12

0
