365 L (53CA1D5K100) - Cub Cadet 36" Zero-Turn Mower Engine Internal (Model 365L) Parts Diagram

36" Zero-Turn Mower

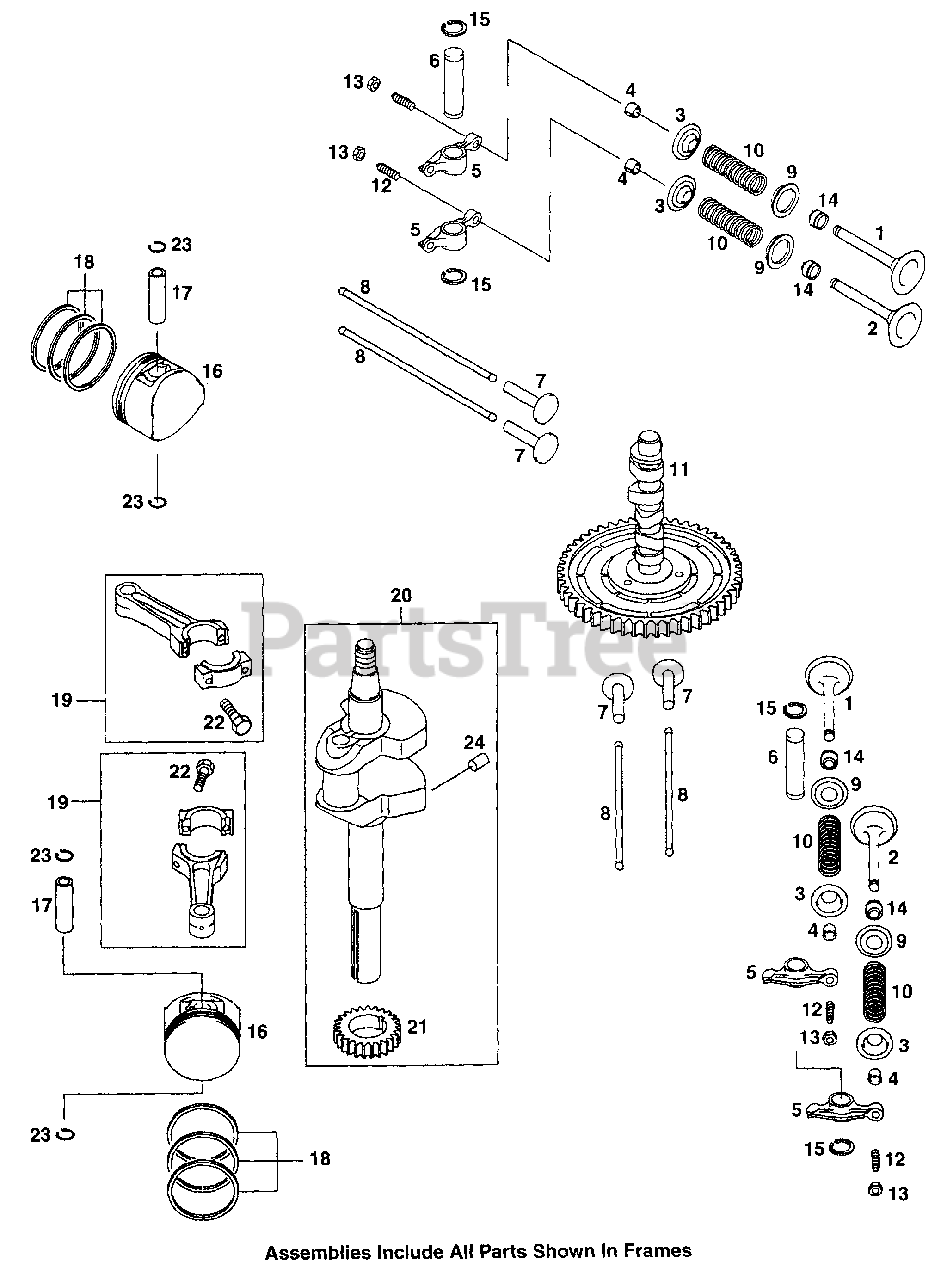

Engine Internal (Model 365L) Parts Diagram

  • Title

1

Cub Cadet KM-12004-2106

Intake Valve
(Superseded to KM-12004-2116)

$24.99

$

In Stock, only 2 left!

0

2

Cub Cadet KM-12005-2094

Exhaust Valve

$30.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-12009-2067

Valve Spring Retainer

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet KM-12011-2056

Collet

$2.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-12016-2056

Rocker Arm

$19.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-12020-2059

Rocker Shaft

$5.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-12032-2064

Tappet

$11.99

$

In Stock, only 3 left!

0

8

Cub Cadet KM-13116-2057

Push Rod

$4.99

$

In Stock, Qty 16

0

9

Cub Cadet KM-39108-2057

Spring Retainer

$0.99

$

In Stock, only 4 left!

0

10

Cub Cadet KM-49078-2071

Valve Spring

$2.49

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-49118-2063

Complete Camshaft
(Superseded to KM-12044-2242)

$

$

Not available

12

Cub Cadet KM-92009-1109

Screw

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KM-92015-1137

Nut

$1.49

$

In Stock, Qty 5

0

14

Cub Cadet KM-92049-2109

Oil Seal

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-480J1200

Circlip

$0.99

$

In Stock, Qty 5

0

16

Cub Cadet KM-13001-2123

Piston

$54.99

$

Usually ships in 2-5 days

0

Cub Cadet KM-13029-2090

Piston L,.25

$41.99

$

In Stock, only 2 left!

0

Cub Cadet KM-13029-2091

Piston L,.50

$58.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-13002-1013

Piston Pin

$7.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-13008-6016

Piston Ring Set

$37.99

$

In Stock, only 2 left!

0

Cub Cadet KM-13025-6001

Piston Ring Set L,.25

$

$

Not available

Cub Cadet KM-13025-6002

Piston Ring Set L,.50

$38.99

$

In Stock, only 1 left!

0

19

Cub Cadet KM-13251-6022

Connecting Rod Assembly
(Superseded to KM-13251-2086)

$

$

Not available

Cub Cadet KM-13251-6026

Connecting Rod Assembly, U/S .50

$

$

Not available

20

Cub Cadet KM-49119-2130

Crankshaft Assembly

$430.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KM-59051-2112

Spur Gear

$40.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-92002-2053

Bolt

$6.99

$

In Stock, only 1 left!

0

23

Cub Cadet KM-92036-021

Snap Ring

$0.99

$

In Stock, Qty 12

0

24

Cub Cadet KM-551A0408

Dowel Pin

$0.99

$

In Stock, only 3 left!

0
