365Z (B 2552 CE) (5901278) - Snapper 52" Zero-Turn Mower, 25hp CE Guarding - CE Models S/N: 2017033695 & Above Parts Diagram

52" Zero-Turn Mower, 25hp

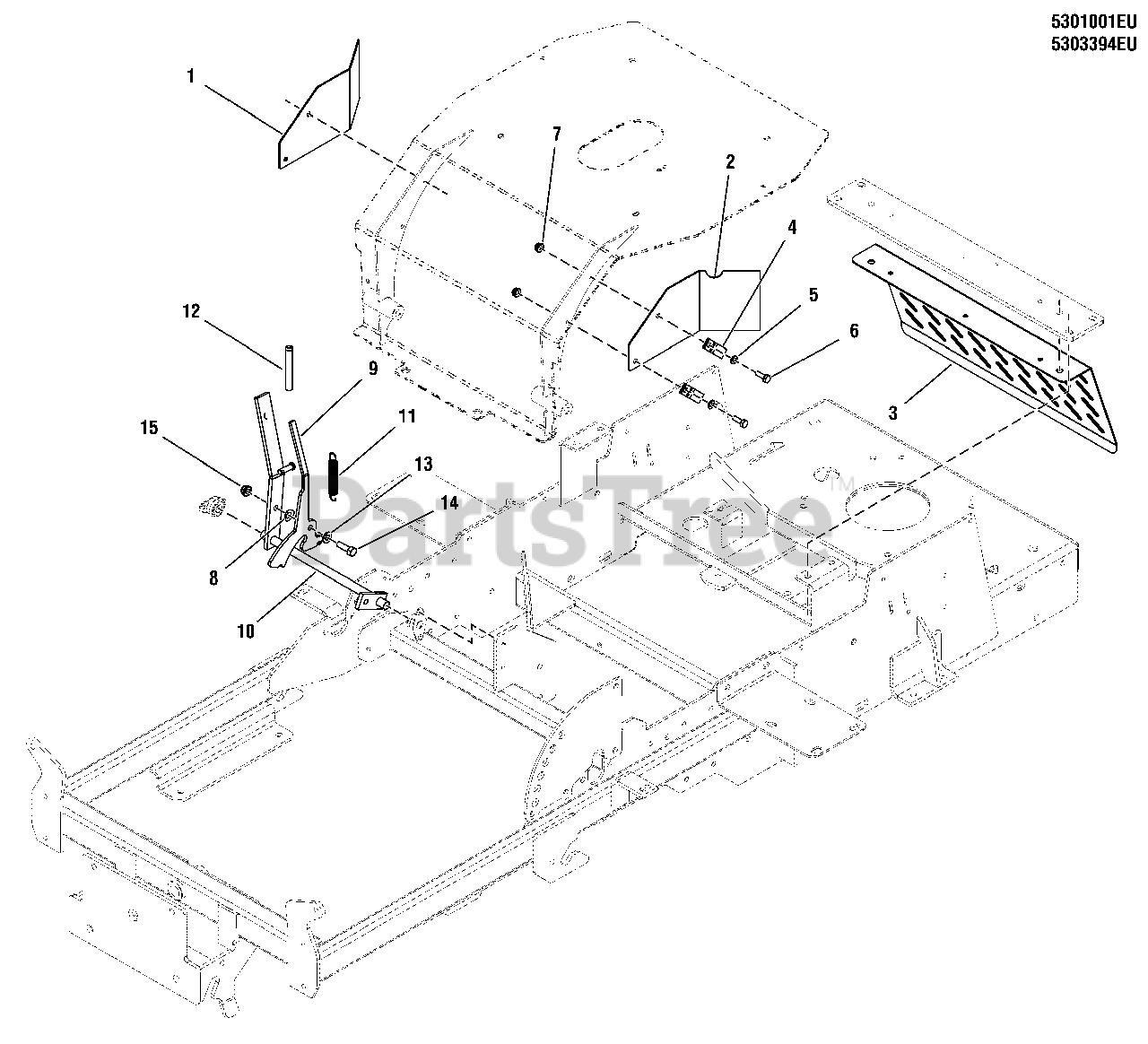

CE Guarding - CE Models S/N: 2017033695 & Above Parts Diagram

  • Title

1

Snapper 5413337D

GUARD, FRONT SEAT PLATE, RH - CONZ CE

$

$

Currently unavailable

2

Snapper 5413338D

GUARD, FRONT SEAT PLATE, LH - CONZ CE

$

$

Currently unavailable

3

Snapper 5413339D

GUARD, REAR SEAT SUPPORT - CONZ CE

$

$

Currently unavailable

4

Snapper 5101932

CLAMP, VINYL COATED, 5/8 ID
(Superseded to 5101932YP)

$8.49

$

Usually ships in 2-12 days

0

5

Snapper 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 5025010X6

BOLT, 1/4-20, GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

8

Snapper 5023202

WAVE WASHER, 10MM
(Superseded to 5023202SM)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 5413497D

LEVER, BREAK, CONZ - EU

$

$

Currently unavailable

10

Snapper 5413516D

WELD, SHAFT, BRAKE HANDLE, CONZ - EU

$

$

Currently unavailable

11

Snapper 5020639

SPRING-EXT, .500ODX3.050LGX.058WR
(Superseded to 5020639SM)

$33.99

$

Usually ships in 2-12 days

0

12

Snapper 5023198

COVER, VINYL HANDLE
(Superseded to 5023198SM)

$4.99

$

In Stock, Qty 12

0

13

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Snapper 5025011X8

BOLT, 5/16-18, GD5
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

15

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
