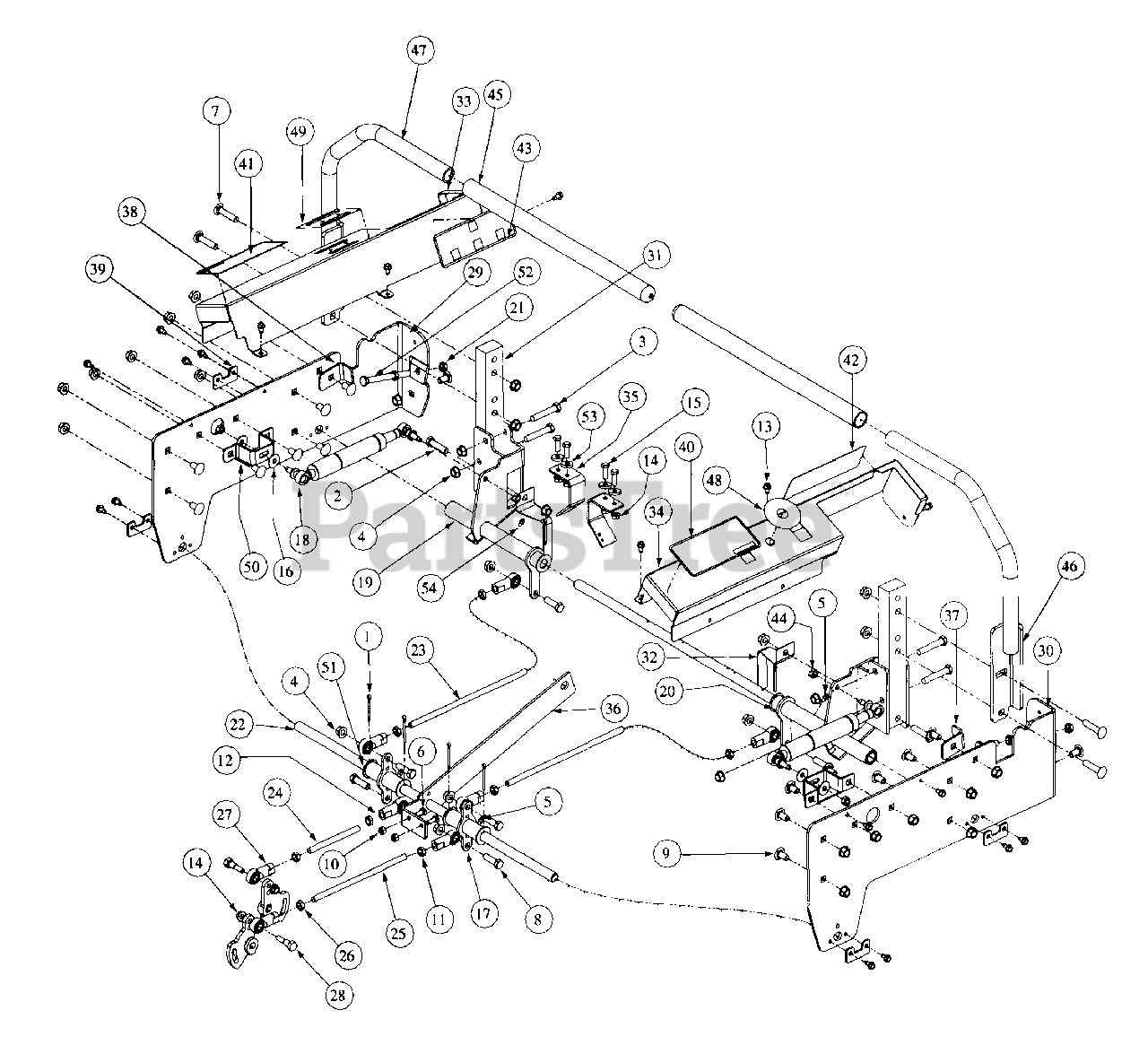

3660 (53AB5B8J100) - Cub Cadet 60" Zero-Turn Mower Control Assembly Parts Diagram

60" Zero-Turn Mower

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 00003107

Cotter Pin 5/32 x 1-1/2
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00010980

HHCS, 3/8-16, 2.00

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00011861

HHCS, 3/8-16, 2.25
(Superseded to 710-0859)

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.49

$

In Stock, Qty 18

0

6

Cub Cadet 01000338

HHCS, 1/4-20, .620
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 01000364

Hex Carriage Screw, 3/8-16, 1.75
(Superseded to 710-0560)

$6.49

$

In Stock, Qty 18

0

8

Cub Cadet 01000369

HHCS, 3/8-16, 1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75
(Superseded to 710-3178)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01000446

Lock Hex Nut, 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01000450

Hex Jam Nut, 3/8-24
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01000451

B/Joint, 3/8-24, Right Hand Female
(Superseded to 723-04080)

$38.99

$

In Stock, only 2 left!

0

13

Cub Cadet 01000628

Screw, TT, 1/4-20, 0.5, Hex I
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 01000635

Nut, Lock, Hex Flange, 5/16-18
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet 00013406

Hex, Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 01000960

Belle Washer, .325 x .930 x .045
(Superseded to 936-0425)

$

$

Not available

17

Cub Cadet 01004816

Belle Crank Assembly

$

$

Not available

17

Cub Cadet 01000308

Bearings
(Superseded to 741-04555)

Note: not shown

$15.99

$

In Stock, Qty 11

0

18

Cub Cadet 01001727

Cylinder Return to Neutral

$247.99

$

In Stock, Qty 9

0

19

Cub Cadet 01004812

Hub Assy, Control LH Bearing

$

$

Not available

19

Cub Cadet 01004265

Bearings

Note: not shown

$19.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01004814

Hub Assy, Control RH Bearing

$

$

Not available

20

Cub Cadet 01004265

Bearings

Note: not shown

$19.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01002980

Shaft Mounting Belle Crank

$

$

Not available

23

Cub Cadet 01002982

Rod Connector 3/8 OD x 10.125

$

$

Not available

24

Cub Cadet 01002983

Rod Connector, 3/8 OD x 4.28 LG LH

$

$

Not available

25

Cub Cadet 01002984

Rod Connector, 3/8 OD x 8.06 LG RH

$

$

Not available

26

Cub Cadet 01002986

Nut, 3/8-24, Jam, LH Third

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 01002987

B/Joint, 3/8-24, LH Female

$

$

Not available

28

Cub Cadet 01002988

Screw, Shoulder Control Rod
(Superseded to 738-05006)

$8.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01004887

Mounting Shaft, Control, Left

$

$

Not available

30

Cub Cadet 01004888

Mounting Shaft, Control, Right

$

$

Not available

31

Cub Cadet 01003009

Mounting Handle

$

$

Not available

32

Cub Cadet 01003011

Lever, Safety Switch

$34.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 01004889

Control Panel, LH
(Superseded to 01003099-4021)

$

$

Not available

34

Cub Cadet 01004890

Control Panel, RH
(Superseded to 01006343-4021)

$111.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01004891

Switch Mounting Bracket, Lapbar
(Superseded to 01003114-0637)

$29.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01004892

Link Mounting Control Shaft, Bracket

$

$

Not available

37

Cub Cadet 01004893

Stop, RH
(Superseded to 01005771)

$

$

Not available

38

Cub Cadet 01004894

Stop, LH
(Superseded to 01005772)

$

$

Not available

39

Cub Cadet 01003591

Holder Shaft, Park Brake

$34.99

$

In Stock, only 1 left!

0

40

Cub Cadet 01003449

Decal, Right Hand Console

$32.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01003450

Decal, Left Hand Console

$20.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 01003451

Decal Right Hand Control

$

$

Not available

43

Cub Cadet 01003452

Decal, Left Hand Control

$28.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 01003561

Nut, Hex, Center Lock, M8

$3.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 01003715

Grip, 1.0

$

$

Not available

46

Cub Cadet 01004896

Lapbar, Weldment, Right Handle

$

$

Not available

47

Cub Cadet 01004897

Lapbar, Weldment, Left Handle

$

$

Not available

48

Cub Cadet 01003857

Label, Ignition, 2.5 Diameter

$

$

Not available

49

Cub Cadet 01003858

Label, Control, Throttle and Choke

$

$

Not available

50

Cub Cadet 01004898

Bracket Assembly, Mount Dampener
(Superseded to 01004000-0637)

$

$

Not available

51

Cub Cadet 01004003

Flat Washer, 5/8 Nylon
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 01004127

HHCS, 3/8-16, 3.00
(Superseded to 710-0521)

$4.99

$

In Stock, Qty 15

0

53

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

54

Cub Cadet 00012226

Fitting Grease 90°.
(Superseded to 737-3004)

$10.99

$

In Stock, Qty 5

0
