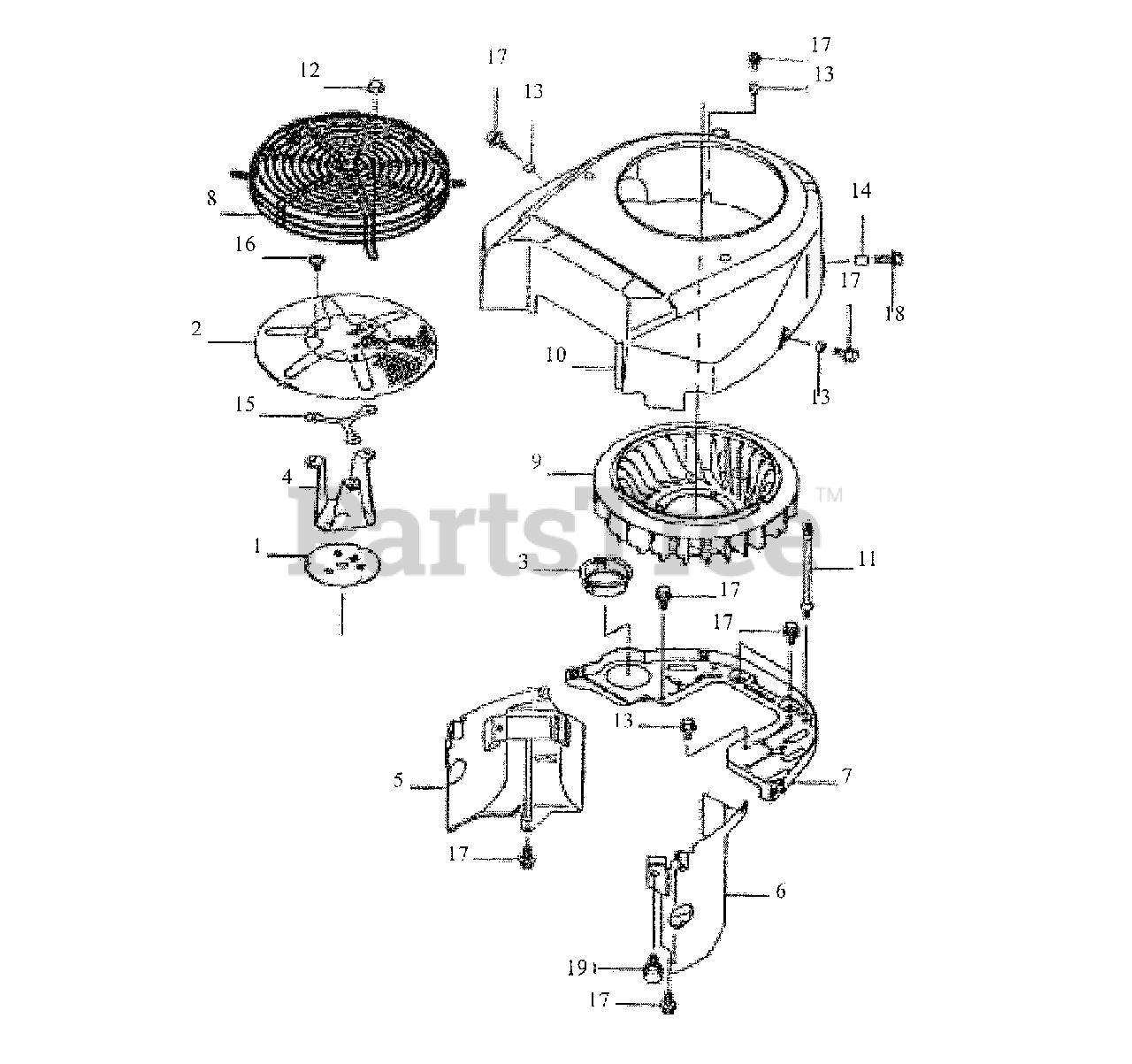

3660 (53AB5B8J100) - Cub Cadet 60" Zero-Turn Mower Kawasaki Cooling Equipment Parts Diagram

60" Zero-Turn Mower

Kawasaki Cooling Equipment Parts Diagram

  • Title

1

Cub Cadet KM-13270-7007

Plate

$5.99

$

In Stock, Qty 6

0

2

Cub Cadet KM-14037-70089H

Screen

$35.99

$

In Stock, Qty 11

0

3

Cub Cadet KM-14091-7002

Cover

$3.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-23062-7005

Bracket-Comp
(Superseded to KM-23062-7022)

$12.99

$

In Stock, Qty 7

0

5

Cub Cadet KM-49089-7004

Shroud-Engine

$27.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-49089-7005

Shroud-Engine

$29.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-49089-7006

Shroud-Engine
(Superseded to KM-49089-7049)

$34.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-55020-7002

Guard
(Superseded to KM-55020-7007)

$53.99

$

In Stock, only 1 left!

0

9

Cub Cadet KM-59041-7003

Fan

$22.99

$

In Stock, only 4 left!

0

10

Cub Cadet KM-59066-7004

Housing-Fan

$

$

Not available

11

Cub Cadet KM-92004-2148

Stud
(Superseded to KM-92004-7025)

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet KM-92015-1170

Nut
(Superseded to KM-92210-0003)

$0.99

$

In Stock, Qty 20+

0

13

Cub Cadet KM-92026-7001

Spacer 6.2 x 7.9 x5

$2.49

$

In Stock, only 3 left!

0

14

Cub Cadet KM-92026-7003

Spacer 6.5x7.9x10.5

$

$

Not available

15

Cub Cadet KM-92026-7007

Spacer

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92151-7009

Bolt, 6 x 10 mm
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

17

Cub Cadet KM-130G0612

Bolt Flange
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

18

Cub Cadet KM-130B0620

Bolt Flange

$

$

Not available

19

Cub Cadet KM-130B0816

Bolt Flange
(Superseded to KM-130BA0816)

$1.99

$

In Stock, Qty 5

0

$

$

Not available

$

$

Not available
