3660 (53AB5B8J100) - Cub Cadet 60" Zero-Turn Mower Kohler Engine Controls Parts Diagram

60" Zero-Turn Mower

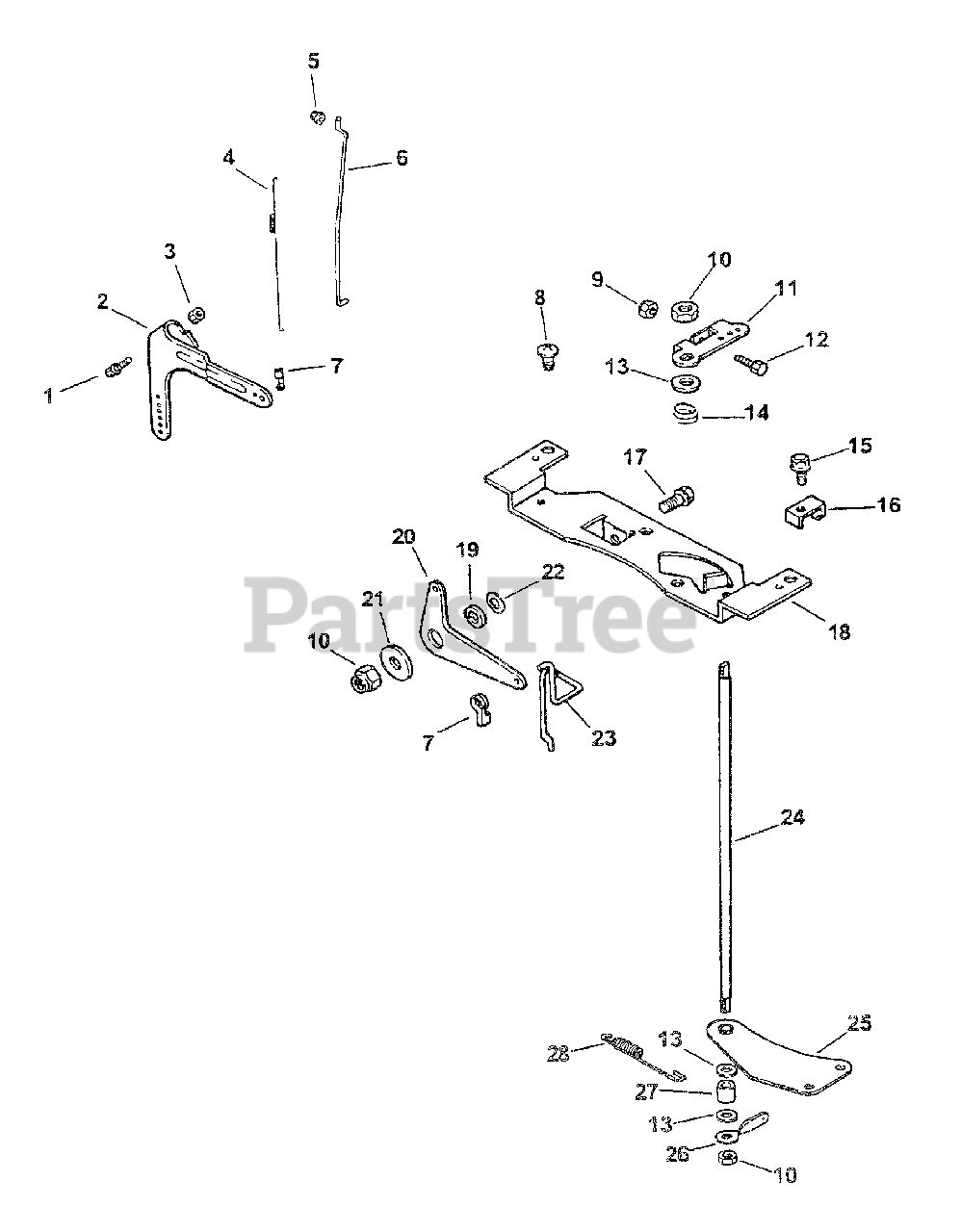

Kohler Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-M-0642025

Screw, Hex Flange
(Superseded to KH-M-642025-S)

$2.49

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-090-14

Lever, Governor

$

$

Not available

3

Cub Cadet KH-M-641060-S

Nut, Hex Flange

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

5

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-079-04

Linkage, Throttle

$

$

Not available

7

Cub Cadet KH-25-158-11

Bushing, Throttle Linkage

$

$

Not available

8

Cub Cadet KH-24-086-06

Screw, Phillips Head

$

$

Not available

9

Cub Cadet KH-M-446030-S

Nut, Hex

$2.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-M-647060

Nut, Hex Lock

$

$

Not available

11

Cub Cadet KH-24-090-09

Lever, Throttle Control

$

$

Not available

12

Cub Cadet KH-M-401030

Screw, Hex Cap

$

$

Not available

13

Cub Cadet KH-X-25-72

Washer, Plain 1/4"

$

$

Not available

14

Cub Cadet KH-24-089-20

Spring, Throttle Shaft

$

$

Not available

15

Cub Cadet KH-M-545016-S

Screw, Hex Flange
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-M-639016-S

Screw, Hex Flange

$2.49

$

In Stock, only 4 left!

0

18

Cub Cadet KH-24-126-59

Bracket, Control
(Superseded to KH-24-126-219-S)

$37.99

$

In Stock, only 2 left!

0

19

Cub Cadet KH-25-431-01

Spacer

$

$

Currently unavailable

20

Cub Cadet KH-24-090-20

Lever, Choke

$

$

Not available

21

Cub Cadet 736-0173

Washer, Plain 1/4"

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet KH-277341

Washer, Spring 3/8"

$

$

Not available

23

Cub Cadet KH-24-079-10

Linkage, Choke

$

$

Not available

24

Cub Cadet KH-24-144-11

Shaft, Throttle

$

$

Not available

25

Cub Cadet KH-24-126-17

Bracket, Throttle Shaft
(Superseded to KH-24-126-162-S)

$8.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-24-090-12

Lever, Throttle Control

$

$

Not available

27

Cub Cadet KH-24-112-10

Spacer

$

$

Not available

28

Cub Cadet KH-24-089-15

Spring, Governor

$

$

Not available
