3660 (53AB5B8J100) - Cub Cadet 60" Zero-Turn Mower Kohler Oil Pan / Lubrication Parts Diagram

60" Zero-Turn Mower

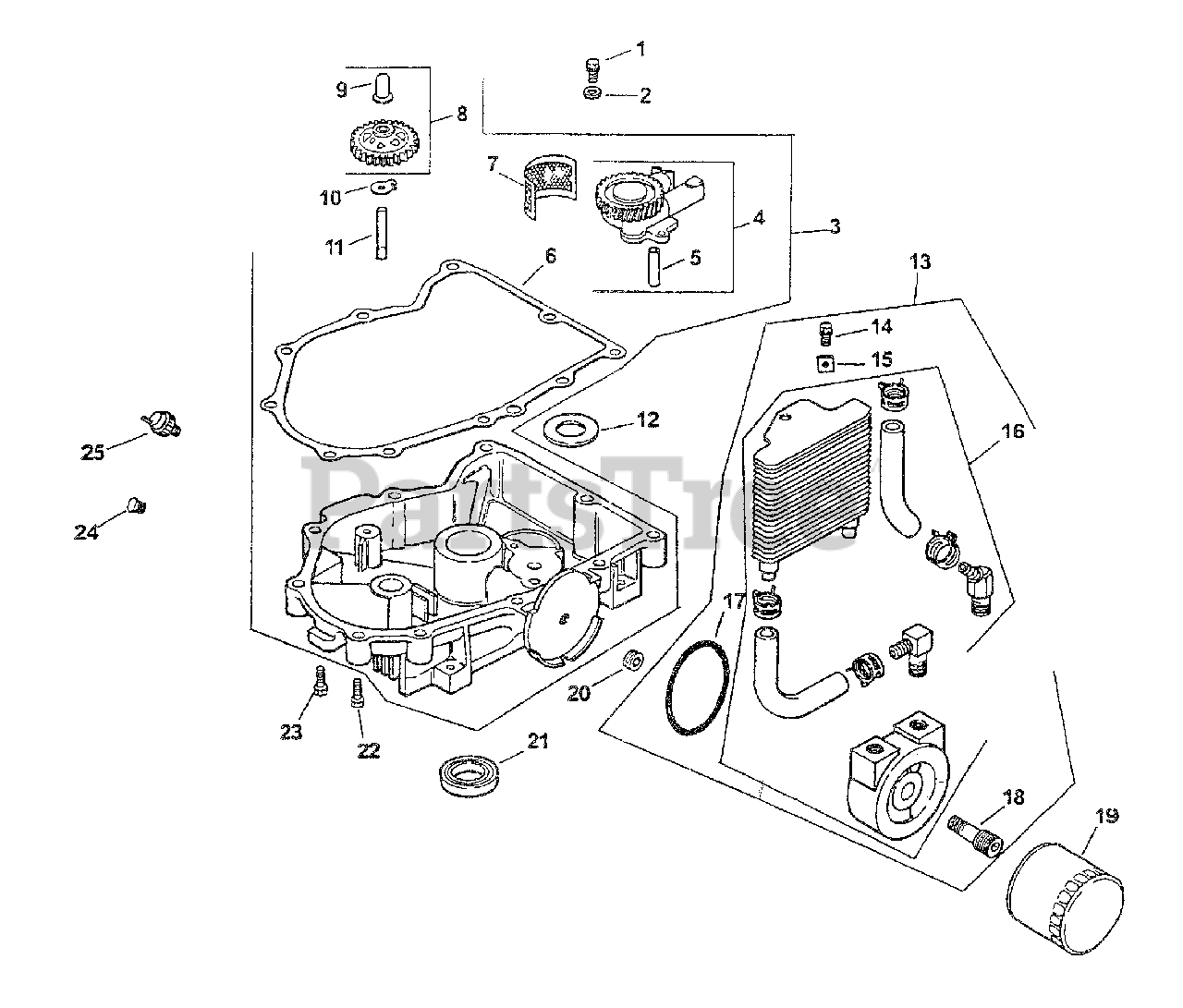

Kohler Oil Pan / Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-M-645025-S

Screw, Hex Flange
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, Qty 12

0

2

Cub Cadet KH-M-631005

Washer, Plain 6mm

$

$

Not available

3

Cub Cadet KH-24-755-59-S

Kit, Oil Pan w/Gaskets
(Superseded to KH-24-755-128-S)

$337.99

$

In Stock, Qty 6

0

4

Cub Cadet KH-24-393-08

Oil Pump Assembly
(Superseded to KH-24-393-53-S)

$

$

Not available

5

Cub Cadet KH-24-123-05

Tube, Oil Pickup
(Superseded to KH-24-381-11-S)

$

$

Not available

6

Cub Cadet KH-24-041-24-S

Gasket, Oil Pan
(Superseded to KH-24-041-66-S)

$24.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-24-162-26-S

Screen, Oil

$17.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-043-12

Kit, Governor Gear

$

$

Not available

9

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

10

Cub Cadet KH-52-448-02

Tab, Locking
(Superseded to KH-24-448-01-S)

$2.49

$

In Stock, only 4 left!

0

11

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

12

Cub Cadet KH-24-422-03-S

Shim, Thrust

$

$

Not available

13

Cub Cadet KH-54-755-14-S

Kit, Oil Cooler
(Superseded to KH-24-755-120-S)

$308.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-086-12

Screw, Hex Cap

$

$

Not available

15

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, only 3 left!

0

16

Cub Cadet KH-24-594-15-S

Oil Cooler - Phenolic
(Superseded to KH-24-594-36-S)

$220.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-153-17-S

O-Ring
(Superseded to KH-24-153-21-S)

$5.99

$

In Stock, Qty 10

0

18

Cub Cadet KH-24-136-05-S

Nipple, Oil Filter
(Superseded to KH-24-136-08-S)

$12.99

$

In Stock, only 4 left!

0

19

Cub Cadet KH-12-050-08

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

20

Cub Cadet KH-X-75-32

Plug, Hex 3/8"
(Superseded to KH-25-139-62-S)

$3.49

$

In Stock, only 2 left!

0

21

Cub Cadet KH-52-032-08-S

Seal, Oil (P.T.O. End)
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 20+

0

22

Cub Cadet KH-24-086-16

Screw, Hex Flange
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 20+

0

23

Cub Cadet KH-24-086-17

Screw, Hex Flange
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 20+

0

24

Cub Cadet KH-52-139-02

Plug, Hex Head 3/8"

$

$

Not available

25

Cub Cadet KH-25-099-24-S

Switch, Oil Pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, Qty 6

0

Cub Cadet KH-25-113-05

Decal, Oil Sentry

Note: Not Shown

$

$

Not available

Cub Cadet KH-24-113-25-S

Decal, Oil Cooler

Note: Not Shown

$

$

Not available
