3660 (53AB5B8J100) - Cub Cadet 60" Zero-Turn Mower Lift Assembly Parts Diagram

60" Zero-Turn Mower

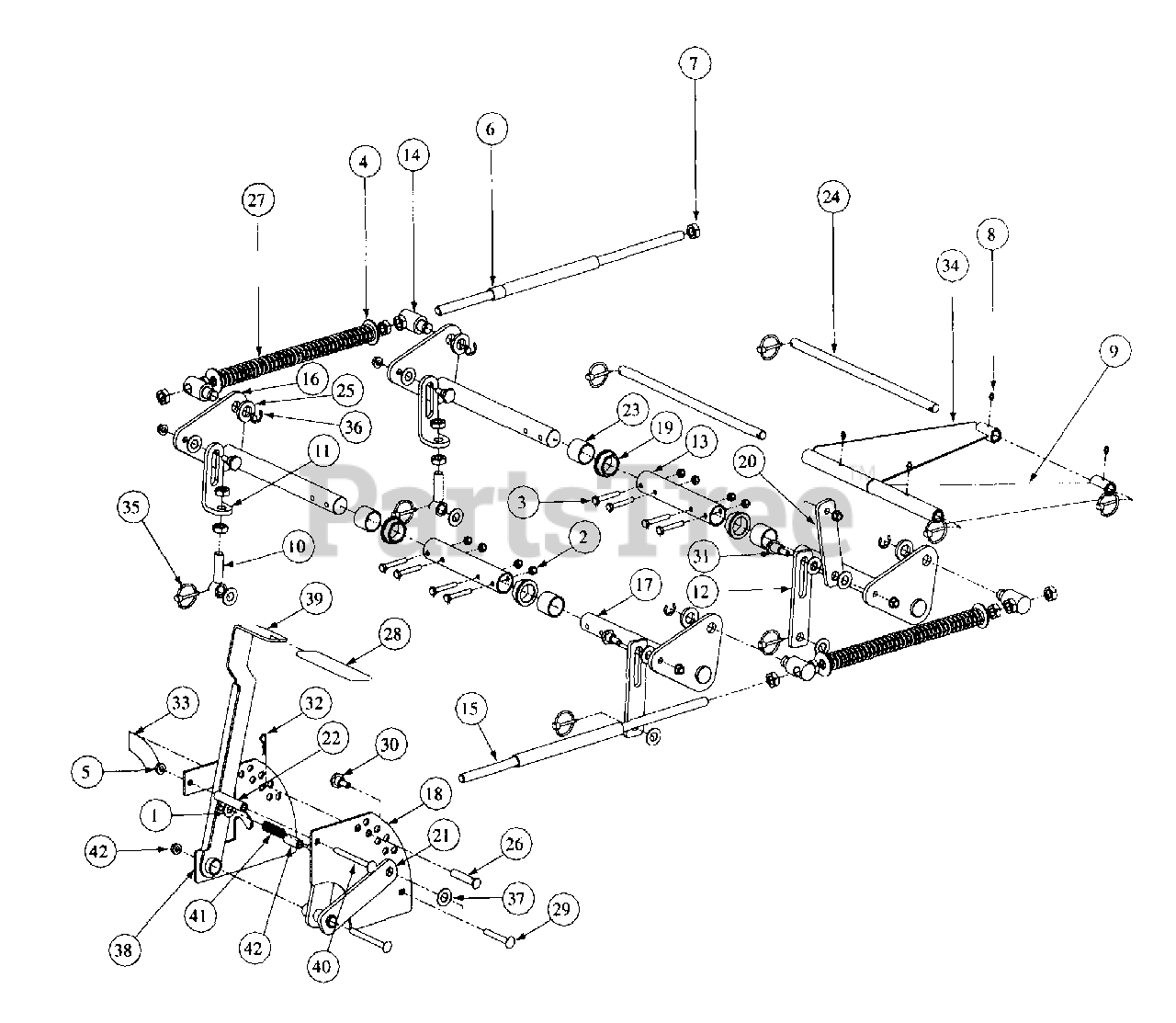

Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 00010958

Flat Washer, SAE, 1/2

$

$

Not available

2

Cub Cadet 00012165

Nut, 5/16-18, Nylock

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00013198

HHCS, 5/16-18 x 2
(Superseded to 710-3103)

$4.99

$

In Stock, Qty 16

0

4

Cub Cadet 00013432

Flat Washer, 5/8, USS

$8.99

$

In Stock, only 3 left!

0

5

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00030918

Hose, 5/8" PVC, Clear Reinforced in ft.

$

$

Not available

7

Cub Cadet 00035632

Jam Nut, 5/8-11
(Superseded to 912-3015)

$4.99

$

In Stock, Qty 19

0

8

Cub Cadet 00060078

Grease Fitting, 1/4-28, x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

9

Cub Cadet 01004827

Brace Assembly, Right Hand Bearing Lift

$

$

Not available

Cub Cadet 01000308

Bearings
(Superseded to 741-04555)

$17.99

$

In Stock, only 2 left!

0

Cub Cadet 01004265

Bearings

$22.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 01001744

Eye Bolt, 5/8 ID
(Superseded to 710-05355)

$18.99

$

In Stock, only 3 left!

0

11

Cub Cadet 01004917

Mounting Link, 5/8 ID Eye Bolt
(Superseded to 01001746-0637)

$36.99

$

In Stock, only 2 left!

0

12

Cub Cadet 01004918

Deck Link

$

$

Not available

13

Cub Cadet 01004919

Holder, Shaft Lift

$

$

Not available

14

Cub Cadet 01001855

Ferrule Lift

$62.99

$

In Stock, only 1 left!

0

15

Cub Cadet 01001857

Rod, Connector Lift

$46.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01004920

Weldment, Bellcrank Lift Right Hand

$

$

Not available

17

Cub Cadet 01004921

Weldment, Bellcrank Lift Left Hand

$

$

Not available

18

Cub Cadet 01004922

Plate Index Lift

$

$

Not available

19

Cub Cadet 01001930

Bearing Flange, Hex, 1.25

$20.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01004923

Link, Lift, Index To Bellcrank

$

$

Not available

21

Cub Cadet 01004924

Weldment, Lift Handle

$213.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01004080

Spacer, .39 x ID x .63 OD x 2.878

$18.99

$

In Stock, only 1 left!

0

23

Cub Cadet 01001973

Spacer Lift Frame

$

$

Not available

24

Cub Cadet 01002586

Rod Mount Front Lift Link

$49.99

$

In Stock, only 2 left!

0

25

Cub Cadet 01003123

Spacer, .812 ID x .268 Long
(Superseded to 750-05553)

$10.99

$

In Stock, Qty 20+

0

26

Cub Cadet 01003284

Clevis Pin, .500 Dia. x 2.625 Long

$

$

Not available

27

Cub Cadet 01003318

Spring, Compression, Lift

$

$

Not available

28

Cub Cadet 01003477

Grip, Lift Handle

$

$

Not available

29

Cub Cadet 01003534

Carriage Bolt, 3/8-16, 2.75

$

$

Not available

30

Cub Cadet 01003535

Shoulder Screw, .625 OD x .437 Long
(Superseded to 738-1127B)

$7.99

$

In Stock, Qty 14

0

31

Cub Cadet 01003536

Shoulder Screw, .625 OD x .830 Long
(Superseded to 738-05007)

$9.49

$

In Stock, Qty 20+

0

32

Cub Cadet 01003537

Cotter Pin, .148 x 3.00

$

$

Not available

33

Cub Cadet 01003859

Decal, Height Indicator

$

$

Not available

34

Cub Cadet 01004829

Brace Assembly, Left Hand Bearing Lift

$

$

Not available

Cub Cadet 01000308

Bearings
(Superseded to 741-04555)

$17.99

$

In Stock, only 2 left!

0

Cub Cadet 01004265

Bearings

$22.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01003993

Linch Pin, 3/16 Dia
(Superseded to 753-04070)

$10.99

$

In Stock, Qty 16

0

36

Cub Cadet 01003994

Clip E, 3/4 Dia

$7.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 01004003

Flat Washer, 5/8 Nylon
(Superseded to 736-04602)

$4.49

$

In Stock, Qty 12

0

38

Cub Cadet 01004925

Weldment, Plate, Index, Lift

$

$

Not available

39

Cub Cadet 01004926

Lift, Handle Assembly
(Superseded to 01004974P)

$

$

Not available

40

Cub Cadet 01004390

Screw, Hex Cap, 3/8-16 x 3.75

$

$

Not available

41

Cub Cadet 01004063

Spring, .63 OD x 2.00 Long

$

$

Not available

42

Cub Cadet 00012173

Nut, Lock, Nylon Insert, 3/8-16
(Superseded to 712-04065)

$4.49

$

In Stock, Qty 20+

0

$

$
